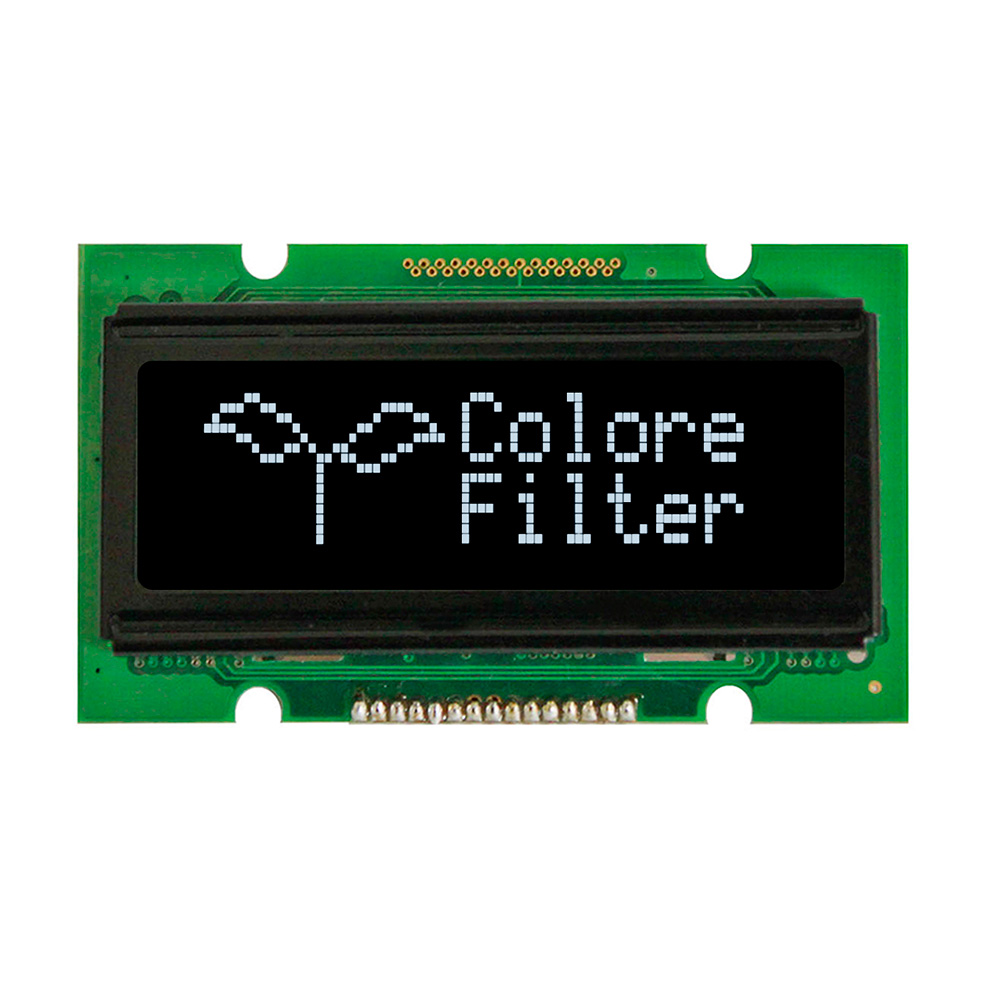

WEG007616AWPP5N00000

PMOLED 1.7'' Graphic 76x16, White color, COB, 5V, Interface 6800, WS0010 IC, Frame, Glare

NOT RECOMMENDED FOR NEW PROJECTS

Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.



DESCRIPTION

When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the Winstar display OLED COB graphic item is a good choose. This 1.7” OLED module is built-in WS0010 IC which has outline dimension of 55.7 x 32 mm and visible portion of the OLED measures 1.7" diagonal and contains 76x16 pixels same as Winstar STN LCD WH1202A. It is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. This model OLED display has different interfaces available, default 6800 or optional 8080 and SPI



DRAWING

1.7" OLED, OLED Small Display, OLED 76x16 - WEG007616A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC



Mechanical Data

ItemDimensionUnit
Dot Matrix 76 x 16 Dots
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 41.7 x 11.1 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Panel Type OLED , Monochrme
Duty 1/16
IC WS0010
Interface 6800, option 8080, SPI
Size 1.7 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8xVDD VDD V
Input Low Volt. VIL GND 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V 38 45 mA


SKU: WEG7616W#A00-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.60
€11.50
€11.00
€10.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€15.60 excl tax

NOT RECOMMENDED FOR NEW PROJECTS

Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.



DESCRIPTION

When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the Winstar display OLED COB graphic item is a good choose. This 1.7” OLED module is built-in WS0010 IC which has outline dimension of 55.7 x 32 mm and visible portion of the OLED measures 1.7" diagonal and contains 76x16 pixels same as Winstar STN LCD WH1202A. It is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. This model OLED display has different interfaces available, default 6800 or optional 8080 and SPI



DRAWING

1.7" OLED, OLED Small Display, OLED 76x16 - WEG007616A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC



Mechanical Data

ItemDimensionUnit
Dot Matrix 76 x 16 Dots
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 41.7 x 11.1 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Panel Type OLED , Monochrme
Duty 1/16
IC WS0010
Interface 6800, option 8080, SPI
Size 1.7 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8xVDD VDD V
Input Low Volt. VIL GND 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V 38 45 mA


Products specifications
Brand Winstar
Size 1.7"
Resolution 76x16
Active Area (mm) 41.70x11.10
Dot Size 0.45x0.60
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC WS0010
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 1.7"
Resolution 76x16
Active Area (mm) 41.70x11.10
Dot Size 0.45x0.60
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC WS0010
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
;
