Replaced by new drop pin compatible version with new IC WS0010-TX // Direct link in 'Related Product' section on the bottom page.

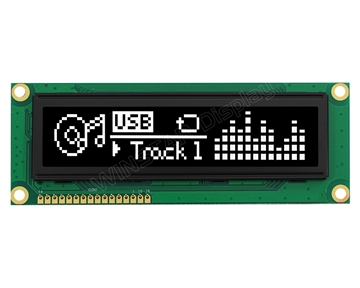

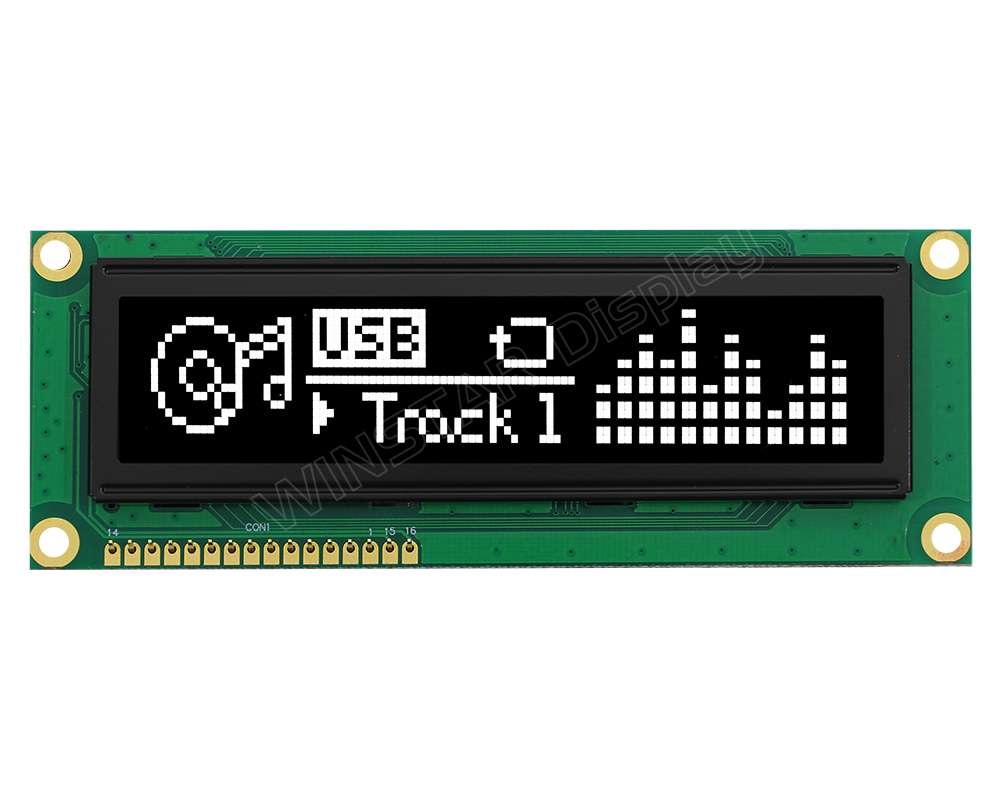

Monochrome Graphic OLED display module which has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This 3.84 inch monochrome 100x16 passive matrix OLED display module features a very wide viewing angle up to 175°. It is COB structure OLED, it is built in with WS0010 IC, default 6800 interface, optional for 8080 and SPI interface.
The supply voltage for logic is 5V, driver duty 1/16, its operating temperature is -40℃~+70℃; and storage temperature ranges are -40℃~+85℃.
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
