WEG10032G#BP5N00100-FC

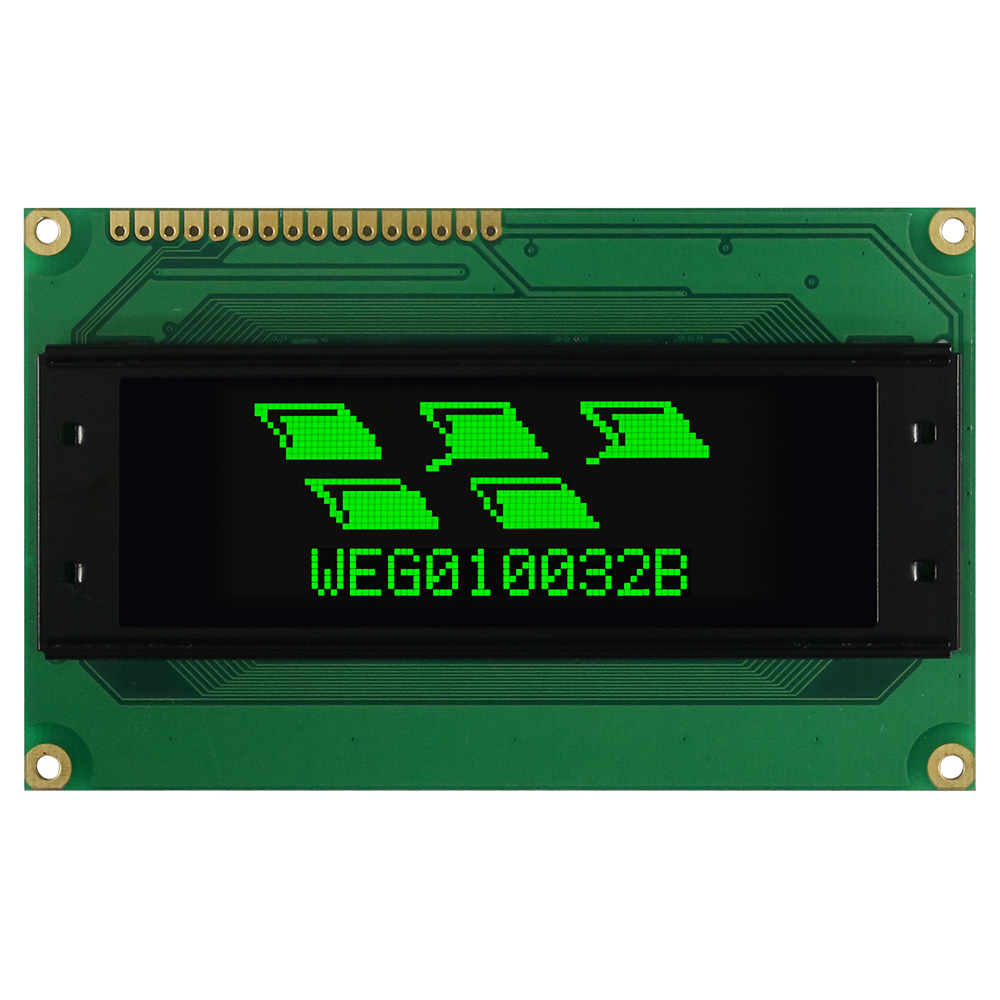

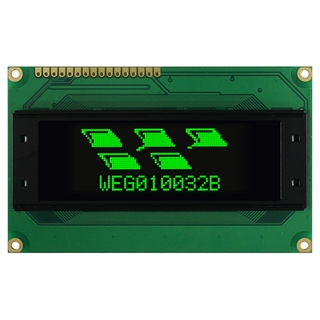

Picture of WEG10032G#BP5N00100-FC Picture of WEG10032G#BP5N00100-FC
PMOLED 2.44'' Graphic 100x32, Green color, COB, 5V, Interface 6800, WS0010-TX IC, Frame (4holes)

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10032G#B08-FC in 'Related Product' section on the bottom page

This OLED displays has the outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm. This OLED is the equivalent Graphic type of WEH2004x#B00-FC. If your applications need Graphic mode to display the contents, you can choose thi version which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4/8 bit 6800 (optional 8080 or serial SPI). The COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.



DRAWING

WEG010032B - 100x32 Graphic OLED Display



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC － No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 CS1 － Chip1 select input pin
16 CS2 － Chip2 select input pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 100 x 32 Dots
Module dimension 98.0 x 60.0 x 10.0(MAX) mm
View area 77.0 x 25.20 mm
Active area 58.95 x 19.15 mm
Dot size 0.54 x 0.55 mm
Dot pitch 0.59 x 0.60 mm
Panel Type OLED, Monochrome
Duty 1/16



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － GND － 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2 VDD V
50% Check Board
Operating Current		 IDD VDD=5V 65 70 75 mA



SKU: WEG10032G#BP5N00100-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€24.60
€19.70
€18.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€24.60 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10032G#B08-FC in 'Related Product' section on the bottom page

This OLED displays has the outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm. This OLED is the equivalent Graphic type of WEH2004x#B00-FC. If your applications need Graphic mode to display the contents, you can choose thi version which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4/8 bit 6800 (optional 8080 or serial SPI). The COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.



DRAWING

WEG010032B - 100x32 Graphic OLED Display



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC － No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 CS1 － Chip1 select input pin
16 CS2 － Chip2 select input pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 100 x 32 Dots
Module dimension 98.0 x 60.0 x 10.0(MAX) mm
View area 77.0 x 25.20 mm
Active area 58.95 x 19.15 mm
Dot size 0.54 x 0.55 mm
Dot pitch 0.59 x 0.60 mm
Panel Type OLED, Monochrome
Duty 1/16



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8 VDD － VDD V
Input Low Volt. VIL － GND － 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2 VDD V
50% Check Board
Operating Current		 IDD VDD=5V 65 70 75 mA



Products specifications
Brand Winstar
Size 2.44"
Resolution 100x32
Active Area (mm) 58.95x19.15
Dot Size 0.54x0.55
Polarizer Glare
Color Green
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.44"
Resolution 100x32
Active Area (mm) 58.95x19.15
Dot Size 0.54x0.55
Polarizer Glare
Color Green
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
