Replaced by new drop pin compatible version with new IC WS0010-TX // Contact us @ firstname.lastname@example.org for more information.

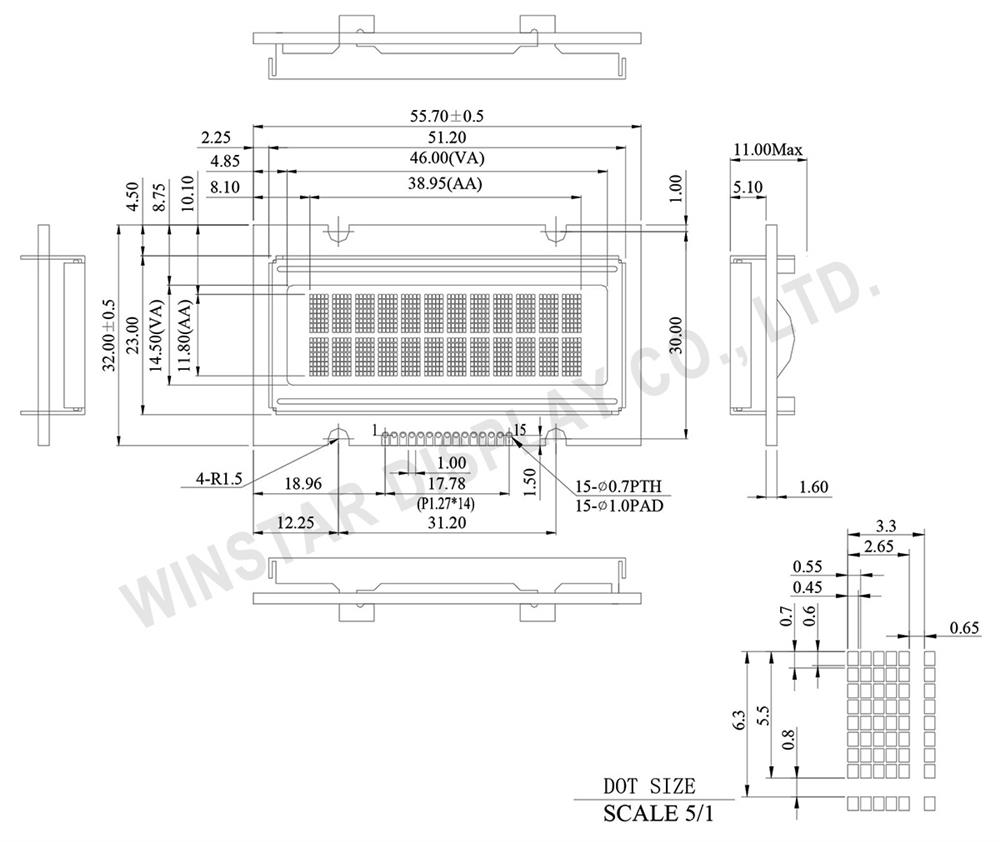

The 12x2 OLED displays has the same outline size, VA size and pin out as Winstar STN LCD item no. WH1202A. This OLED is a Winstar OLED 12x2 standard Characters module. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
