WF101GTYAPLNN0#

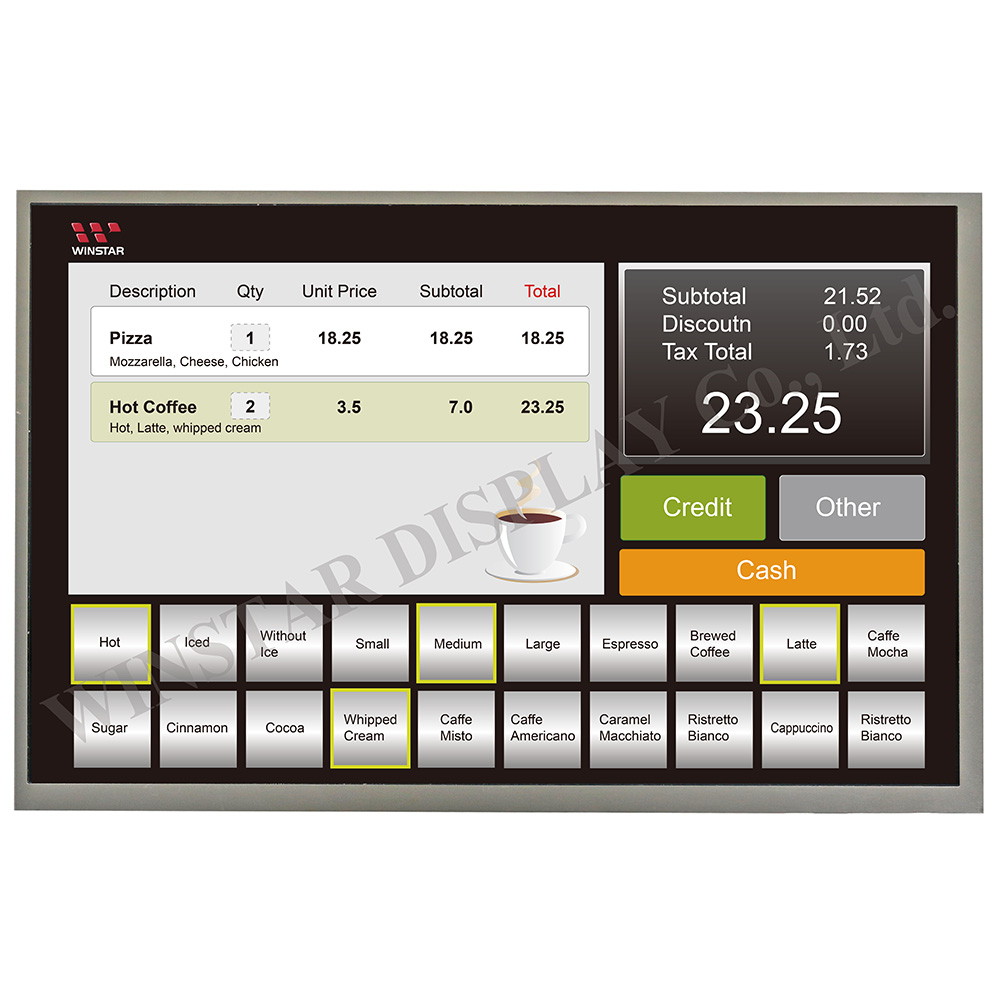

Picture of WF101GTYAPLNN0# Picture of WF101GTYAPLNN0#
TFT 10.1" 1280x800 LCD Panel, Interface LVDS, 350cd/m², Wide View Angle (IPS), No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



LVDS 10.1 inch IPS TFT LCD Panel with high resolution of 1280 x 800 pixels. This 1280x800 TFT LCD Display Panel is featured with IPS panel which having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and having clear images and stable response time.

This module has LVDS interface 40-pin including typical brightness 350 cd/m2, contrast ratio: 800:1 and the operating temperature ranges from -20℃ to +70 ℃ and storage temperature from -20 to +70 ℃. The power supply voltage (VDD) is from 2.3V to 2.7V, typical value 2.5V. It is available with Capacitive Touch Panel (PCAP) and Resistive Touch Panel (RTP) options which are very suitable for HMI (Human-machine Interaction) applications or POS system, etc.

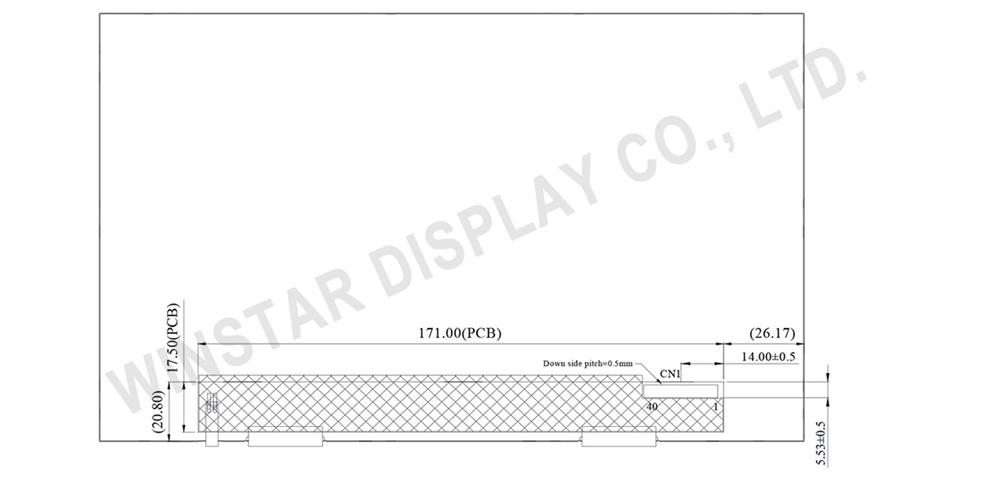

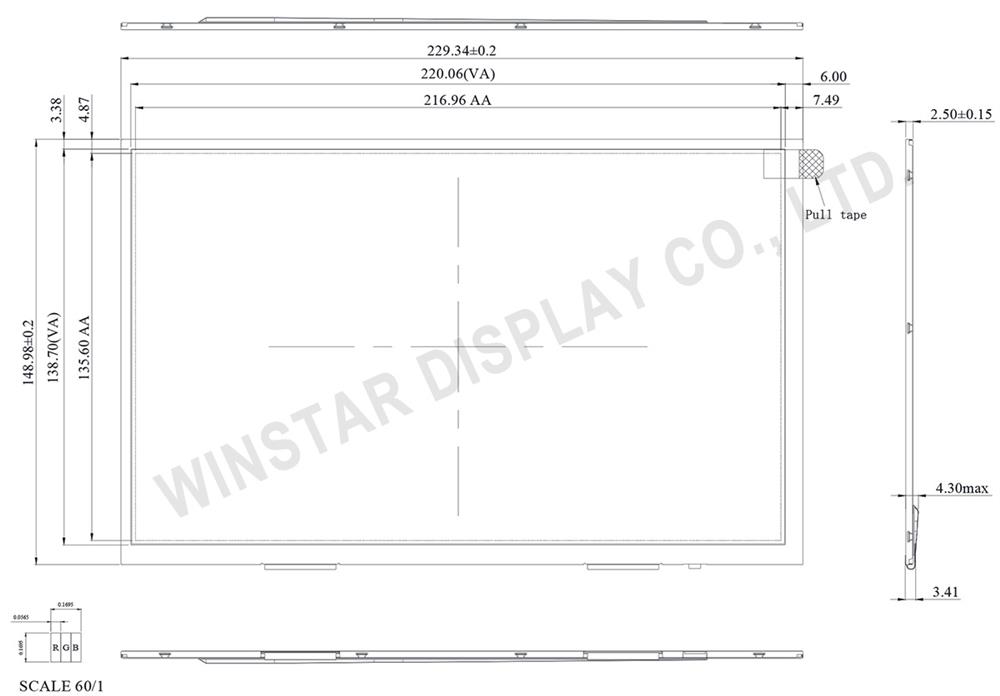

DRAWING

1280x800 LCD Panel, 10.1 LCD Panel, LCD Panel 10.1, IPS TFT LCD - Winstar
1280x800 LCD Panel, 10.1 LCD Panel, LCD Panel 10.1 - Winstar Display

SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2~3 VDD P Power Supply
4~6 NC - No connection
7 GND P Ground
8 Rxin0- I -LVDS Differential Data Input
9 Rxin0+ I +LVDS Differential Data Input
10 GND P Ground
11 Rxin1- I -LVDS Differential Data Input
12 Rxin1+ I +LVDS Differential Data Input
13 GND P Ground
14 Rxin2- I -LVDS Differential Data Input
15 Rxin2+ I +LVDS Differential Data Input
16 GND P Ground
17 RxCLK- I -LVDS Differential Clock Input
18 RxCLK+ I +LVDS Differential Clock Input
19 GND P Ground
20 Rxin3- I -LVDS Differential Data Input
21 Rxin3+ I +LVDS Differential Data Input
22 GND P Ground
23~24 NC - No connection
25 GND P Ground
26~28 NC - No connection
29 AVDD P Power for Analog Circuit
30 GND P Ground
31~32 LED- P LED Cathode
33~34 NC - No connection
35 VGL P Gate OFF Voltage
36~37 NC - No connection
38 VGH P Gate ON Voltage
39~40 LED+ P LED Anode



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(R GB) × 800 dots
Module dimension 229.34 × 148.98 × 2.5 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED,Normally White
Aspect Ratio 16:9
Electrical Interface (Logic) LVDS
Touch Screen Without touch screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +70 ℃



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 2.3 2.5 2.7 V
AVDD 8.0 8.2 8.4 V
VGH 21.7 22 22.3 V
VGL -7.3 -7 -6.7 V
Input signal voltage VCOM 2.7 3.0 3.3 V
SKU: WF101-1280800GL#0P0B-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€82.40
€74.20
€65.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€82.40 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



LVDS 10.1 inch IPS TFT LCD Panel with high resolution of 1280 x 800 pixels. This 1280x800 TFT LCD Display Panel is featured with IPS panel which having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and having clear images and stable response time.

This module has LVDS interface 40-pin including typical brightness 350 cd/m2, contrast ratio: 800:1 and the operating temperature ranges from -20℃ to +70 ℃ and storage temperature from -20 to +70 ℃. The power supply voltage (VDD) is from 2.3V to 2.7V, typical value 2.5V. It is available with Capacitive Touch Panel (PCAP) and Resistive Touch Panel (RTP) options which are very suitable for HMI (Human-machine Interaction) applications or POS system, etc.



DRAWING

1280x800 LCD Panel, 10.1 LCD Panel, LCD Panel 10.1, IPS TFT LCD - Winstar
1280x800 LCD Panel, 10.1 LCD Panel, LCD Panel 10.1 - Winstar Display

SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2~3 VDD P Power Supply
4~6 NC - No connection
7 GND P Ground
8 Rxin0- I -LVDS Differential Data Input
9 Rxin0+ I +LVDS Differential Data Input
10 GND P Ground
11 Rxin1- I -LVDS Differential Data Input
12 Rxin1+ I +LVDS Differential Data Input
13 GND P Ground
14 Rxin2- I -LVDS Differential Data Input
15 Rxin2+ I +LVDS Differential Data Input
16 GND P Ground
17 RxCLK- I -LVDS Differential Clock Input
18 RxCLK+ I +LVDS Differential Clock Input
19 GND P Ground
20 Rxin3- I -LVDS Differential Data Input
21 Rxin3+ I +LVDS Differential Data Input
22 GND P Ground
23~24 NC - No connection
25 GND P Ground
26~28 NC - No connection
29 AVDD P Power for Analog Circuit
30 GND P Ground
31~32 LED- P LED Cathode
33~34 NC - No connection
35 VGL P Gate OFF Voltage
36~37 NC - No connection
38 VGH P Gate ON Voltage
39~40 LED+ P LED Anode



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(R GB) × 800 dots
Module dimension 229.34 × 148.98 × 2.5 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED,Normally White
Aspect Ratio 16:9
Electrical Interface (Logic) LVDS
Touch Screen Without touch screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +70 ℃



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 2.3 2.5 2.7 V
AVDD 8.0 8.2 8.4 V
VGH 21.7 22 22.3 V
VGL -7.3 -7 -6.7 V
Input signal voltage VCOM 2.7 3.0 3.3 V
Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
