WF35-320240XD#0PW3-FC

TFT 3.5'' 320x240, LCD Module, Interface RGB, 400cd/m², Wide view angle (IPS), Super Extended Temperature, Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

New TFT+CTP Ilitek IC ILI2130 version // Previous TFT+CTP Focaltech IC FT5426 version P/N WF35-320240XD#0P2-FC



3.5 inch IPS TFT which is featured with resolution 320x240 pixels. This IPS TFT-LCD module has built in with ST7272A driver IC; it supports 24-bit RGB interface. This module has brightness 400 nits (typical value), aspect ratio 4:3, contrast ratio 800 (typical value), normally black LCD type, glare surface glass.

This 3.5 inch TFT-LCD is an IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Projected Capacitive Touch Panel (PCAP) on board. Operating temperatures from –30℃ to +85℃.



SKU: WF35-320240XD#0PW3-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€45.70
€38.10
€32.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€45.70 excl tax

DESCRIPTION

New TFT+CTP Ilitek IC ILI2130 version // Previous TFT+CTP Focaltech IC FT5426 version P/N WF35-320240XD#0P2-FC



3.5 inch IPS TFT which is featured with resolution 320x240 pixels. This IPS TFT-LCD module has built in with ST7272A driver IC; it supports 24-bit RGB interface. This module has brightness 400 nits (typical value), aspect ratio 4:3, contrast ratio 800 (typical value), normally black LCD type, glare surface glass.

This 3.5 inch TFT-LCD is an IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Projected Capacitive Touch Panel (PCAP) on board. Operating temperatures from –30℃ to +85℃.

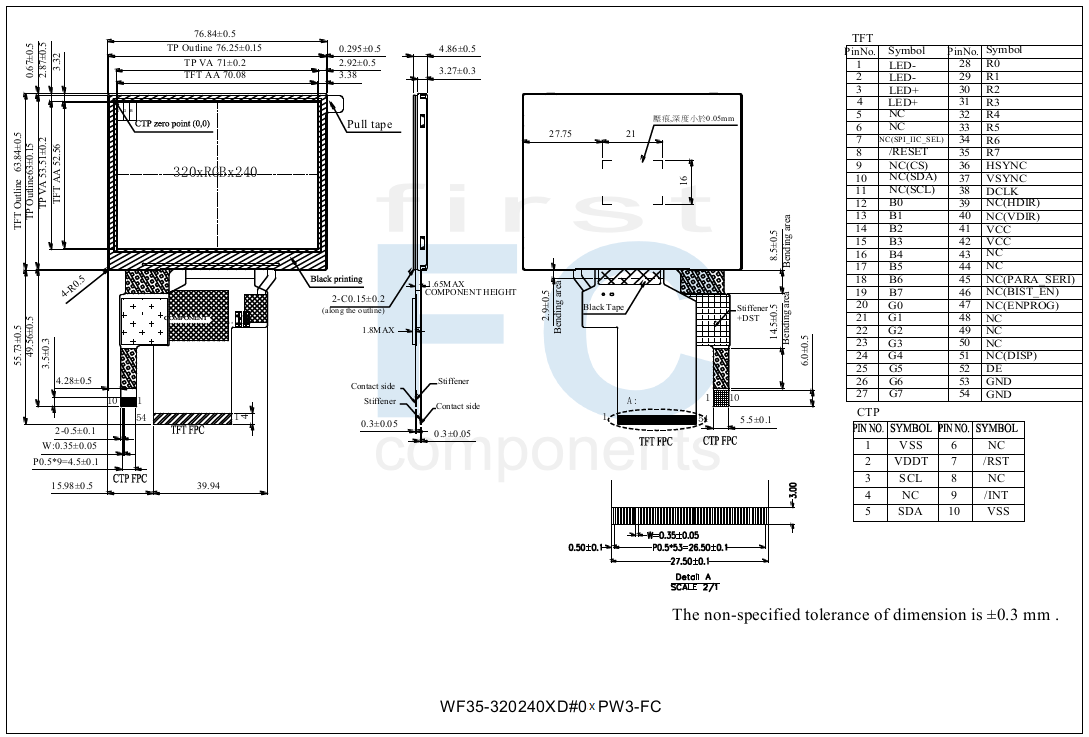

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~85
Display Connection FPC per ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~85
Display Connection FPC per ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
