WF43-480272W816D#0SP0-FC

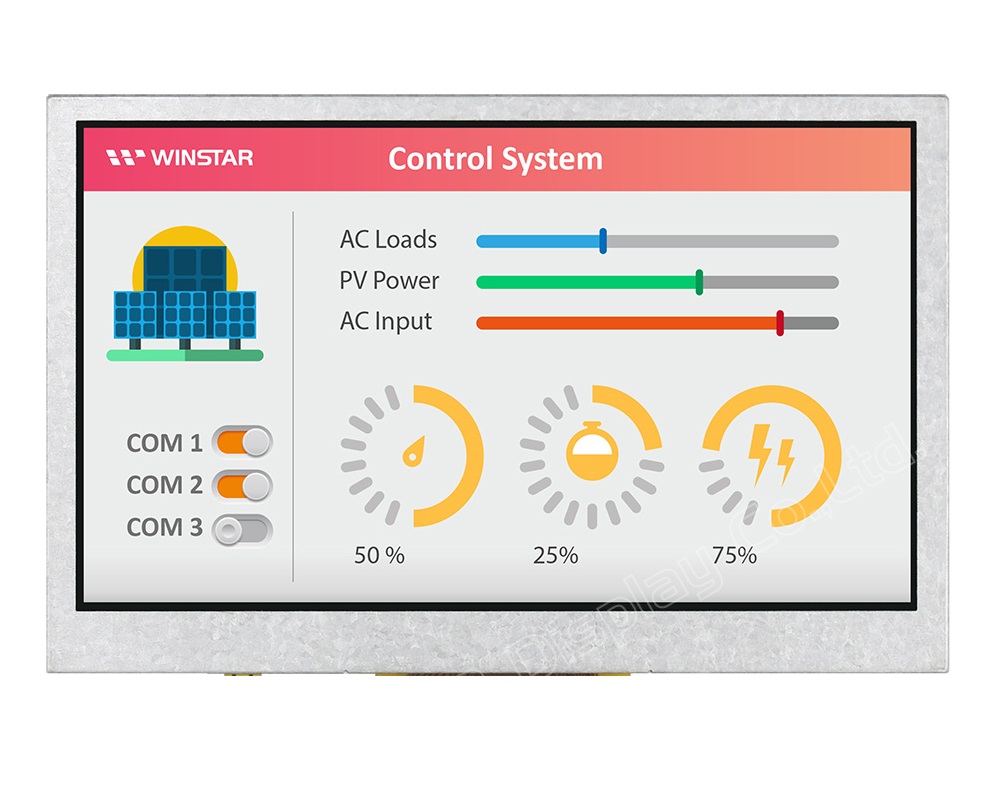

Picture of WF43-480272W816D#0SP0-FC Picture of WF43-480272W816D#0SP0-FC
TFT 4.3'' 480x272, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), Wide view angle (IPS), High brightness 1000cd/m², No touch

DESCRIPTION

4.3 inch TFT LCD Display which is Winstar extended model with SSD1963 controller board plus a 36 pin-out connector on board. The model is available in 8080 family MPU 8 bit or 16 bit interface option and pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  This 4.3" TFT LCD panel is feature with Glare coating surface panel having benefited of less-reflective.

This serie has Solomon SSD1963 IC which has the traditional inputs and drive TFT by VESA signal. Therefore, there is no need of T-COM circuit on board. Besides, we have integrated all functions including TFT connection, backlight driver, and touch panel into only one connection.



DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits mode, this pin is NC)
16 DB9 Data bus (When select 8bits mode, this pin is NC)
17 DB10 Data bus (When select 8bits mode, this pin is NC)
18 DB11 Data bus (When select 8bits mode, this pin is NC)
19 DB12 Data bus (When select 8bits mode, this pin is NC)
20 DB13 Data bus (When select 8bits mode, this pin is NC)
21 DB14 Data bus (When select 8bits mode, this pin is NC)
22 DB15 Data bus (When select 8bits mode, this pin is NC)
23 NC No connection
24 NC No connection
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28 NC No connection
29 NC No connection
30 NC No connection
31 NC No connection
32 NC No connection
33 VLED- VLED- for B/L LED inverter (GND)
34 VLED- VLED- for B/L LED inverter (GND)
35 VLED+ VLED+ for B/L LED inverter (+3.3V)
36 VLED+ VLED+ for B/L LED inverter (+3.3V)



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 x RGB x 272(TFT) dots
Module dimension 106.7 x 69.6 x 6.95 mm
Active area 95.04 x 53.856 mm
Dot pitch 0.066 x 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction IPS
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WF43-480272W816D#0SP0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€41.90
€34.90
€31.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€41.90 excl tax

DESCRIPTION

4.3 inch TFT LCD Display which is Winstar extended model with SSD1963 controller board plus a 36 pin-out connector on board. The model is available in 8080 family MPU 8 bit or 16 bit interface option and pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  This 4.3" TFT LCD panel is feature with Glare coating surface panel having benefited of less-reflective.

This serie has Solomon SSD1963 IC which has the traditional inputs and drive TFT by VESA signal. Therefore, there is no need of T-COM circuit on board. Besides, we have integrated all functions including TFT connection, backlight driver, and touch panel into only one connection.



DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits mode, this pin is NC)
16 DB9 Data bus (When select 8bits mode, this pin is NC)
17 DB10 Data bus (When select 8bits mode, this pin is NC)
18 DB11 Data bus (When select 8bits mode, this pin is NC)
19 DB12 Data bus (When select 8bits mode, this pin is NC)
20 DB13 Data bus (When select 8bits mode, this pin is NC)
21 DB14 Data bus (When select 8bits mode, this pin is NC)
22 DB15 Data bus (When select 8bits mode, this pin is NC)
23 NC No connection
24 NC No connection
25 CS Chip select
26 RESET Hardware reset
27 DIP ON Display control H: On \ L:Off
28 NC No connection
29 NC No connection
30 NC No connection
31 NC No connection
32 NC No connection
33 VLED- VLED- for B/L LED inverter (GND)
34 VLED- VLED- for B/L LED inverter (GND)
35 VLED+ VLED+ for B/L LED inverter (+3.3V)
36 VLED+ VLED+ for B/L LED inverter (+3.3V)



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 x RGB x 272(TFT) dots
Module dimension 106.7 x 69.6 x 6.95 mm
Active area 95.04 x 53.856 mm
Dot pitch 0.066 x 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction IPS
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
