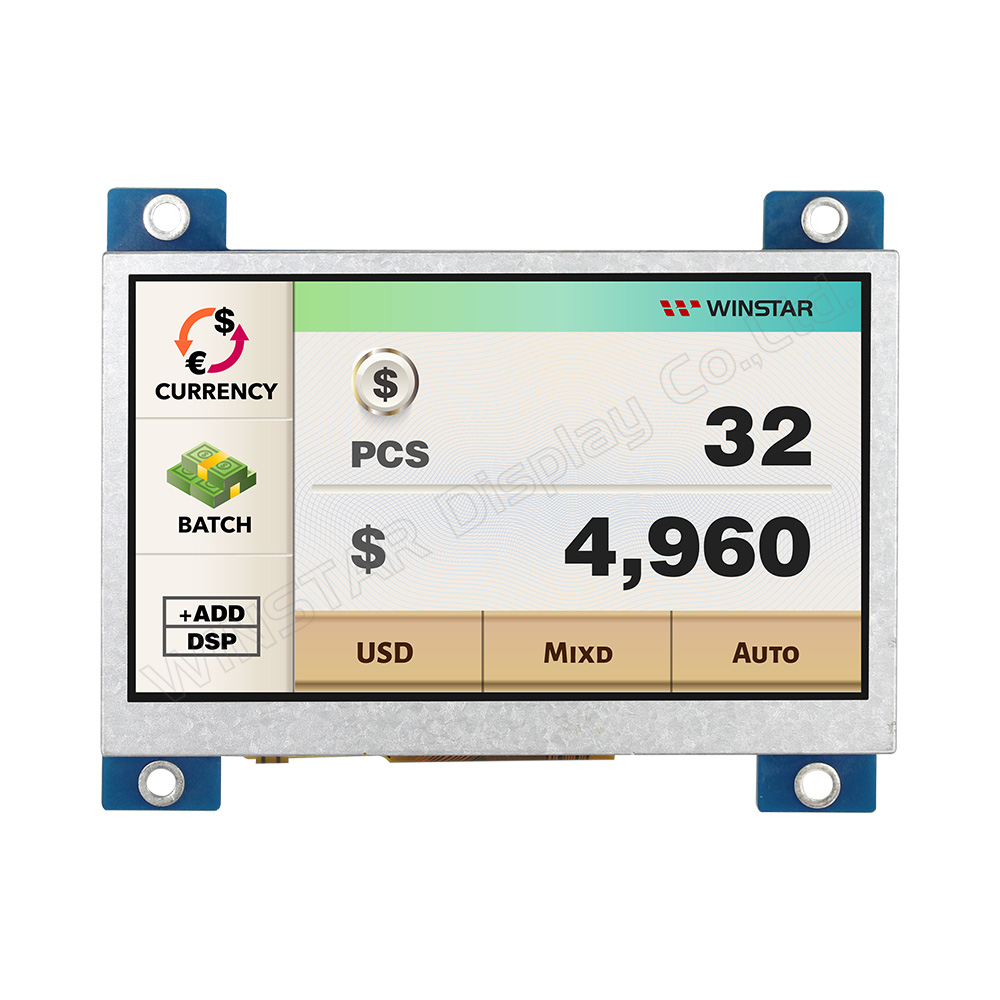

IPS 4.3 inch High Brightness TFT-LCD module; it’s made of resolution 480x272 pixels. It comes with a control board which supports HDMI signal (Only DVI) interface and having a 40-pin GPIO connector on the board; it is designed to make Raspberry Pi usage become easily. The control board on module is featured with four mounting holes which is an easy method for customers to fix modules on their applications. This HDMI series also supports PWM (Pulse Width Modulation) function for adjusting LED backlight brightness. IPS panel which has a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). This TFT model is built in with TFP401 controller IC, it supports HDMI signal (only for DVI) interface, brightness 1000 nits (typical value). We also offer Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) optional. The supply voltage for LCM (VDD) is 5V, glare surface glass, aspect ratio 16:9, contrast ratio 800:1 (typical value). It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.
Note1: The 3.3V supply current is limited; please pay special attention to useNote2:PWM dimming frequency is about 100Hz
I: input, O: output, P: Power
