WF43UTIAEDNG0#

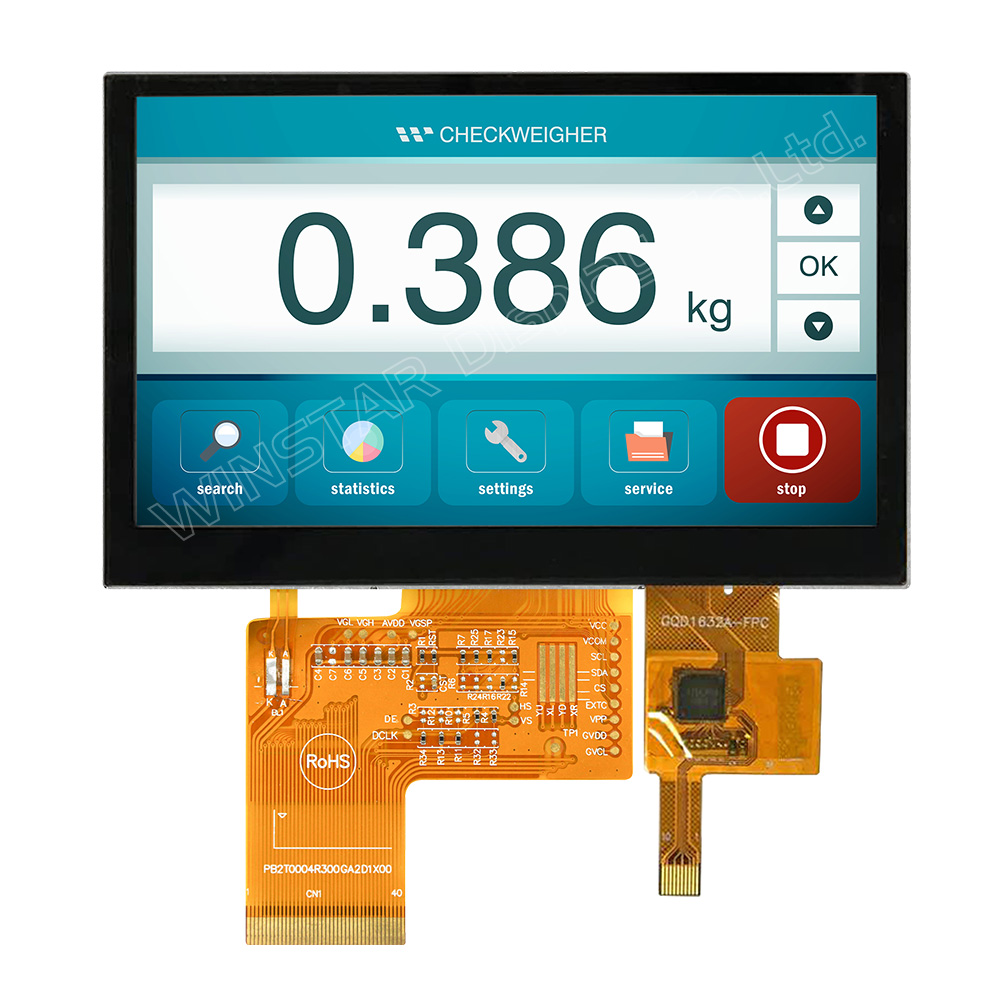

Picture of WF43UTIAEDNG0# Picture of WF43UTIAEDNG0#
TFT 4.3" 480x272 LCD Panel, Interface RGB, 480cd/m², Capacitive touch panel I2C interface (GG, FT5426 IC), Default Data Enable, B/L 50K hours lifetime

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

4.3" Capacitive touch panel TFT display with resolution 480x272 pixels. This TFT module is built in with Driver IC ST7282-G4-1L; it supports 24-bit RGB interface; 3.3V (typical value) power supply for Voltage (VDD); it's having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and 16:9 aspect ratio. This TFT LCD 4.3" have competitive price advantage. B/L 50K hours lifetime

This module has brightness of 500 ~ 600 cd/m2. The module also is available for Resistive Touch Screen and Projected Capacitive Touch Screen optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

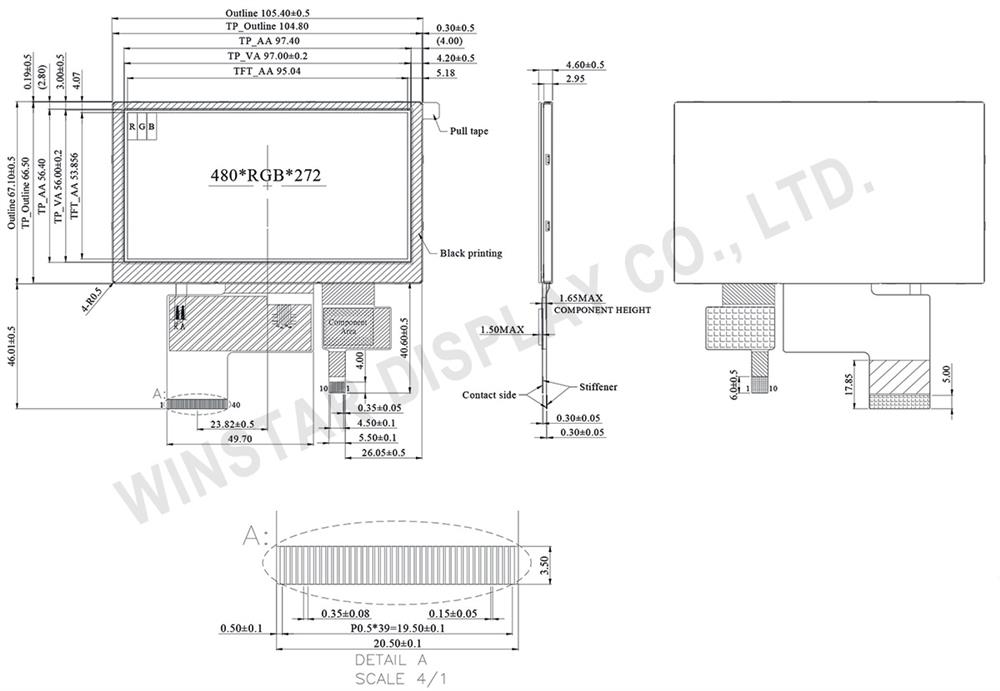

DRAWING

4.3 Projected Capacitive Touch Screen Color TFT LCD Module - WF43UTIAEDNG0 - Winstar Display



INTERFACE



PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32-33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37-40 NC No connection

PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit

SKU: WF43-480272UD#003-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€38.30
€30.70
€27.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€38.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

4.3" Capacitive touch panel TFT display with resolution 480x272 pixels. This TFT module is built in with Driver IC ST7282-G4-1L; it supports 24-bit RGB interface; 3.3V (typical value) power supply for Voltage (VDD); it's having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and 16:9 aspect ratio. This TFT LCD 4.3" have competitive price advantage. B/L 50K hours lifetime

This module has brightness of 500 ~ 600 cd/m2. The module also is available for Resistive Touch Screen and Projected Capacitive Touch Screen optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



DRAWING

4.3 Projected Capacitive Touch Screen Color TFT LCD Module - WF43UTIAEDNG0 - Winstar Display



INTERFACE



PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32-33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37-40 NC No connection

PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit

Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
