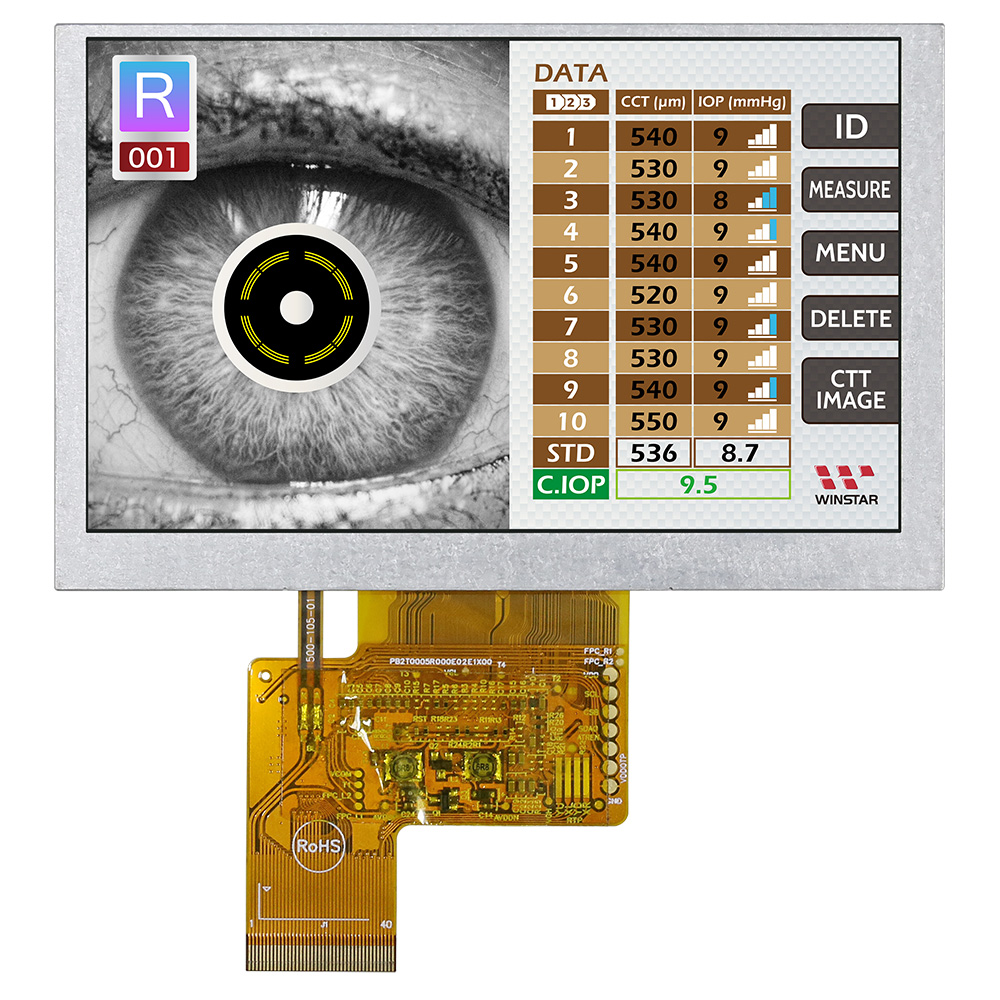

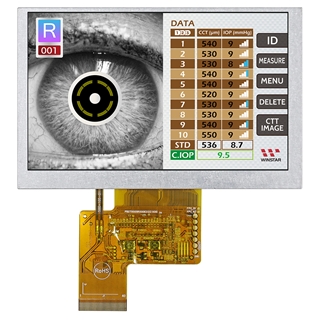

WF50-800480ED#0SPW0-FC

TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 1000cd/m², Wide view angle (IPS), Super extended temperature, No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. . High brightness version 1000 nits (typical value). This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

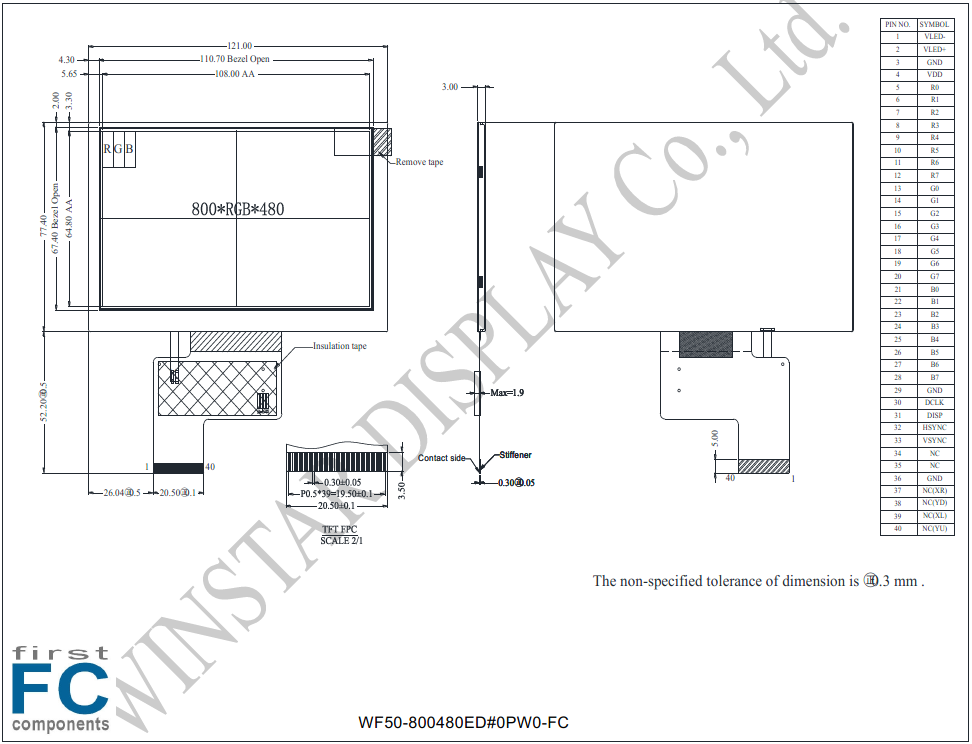

DRAWING

SKU: WF50-800480ED#0SPW0-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€67.50

€60.80

€53.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€67.50 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

DRAWING

Products specifications

Brand	Winstar
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-30~80
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-30~80
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
