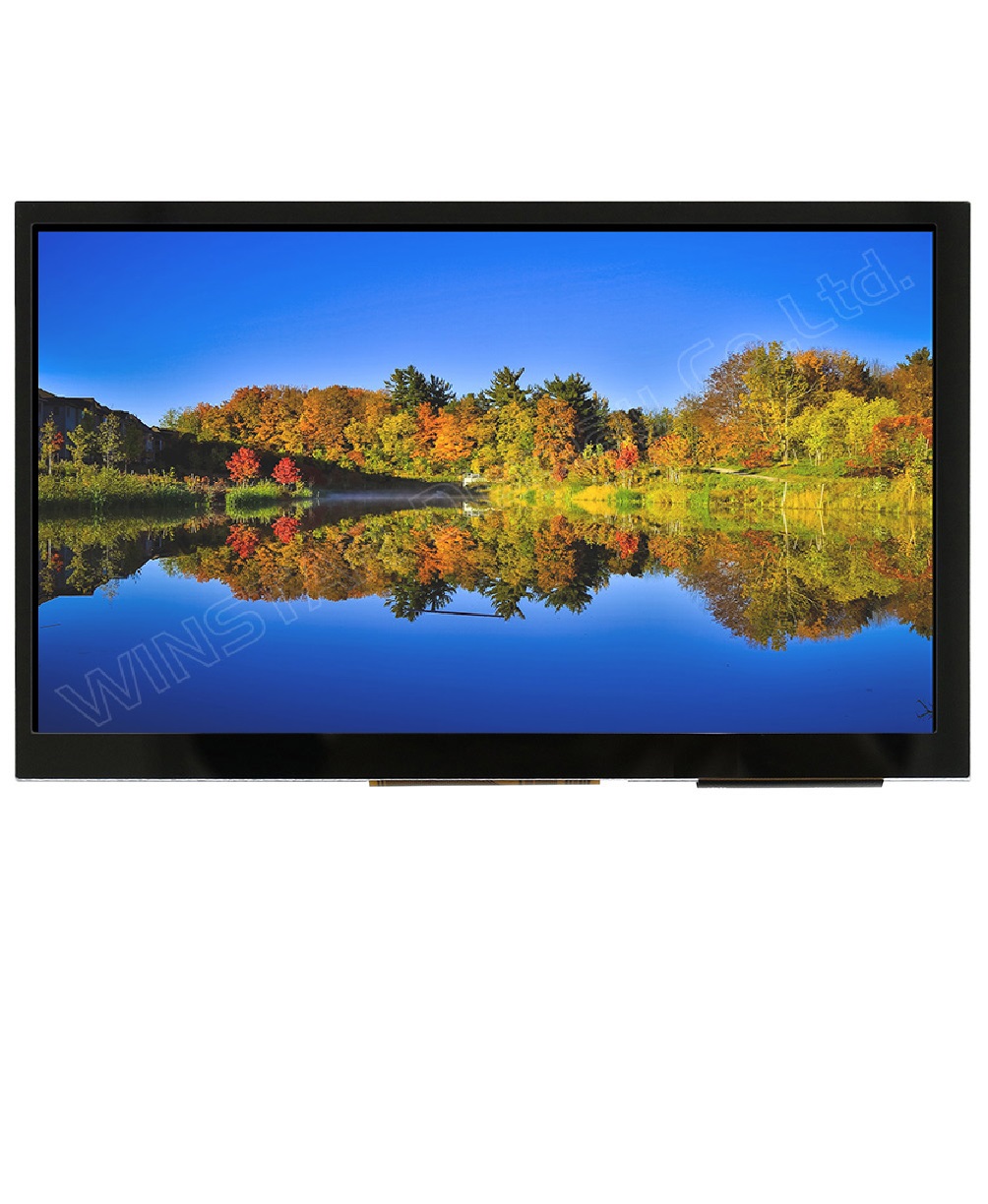

Item

Dimension

Unit

Size

5.0

inch

Dot Matrix

800 × 3(RGB) × 480

dots

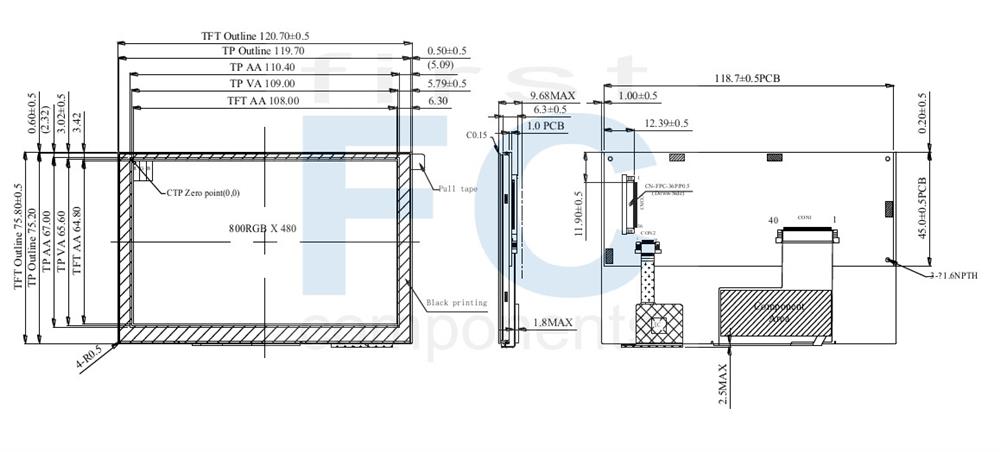

Module dimension

120.7 x 75.8 x 9.68 (Max)

mm

Active area

108.0 x 64.8

mm

Pixel pitch

0.135X 0.135

mm

LCD type

TFT, Normally White, Transmissive

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

Aspect Ratio

16:9

Backlight Type

LED, Normally White

Controller IC

SSD1963

TFT Interface

Digital 8080 family MPU 8bit/16bit

CTP IC

ILI2130 or equivalent

CTP Interface

I2C

CTP FW Version

0x07.0x00.0x00.0x00.0xA1.0x25.0x50.0x00

With /Without TP

With CTP

Surface

Glare

Pin

Symbol

Function

Remark

1

GND

System round pin of the IC.    Connect to system ground.

2

VDD

Power Supply : +3.3V

3

BL_E

Backlight control signal , H: On \ L: Off

4

D/C

Data/Command select

5

WR

Write strobe signal

6

RD

Read strobe signal

7

DB0

Data bus

8

DB1

Data bus

9

DB2

Data bus

10

DB3

Data bus

11

DB4

Data bus

12

DB5

Data bus

13

DB6

Data bus

14

DB7

Data bus

15

DB8

Data bus (When select 8bits mode, this pin is NC)

Note1

16

DB9

Data bus (When select 8bits mode, this pin is NC)

Note1

17

DB10

Data bus (When select 8bits mode, this pin is NC)

Note1

18

DB11

Data bus (When select 8bits mode, this pin is NC)

Note1

19

DB12

Data bus (When select 8bits mode, this pin is NC)

Note1

20

DB13

Data bus (When select 8bits mode, this pin is NC)

Note1

21

DB14

Data bus (When select 8bits mode, this pin is NC)

Note1

22

DB15

Data bus (When select 8bits mode, this pin is NC)

Note1

23

NC

No connection

24

CTP_INT

CTP_ External interrupt to the host

25

CS

Chip select

26

RST

Hardware reset (RESET#)

27

NC

No connection

28

NC

No connection

29

CTP_SCL

I2C clock input

30

CTP_SDA

I2C data input and output

31

CTP_RST

CTP_ External Reset, Low is active

32

NC

No connection

33

VLED-

VLED- for B/L LED inverter (GND)

34

VLED-

VLED- for B/L LED inverter (GND)

35

VLED+

VLED+ for B/L LED inverter

36

VLED+

VLED+ for B/L LED inverter
