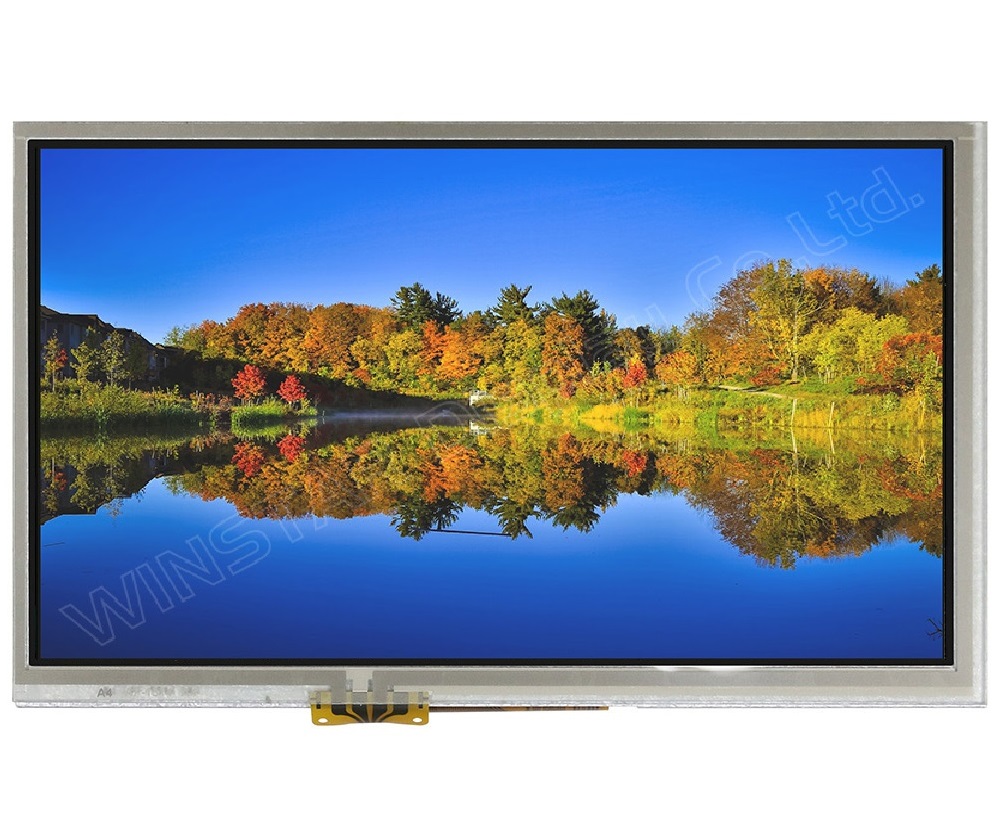

WF50QTIFGDBT0#

TFT 5" 800x480, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 300cd/m², Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

5 inch size of Winstar TFT Panel Q series family featured with SSD1963 controller board plus a 36 pin-out connector on board. This Display is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply; therefore, the customers no need to design extra backlight circuit.This display is with the module dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.8mm.

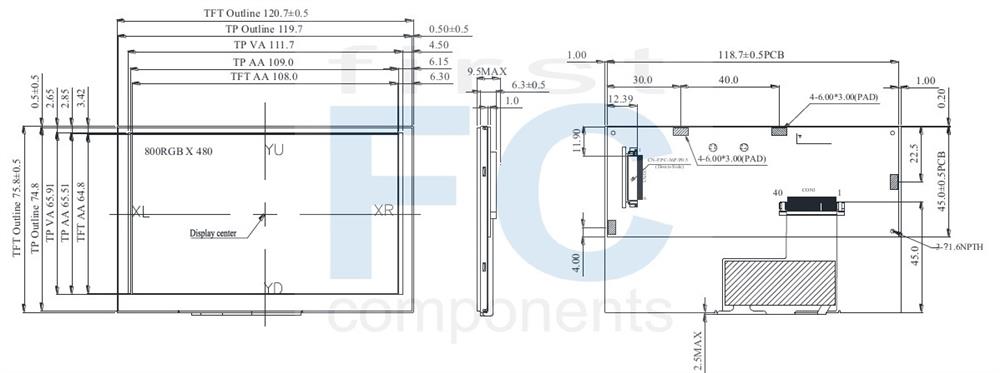

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition (CON3)

Pin	Symbol	Function	Remark
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7	DB0	Data bus
8	DB1	Data bus
9	DB2	Data bus
10	DB3	Data bus
11	DB4	Data bus
12	DB5	Data bus
13	DB6	Data bus
14	DB7	Data bus
15	DB8	Data bus (When select 8bits mode, this pin is NC)	Note1
16	DB9	Data bus (When select 8bits mode, this pin is NC)	Note1
17	DB10	Data bus (When select 8bits mode, this pin is NC)	Note1
18	DB11	Data bus (When select 8bits mode, this pin is NC)	Note1
19	DB12	Data bus (When select 8bits mode, this pin is NC)	Note1
20	DB13	Data bus (When select 8bits mode, this pin is NC)	Note1
21	DB14	Data bus (When select 8bits mode, this pin is NC)	Note1
22	DB15	Data bus (When select 8bits mode, this pin is NC)	Note1
23	NC	No connection
24	NC	No connection
25	CS	Chip select
26	RST	Hardware reset
27	NC	No connection
28	NC	No connection
29	XL	Left electrode
30	YU	Top electrode
31	XR	Right electrode
32	YD	Bottom electrode
33	VLED-	VLED- for B/L LED inverter (GND)
34	VLED-	VLED- for B/L LED inverter (GND)
35	VLED+	VLED+ for B/L LED inverter
36	VLED+	VLED+ for B/L LED inverter

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800 × 3(RGB) × 480	dots
Module dimension	120.7 x 75.8 x 9.5 (Max)	mm
Active area	108.0 x 64.8	mm
Dot pitch	0.045 x 0.135	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o’clock
Gray Scale Inversion Direction	6 o’clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
With /Without TP	With RTP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit	Remark
Supply Voltage For LCM	VDD	-	3.0	3.1	3.3	V	-
Supply Current For LCM	IDD	—	—	150	230	mA	Note1

SKU: WF50-800480QD#001-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

10+

Price

€56.60

€47.20

€40.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€56.60 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition (CON3)

Pin	Symbol	Function	Remark
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7	DB0	Data bus
8	DB1	Data bus
9	DB2	Data bus
10	DB3	Data bus
11	DB4	Data bus
12	DB5	Data bus
13	DB6	Data bus
14	DB7	Data bus
15	DB8	Data bus (When select 8bits mode, this pin is NC)	Note1
16	DB9	Data bus (When select 8bits mode, this pin is NC)	Note1
17	DB10	Data bus (When select 8bits mode, this pin is NC)	Note1
18	DB11	Data bus (When select 8bits mode, this pin is NC)	Note1
19	DB12	Data bus (When select 8bits mode, this pin is NC)	Note1
20	DB13	Data bus (When select 8bits mode, this pin is NC)	Note1
21	DB14	Data bus (When select 8bits mode, this pin is NC)	Note1
22	DB15	Data bus (When select 8bits mode, this pin is NC)	Note1
23	NC	No connection
24	NC	No connection
25	CS	Chip select
26	RST	Hardware reset
27	NC	No connection
28	NC	No connection
29	XL	Left electrode
30	YU	Top electrode
31	XR	Right electrode
32	YD	Bottom electrode
33	VLED-	VLED- for B/L LED inverter (GND)
34	VLED-	VLED- for B/L LED inverter (GND)
35	VLED+	VLED+ for B/L LED inverter
36	VLED+	VLED+ for B/L LED inverter

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800 × 3(RGB) × 480	dots
Module dimension	120.7 x 75.8 x 9.5 (Max)	mm
Active area	108.0 x 64.8	mm
Dot pitch	0.045 x 0.135	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o’clock
Gray Scale Inversion Direction	6 o’clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Controller IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
With /Without TP	With RTP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit	Remark
Supply Voltage For LCM	VDD	-	3.0	3.1	3.3	V	-
Supply Current For LCM	IDD	—	—	150	230	mA	Note1

Products specifications

Brand	Winstar
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	MCU (Parallel)
Display IC	SSD1963
View Angle	TN
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	ZIF Connector
Pin Nr.	36
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
