WF52-480128AD#0SF3-FC

TFT 5.2" 480x128, Bar Type, Interface RGB, High Brightness 700cd/m², Wide view angle (O-Film), Capacitive touch panel I2C interface (GG)

DESCRIPTION

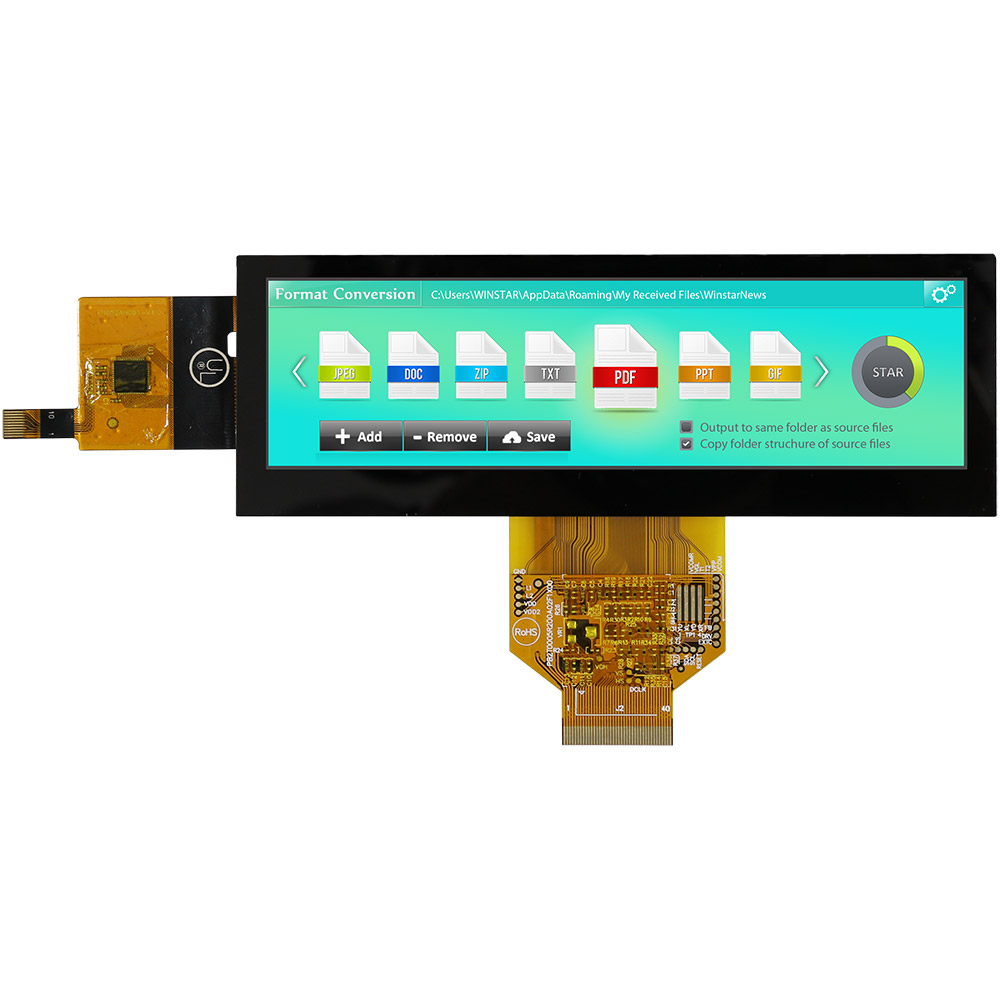

5.2 inch bar type TFT LCD display which featured with High Brightness and wider viewing angle of O-Film technology on module. Module dimension of 140.4 x 49.87 mm and Active Area of 127.152 x 33.9072 and wide viewing angle and high brightness of 800 ~850 cd/m2. This TFT display is featured with O-Film on panel having the advantages of wider viewing angle of Left: 75 / Right: 75 / Up: 75 / Down: 75 degree (typical). It is built in with ST7252 or equivalent driver IC; it supports RGB 24 bits parallel interface SYNC mode. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.

This 5.2 inch bar type TFT LCD display offers high quality and colorful image made of resolution 480x128 pixels; it is especially suitable for industrial equipment & automotive applications, server system, POS system, dynamic information displays, audio system and advertising display.

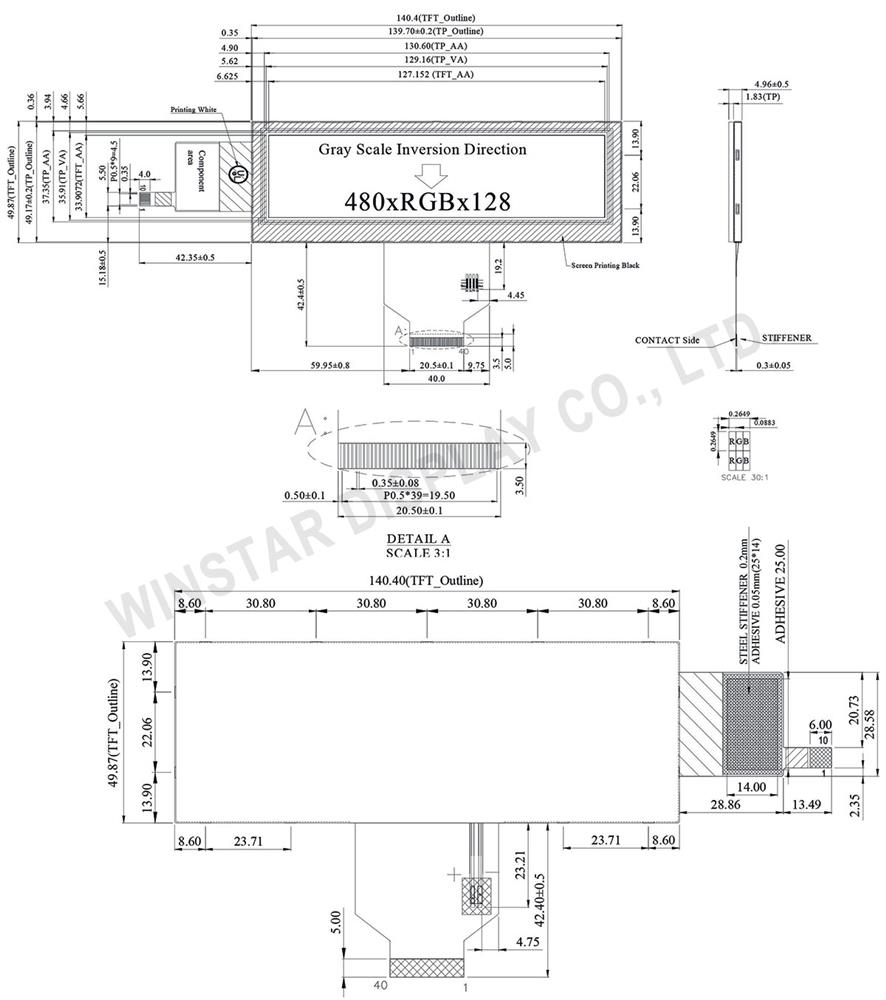

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6~11	R1~R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14~19	G1~G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22~27	B1~B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock (DCLK)
31	LR	Right /Left selection; Default R/L is Pull High
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	NC	No connection
35	UD	Up/down selection; Default U/D is Pull High
36	RESET	Reset signal
37~40	NC	No connection

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 × RGB × 128	dots
Module dimension	140.4 × 49.87 × 4.96	mm
Active area	127.152 × 33.9072	mm
Dot pitch	0.0883 × 0.2649	mm
LCD type	TFT, Normally White, Transmissive
View Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Aspect Ratio	Bar Type
Backlight Type	LED, Normally White
Driver IC	ST7252 Or Equal
Interface	RGB 24bit
With /Without TP	Projected capacitive touch panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	－	3.0	3.3	3.6	V
Supply Voltage For Touch	VDDT	－	2.8	－	3.3	V
Supply Current For LCM	ICC	-	－	20	－	mA

SKU: WF52-480128AD#0SF3-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€75.10

€67.60

€56.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€75.10 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6~11	R1~R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14~19	G1~G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22~27	B1~B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock (DCLK)
31	LR	Right /Left selection; Default R/L is Pull High
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	NC	No connection
35	UD	Up/down selection; Default U/D is Pull High
36	RESET	Reset signal
37~40	NC	No connection

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 × RGB × 128	dots
Module dimension	140.4 × 49.87 × 4.96	mm
Active area	127.152 × 33.9072	mm
Dot pitch	0.0883 × 0.2649	mm
LCD type	TFT, Normally White, Transmissive
View Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Aspect Ratio	Bar Type
Backlight Type	LED, Normally White
Driver IC	ST7252 Or Equal
Interface	RGB 24bit
With /Without TP	Projected capacitive touch panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	－	3.0	3.3	3.6	V
Supply Voltage For Touch	VDDT	－	2.8	－	3.3	V
Supply Current For LCM	ICC	-	－	20	－	mA

Products specifications

Brand	Winstar
Size	5.2"
Resolution	480x128
Active Area (mm)	127.15x33.90
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	O-Film
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Touch Panel IC Controller	CYTMA568
Preferred - Not Preferred	Preferred
