WF52-480128BD#000-FC

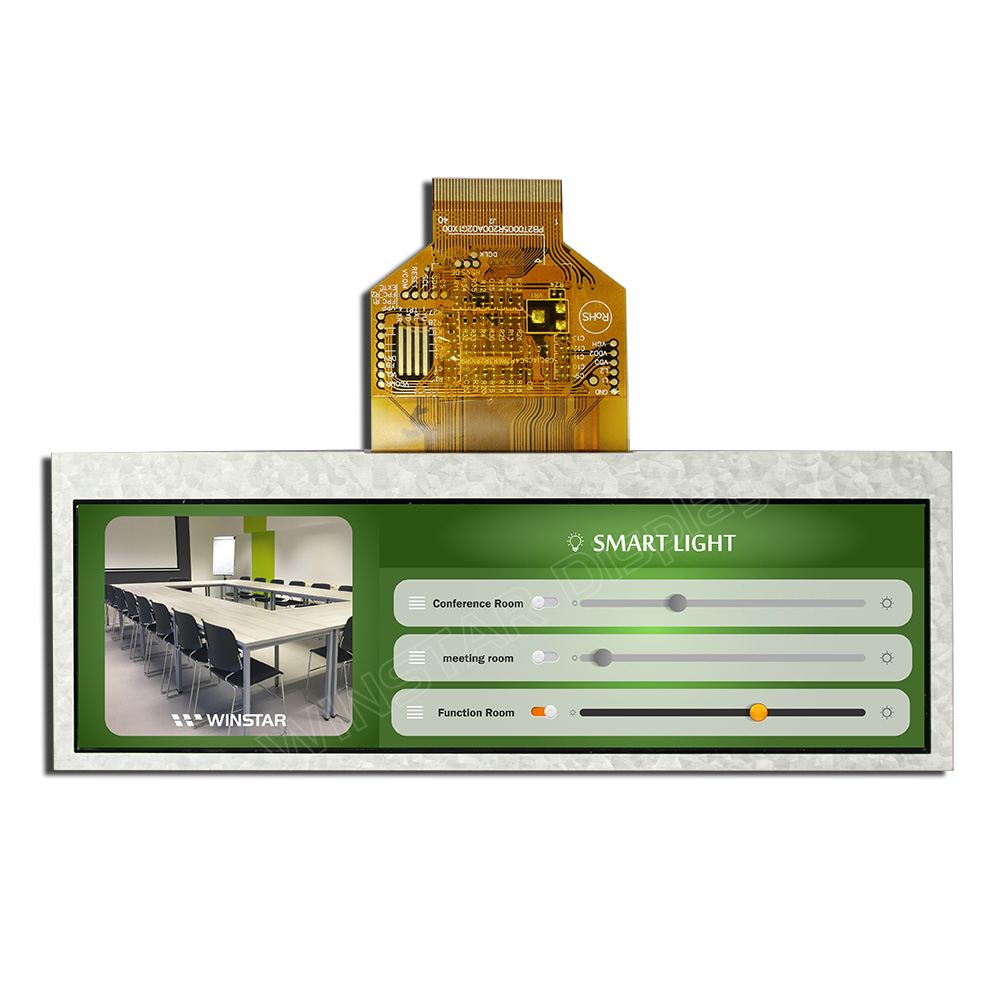

TFT 5.2'' 480x128, Bar Type, Interface RGB, High Brightness 500cd/m², View direction 12H, No touch

DESCRIPTION

It is a top view direction (12 o'clock) bar type TFT LCD module, diagonal size 5.2 inch. This module offers high quality and colorful image made of resolution 480x128 pixels. This module is built in with ST7252 or equivalent driver IC, it supports RGB 24-bit parallel interface SYNC mode, brightness 500 nits; contrast ratio 500, view direction 12 o'clock, gray scale inversion direction 6 o'clock, and glare surface glass. If customers require bottom-view (6 o'clock), gray scale inversion direction 6 o'clock, please choose WF52-480128AD#xxx-FC model.

The supply voltage for LCM (VCC) is 3V ~3.6V, typical value 3.3V, operating temperature from -20℃ to +70℃; storage temperatures from -30℃ to +80℃. We also offer Resistive Touch Panels (RTP), Projected Capacitive Touch Panel (PCAP) and High Brightness version optional.

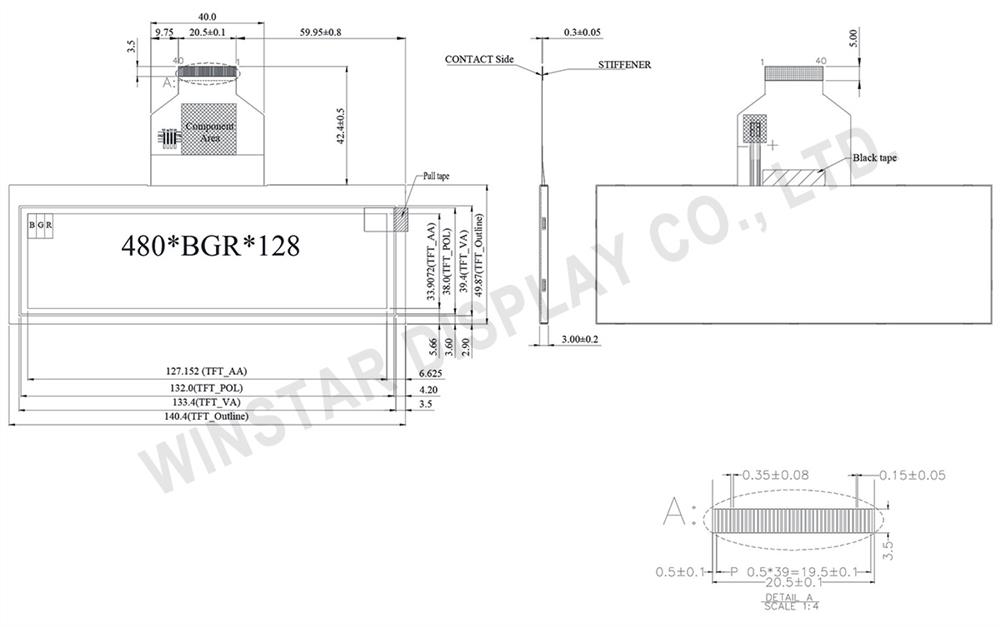

DRAWING

5.2" 480x128 Top View Direction Stretched Bar TFT LCD Display - WF52BTIASDNN0

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock (DCLK)
31 GND Power ground
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 NC No connection
35 GND Power ground
36 RESET Reset signal
37~40 NC No connection



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 140.4 × 49.87 × 3.0 mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Driver IC ST7252 or equivalent
Interface RGB 24bit
Touch Panel Without touch panel (screen)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 20 mA


SKU: WF52-480128BD#000-FC
Brand: Winstar
Available: No
Accessory Kit
