WF52-480128BD#001-FC

TFT 5.2'' 480x128, Bar Type, Interface RGB, High Brightness 350cd/m², View direction 12H, Resistive touch panel

MOQ

After sample PO, MP RTP MOQ 500pcs



DESCRIPTION

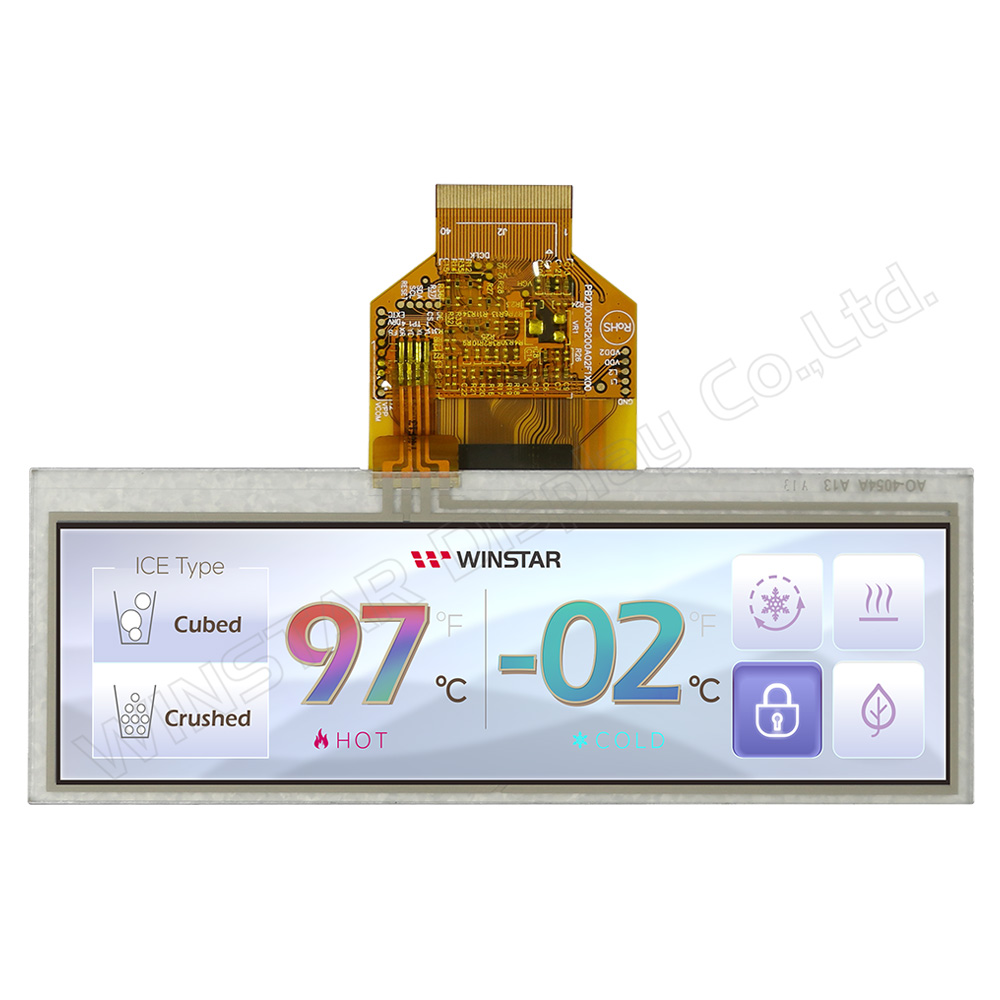

Top view direction bar type TFT LCD module, diagonal size 5.2 inch with resistive touch screen. This module offers high quality and colorful image made of resolution 480x128 dots. This module is built in with ST7252 or equivalent driver IC, it supports RGB 24-bit parallel interface SYNC mode, brightness 350 nits, contrast ratio 500, view direction 12 o'clock, gray scale inversion direction 6 o'clock, and glare surface glass. If customers require bottom-view (6 o'clock), gray scale inversion direction 12 o'clock, please choose WF52-480128AD#xx1-FC series Bar TFT model.

The supply voltage for LCM (VCC) is 3V~3.6V, typical value 3.3V, Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.  We also offer projected capacitive touch panel (PCAP) and high brightness optional.

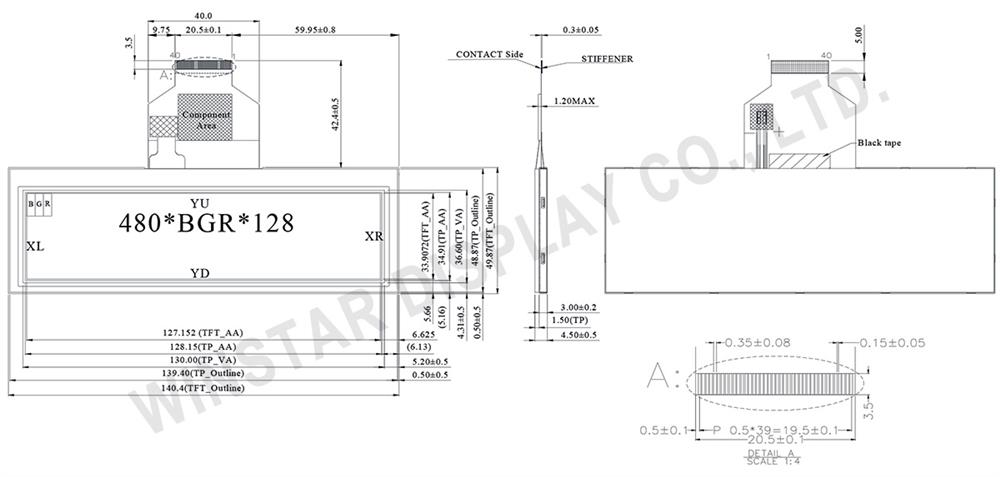

DRAWING

5.2" 480x128 Top View Direction Stretched RTP TFT LCD - WF52BTIASDNT0

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock (DCLK)
31 GND Power ground
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 NC No connection
35 GND Power ground
36 RESET Reset signal
37 XL Left electrode
38 YU Top electrode
39 XR Right electrode
40 YD Bottom electrode



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 140.4 × 49.87 ×4.5 mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Driver IC ST7252 or equivalent
Interface RGB 24bit
Touch Panel Resistive Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 20 mA


SKU: WF52-480128BD#001-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€44.70
€37.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€44.70 excl tax

MOQ

After sample PO, MP RTP MOQ 500pcs



DESCRIPTION

Top view direction bar type TFT LCD module, diagonal size 5.2 inch with resistive touch screen. This module offers high quality and colorful image made of resolution 480x128 dots. This module is built in with ST7252 or equivalent driver IC, it supports RGB 24-bit parallel interface SYNC mode, brightness 350 nits, contrast ratio 500, view direction 12 o'clock, gray scale inversion direction 6 o'clock, and glare surface glass. If customers require bottom-view (6 o'clock), gray scale inversion direction 12 o'clock, please choose WF52-480128AD#xx1-FC series Bar TFT model.

The supply voltage for LCM (VCC) is 3V~3.6V, typical value 3.3V, Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.  We also offer projected capacitive touch panel (PCAP) and high brightness optional.



DRAWING

5.2" 480x128 Top View Direction Stretched RTP TFT LCD - WF52BTIASDNT0

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock (DCLK)
31 GND Power ground
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 NC No connection
35 GND Power ground
36 RESET Reset signal
37 XL Left electrode
38 YU Top electrode
39 XR Right electrode
40 YD Bottom electrode



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 140.4 × 49.87 ×4.5 mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Driver IC ST7252 or equivalent
Interface RGB 24bit
Touch Panel Resistive Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC 20 mA


Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface RGB
Display IC Controller No
View Angle TN
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
