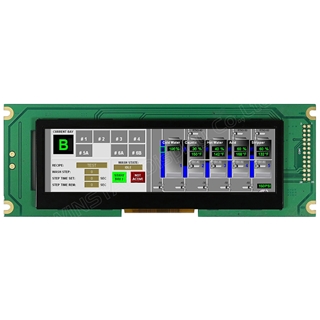

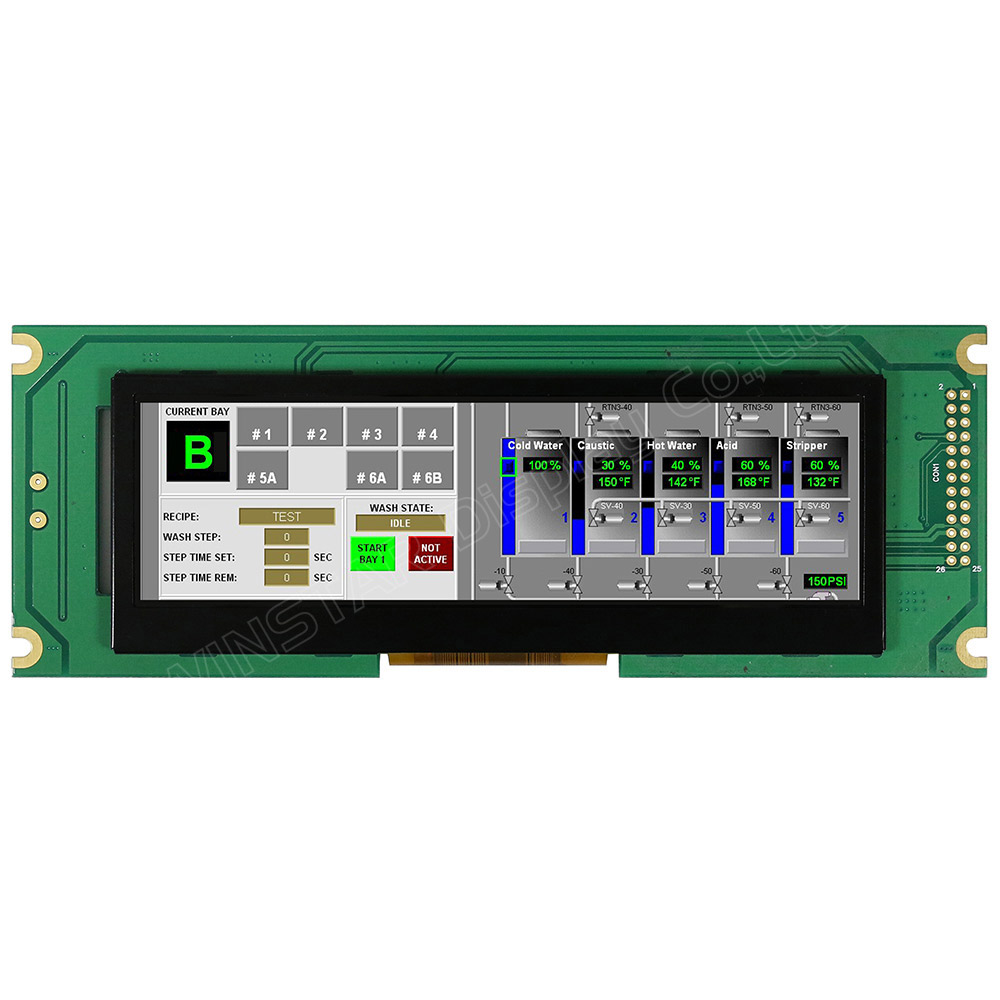

WF52-480128QD#004-FC

TFT 5.2" 480x128, Bar Type, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 500cd/m², View direction 6H, Frame, No touch

DESCRIPTION

This model is an upgrade solution for monochrome Graphic STN WG24064A COB module to colorful TFT display, both diagonal size are 5.2 inch. This STN WG24064A has the resolution 240x64 pixels; the TFT has resolution 480x128 pixels which are with higher resolution and colorful images. Winstar developed this wholly new design WF52A with SSD1963 controller board on module to be a replacement of STN WG24064A.

Winstar TFT has module dimension of 180.0 x 65.0 mm which is the same as Winstar monochrome Graphic WG24064A. Therefore, the customers can upgrade the existing mono STN WG24064A to color TFT directly since we designed a Pin-to-Pin interface on the TFT module.

This 5.2'' TFT is built in with SSD1963 controller board on module. It supports 8080 family MPU 8bit and 16 bit parallel interface. There are two connection interface options; 26 pins 8 bits using pin header and 36 pins 8 bits/16 bits using ZIF connector. The LCM PIN Definition of CON1 is for those who used WG24064A version, it is pin-to-pin from pin 1 to pin 20. WG24064A is using A.K pin for backlight, TFT is using pin 21 and pin 22 for backlight.
Operating temperature from -20℃ to +70℃; its storage temperature from -30℃ to +80℃.

DRAWING

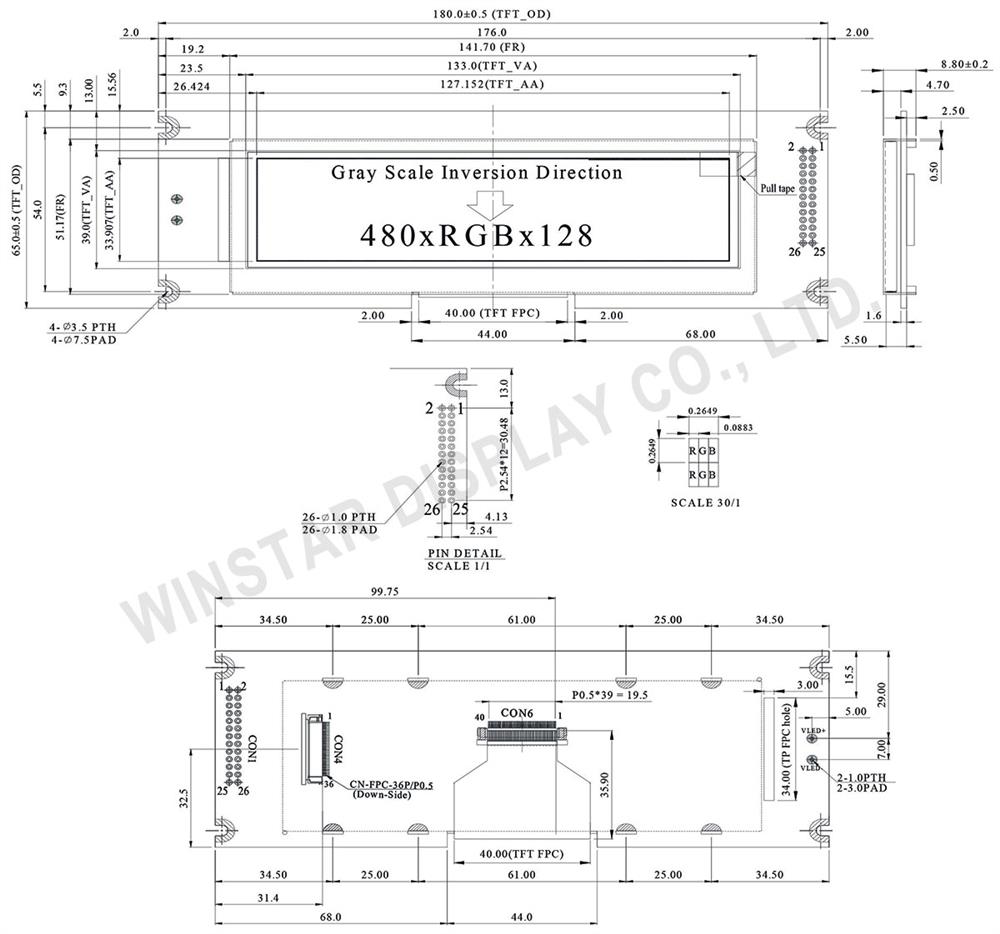

Winstar 5.2" TFT LCD with Display Controller Board

SPECIFICATIONS

Interface

1. LCM PIN Definition (CON4)

Pin	Symbol	Function
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	C/D	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits mode, this pin is NC)
23~24	NC	No connect
25	CS	Chip select
26	RESET	Hardware reset
27	LR	Right /Left selection; Default R/L is Pull High
28	UD	Up/down selection; Default U/D is Pull High
29~32	NC	No connection
33~34	VLED-	VLED- for B/L LED inverter (GND)
35~36	VLED+	VLED+ for B/L LED inverter (+5V)

2. LCM PIN Definition (CON1)

Pin	Symbol	Function
1	FG	Frame Grand
2	GND	System round pin of the IC. Connect to system ground.
3	VDD	Power Supply : +3.3V
4	BLE	Backlight control signal , H: On \ L: Off
5	WR	Write strobe signal
6	RD	Read strobe signal
7	CS	Chip select
8	C/D	Data/Command select
9	NC	No connect
10	RESET	Hardware reset
11~18	DB0~DB7	Data bus
19~20	NC	No connect
21	VLED+	VLED+ for B/L LED inverter (+5V)
22	VLED-	VLED- for B/L LED inverter (GND)
23~25	NC	No connect
26	GND	Hardware reset

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 × RGB × 128	dots
Module dimension	180.0 × 65.0 × 8.8	mm
Active area	127.152 × 33.9072	mm
Dot pitch	0.0883 × 0.2649	mm
LCD type	TFT, Normally White, Transmissive
View Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Backlight Type	LED, Normally White
Driver IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
With /Without TP	Without touch panel (screen)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	－	3.0	3.1	3.3	V
Supply Current For LCM	IDD	－	－	200	－	mA

SKU: WF52-480128QD#004-FC

Brand: Winstar

Available: Yes
