WEO64128W#AP3N0Y000-FC

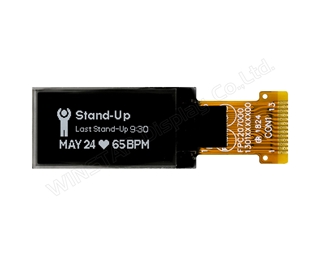

PMOLED 0.96'' Graphic 64x128, White color, COG, 3V, Interface SPI,I2C, Glare, Consumer Grade

DESCRIPTION

Consumer-grade COG OLED display, diagonal size 0.96 inch, made of resolution 64x128 dots. This OLED module is built-in with SH1107 IC; it supports 4-wire SPI and I2C interface, the supply voltage for logic 3V, the supply voltage for display 9V, the display with 50% Checkboard current is 8mA @9V VCC (typical value), driving duty 1/64. This model is suitable for wearable devices, portable devices, etc. Operating temperature from –30℃ to +70℃; storage temperature from -30℃ to +70℃.



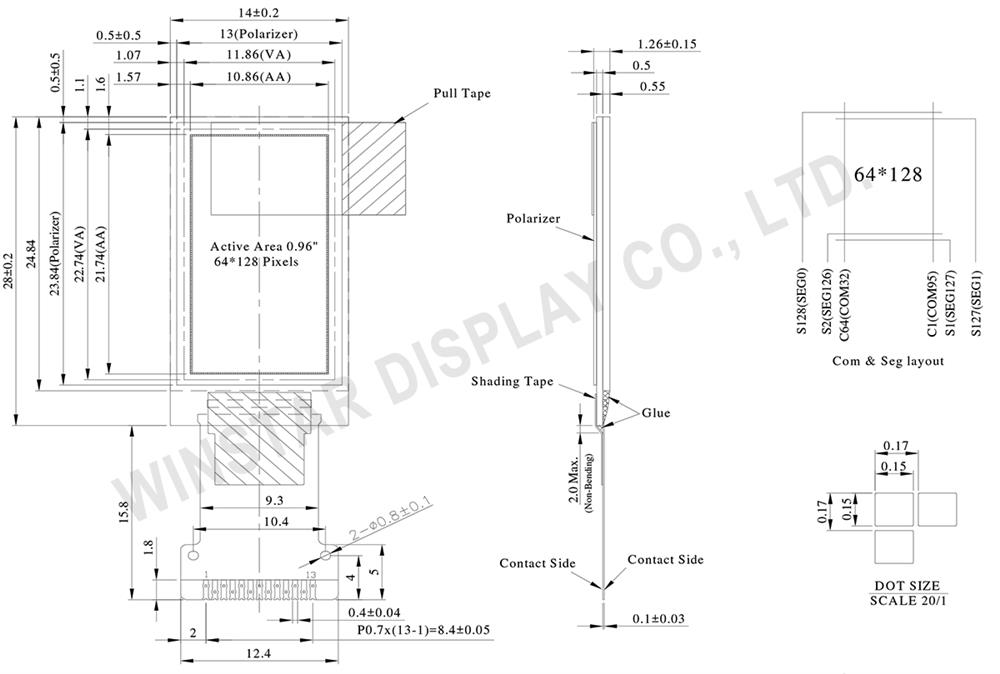

DRAWING



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 NC Not connected.
2 VPP This is the most positive voltage supply pad of the chip.
It should be supplied externally.
3 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
4 VDD Power supply for logic and input.
5 IM1 These are the MPU interface mode select pads.
IM1 connect to VDD is I2C interface.
IM1 connect to GND is 4-wire SPI interface.
6 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 15.625mA.
7 CS This pad is the chip select input. When CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
8 RES This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
9 DC This is the Data/Command control pad that determines whether the data bits are data or a command.
DC = “H”: the inputs at D0 to D1 are treated as display data.
DC = “L”: the inputs at D0 to D1 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
10 D0 When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI).
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDA).
11 D1
12 VSS Ground.
13 NC Not connected.



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 x 128 Dots
Module dimension 14.0 × 28.0 × 1.26 mm
Active Area 10.86× 21.74 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1107
Interface 4-wire SPI , I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Supply Voltage for Display VPP -0.3 17.0 V
Operating Temperature TOP -30 +70 °C
Storage Temperature TSTG -30 +70 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 1.65 3.0 3.3 V
Supply Voltage for Display VPP 7.0 9.0 9.5 V
Input High Volt. VIH 0.8×VDD VDD V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.8×VDD VDD V
Output Low Volt. VOL 0 0.2×VDD V
Operating Current for VCC (50% display ON)   IPP VPP=9V 8 12 mA


SKU: WEO64128W#AP3N0Y000-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.30
€4.60
€4.40
€4.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.30 excl tax

DESCRIPTION

Consumer-grade COG OLED display, diagonal size 0.96 inch, made of resolution 64x128 dots. This OLED module is built-in with SH1107 IC; it supports 4-wire SPI and I2C interface, the supply voltage for logic 3V, the supply voltage for display 9V, the display with 50% Checkboard current is 8mA @9V VCC (typical value), driving duty 1/64. This model is suitable for wearable devices, portable devices, etc. Operating temperature from –30℃ to +70℃; storage temperature from -30℃ to +70℃.



DRAWING



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 NC Not connected.
2 VPP This is the most positive voltage supply pad of the chip.
It should be supplied externally.
3 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
4 VDD Power supply for logic and input.
5 IM1 These are the MPU interface mode select pads.
IM1 connect to VDD is I2C interface.
IM1 connect to GND is 4-wire SPI interface.
6 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 15.625mA.
7 CS This pad is the chip select input. When CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
8 RES This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
9 DC This is the Data/Command control pad that determines whether the data bits are data or a command.
DC = “H”: the inputs at D0 to D1 are treated as display data.
DC = “L”: the inputs at D0 to D1 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
10 D0 When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI).
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDA).
11 D1
12 VSS Ground.
13 NC Not connected.



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 x 128 Dots
Module dimension 14.0 × 28.0 × 1.26 mm
Active Area 10.86× 21.74 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1107
Interface 4-wire SPI , I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Supply Voltage for Display VPP -0.3 17.0 V
Operating Temperature TOP -30 +70 °C
Storage Temperature TSTG -30 +70 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 1.65 3.0 3.3 V
Supply Voltage for Display VPP 7.0 9.0 9.5 V
Input High Volt. VIH 0.8×VDD VDD V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.8×VDD VDD V
Output Low Volt. VOL 0 0.2×VDD V
Operating Current for VCC (50% display ON)   IPP VPP=9V 8 12 mA


Products specifications
Brand Winstar
Size 0.96"
Resolution 64x128
Active Area (mm) 10.86x21.74
Dot Size 0.15x0.15
Polarizer Glare
Color White
Power supply 3V
Display Interface SPI/I2C
Display IC SH1107
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -30~70
Display Connection FPC per Soldering
Pin Nr. 13
Pin Pitch 0.70mm
Preferred - Not Preferred Preferred
