WF52-480128QD#007-FC

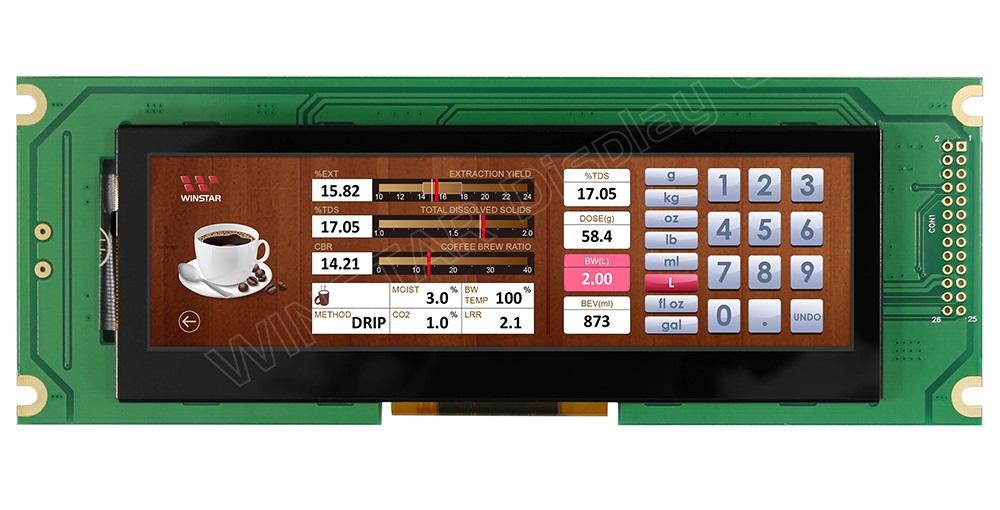

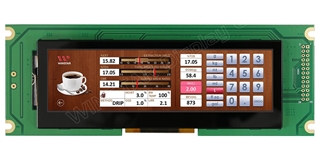

TFT 5.2" 480x128, Bar Type, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 400cd/m², View direction 6H,Frame, Capacitive touch panel I2C interface (GG)

DESCRIPTION

This model is an upgrade solution for monochrome Graphic STN WG24064A COB module to colorful TFT display, both diagonal size are 5.2 inch. This STN WG24064A has the resolution 240x64 pixels; the TFT has resolution 480x128 pixels which are with higher resolution and colorful images. Winstar developed this wholly new design WF52A with SSD1963 controller board on module to be a replacement of STN WG24064A.

Winstar TFT has module dimension of 180.0 x 65.0 mm which is the same as Winstar monochrome Graphic WG24064A. Therefore, the customers can upgrade the existing mono STN WG24064A to color TFT directly since we designed a Pin-to-Pin interface on the TFT module.

This 5.2'' TFT is built in with SSD1963 controller board on module and Capacitive touch panel option. It supports 8080 family MPU 8bit and 16 bit parallel interface. There are two connection interface options; 26 pins 8 bits using pin header and 36 pins 8 bits/16 bits using ZIF connector. The LCM PIN Definition of CON1 is for those who used WG24064A version, it is pin-to-pin from pin 1 to pin 20. WG24064A is using A.K pin for backlight, TFT is using pin 21 and pin 22 for backlight.
Operating temperature from -20℃ to +70℃; its storage temperature from -30℃ to +80℃.

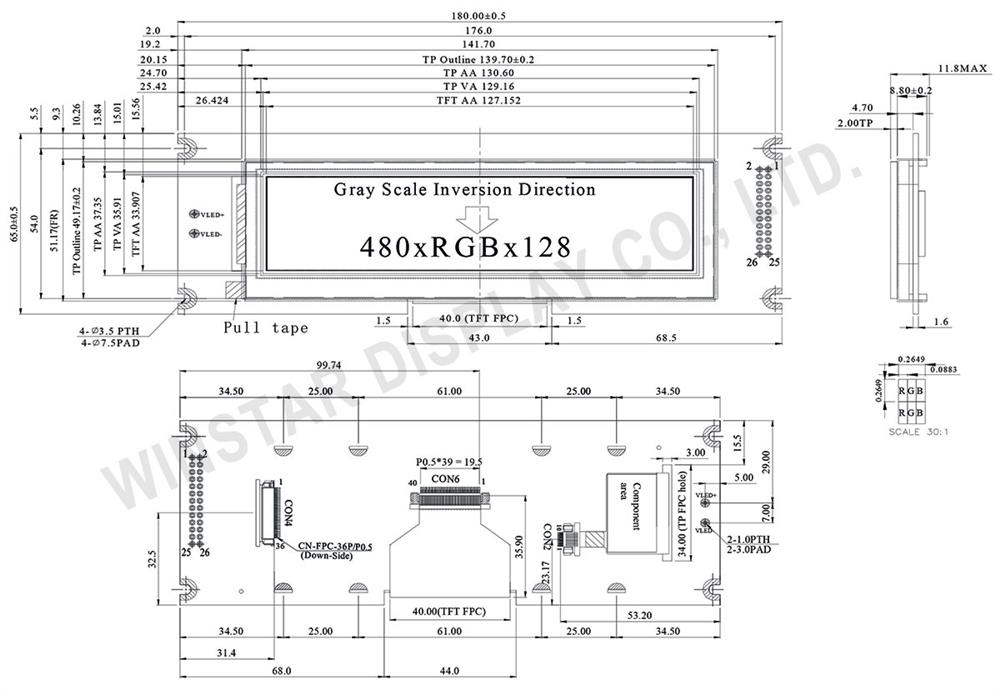

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition (CON4)

Pin	Symbol	Function
1	GND	System round pin of the IC. Connect to system ground.
2	VDD	Power Supply : +3.3V
3	BL_E	Backlight control signal , H: On \ L: Off
4	D/C	Data/Command select
5	WR	Write strobe signal
6	RD	Read strobe signal
7~14	DB0~DB7	Data bus
15~22	DB8~DB15	Data bus (When select 8bits mode, this pin is NC)
23	NC	No connect
24	CTP_INT	CTP_ External interrupt to the host
25	CS	Chip select
26	RESET	Hardware reset
27	LR	Right /Left selection; Default R/L is Pull High
28	UD	Up/down selection; Default U/D is Pull High
29	CTP_SCL	CTP_SPI Slave mode, chip select, active low / I2C clock input
30	CTP_SDA	CTP_ SPI Slave mode, data input / I2C data input and output
31	CTP_RST	CTP_ External Reset, Low is active
32	NC	No connect
33	VLED-	VLED- for B/L LED inverter (GND)
34	VLED-	VLED- for B/L LED inverter (GND)
35	VLED+	VLED+ for B/L LED inverter (+5V)
36	VLED+	VLED+ for B/L LED inverter (+5V)

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 × RGB × 128	dots
Module dimension	180.0 × 65.0 × 11.8	mm
Active area	127.152 × 33.9072	mm
Dot pitch	0.0883 × 0.2649	mm
LCD type	TFT, Normally White, Transmissive
View Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Aspect Ratio	Bar Type
Backlight Type	LED,Normally White
Driver IC	SSD1963
Interface	Digital 8080 family MPU 8bit/16bit
With /Without TP	PCAP, Projected capacitive touch panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	－	3.0	3.1	3.3	V
Supply Current For LCM	IDD	－	－	200	－	mA

SKU: WF52-480128QD#007-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

10+

Price

€92.00

€82.80

€69.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€92.00 excl tax
