WF57BTCECLNT0#

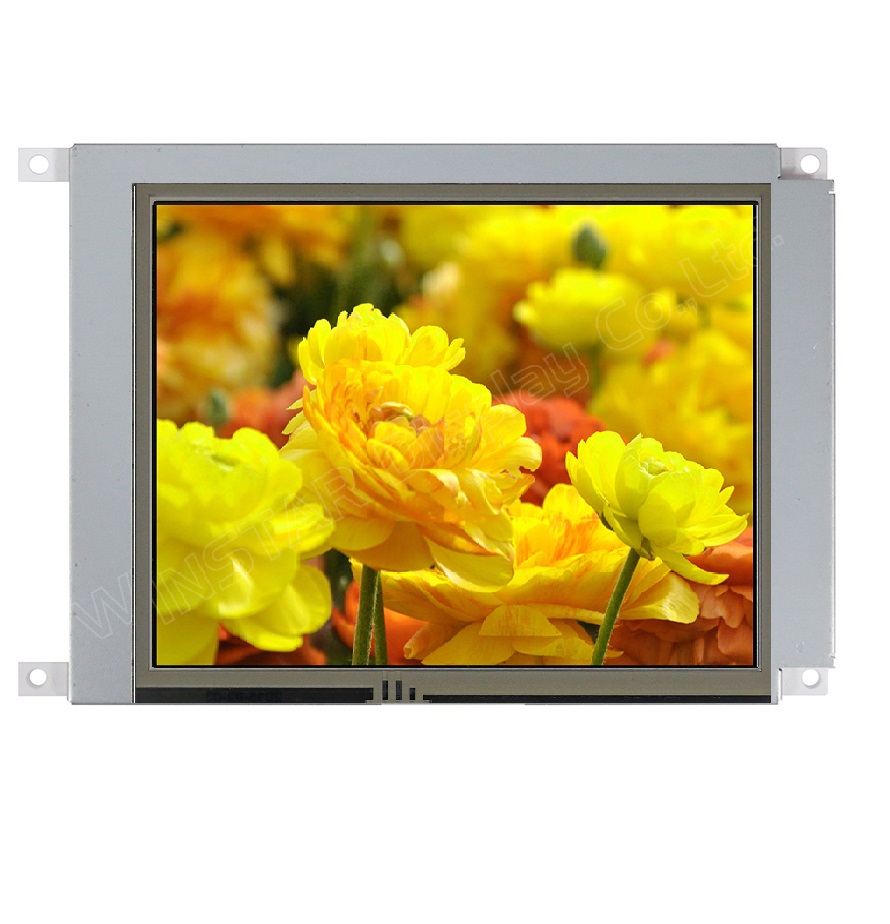

TFT 5.7" 320x240 LCD Panel, Interface LVDS, 350cd/m², Frame, Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



This Winstar 5.7 TFT LCD Panel Display is a very popular model in our TFT product line. Winstar offers this module featured with a Carrier Board with LVDS interface display module. LVDS is already common place across a variety of applications particularly in industrial and consumer markets and further adoption of LVDS in embedded applications will continue.

It has an extended module with a carrier board featuring LVDS (low-voltage differential signal) data interface. The module dimension is 160.0 x 109.0 mm and the AA size is 115.20 x 86.40 mm. This carrier board also has the POWER BOARD function as option. The users can choose FPC or cable connector for their applications.

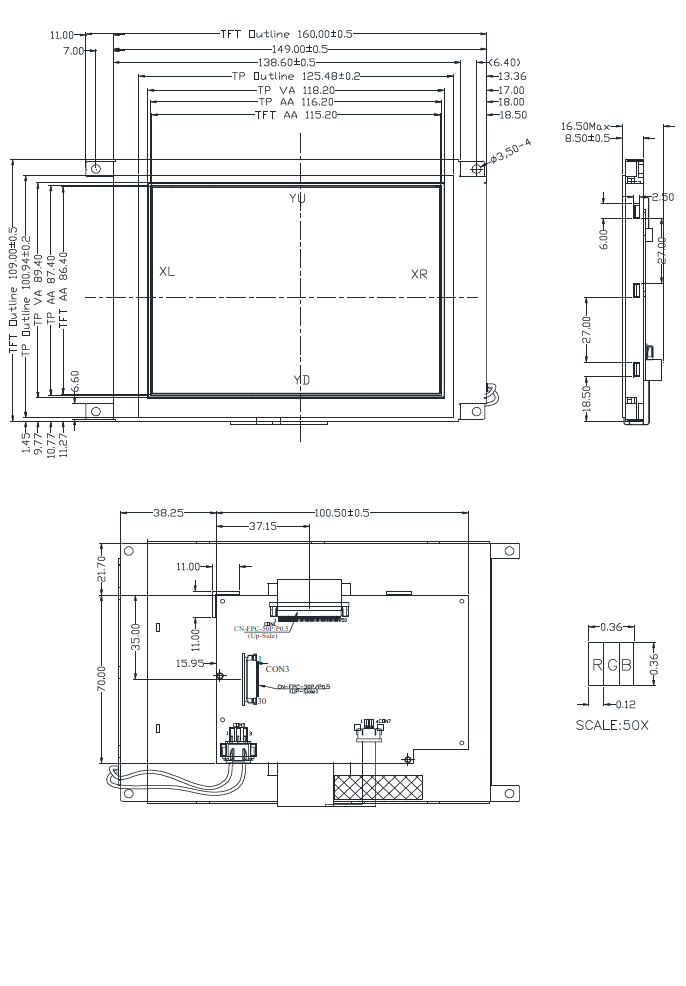

DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 LED+ Power supply for Backlight +
2 LED- Power supply for Backlight -
3 RX3+ + LVDS differential data input
4 RX3- - LVDS differential data input
5 GND Ground
6 RXC+ + LVDS differential clock input
7 RXC- - LVDS differential clock input
8 GND Ground
9 RX2+ + LVDS differential data input
10 RX2- - LVDS differential data input
11 GND Ground
12 RX1+ + LVDS differential data input
13 RX1- - LVDS differential data input
14 GND Ground
15 RX0+ + LVDS differential data input
16 RX0- - LVDS differential data input
17 L/R Shift direction of device internal shift register control.
18 U/D Up/down selection
19 VCC Digital power: 3V~3.6V
20 VCC Digital power: 3V~3.6V
21 YU Top electrode
22 XR Right Electrode
23 YD Bottom Electrode
24 XL Left Electrode
25 NC No connection
26 NC No connection
27 NC No connection
28 NC No connection
29 NC No connection
30 RESET Hardware reset



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × RGB × 240 (TFT) dots
Module dimension 160.0(W) × 109.0(H) × 15.0(D) mm
Active area 115.20 × 86.40 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Resistive touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP 0 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC － － 210 315 mA
Input High Volt. VIH － 0.7 VCC － VCC V
Input Low Volt. VIL － 0 － 0.3 VCC V


SKU: WF57-320240BL#005-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€95.80
€86.20
€72.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€95.80 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



This Winstar 5.7 TFT LCD Panel Display is a very popular model in our TFT product line. Winstar offers this module featured with a Carrier Board with LVDS interface display module. LVDS is already common place across a variety of applications particularly in industrial and consumer markets and further adoption of LVDS in embedded applications will continue.

It has an extended module with a carrier board featuring LVDS (low-voltage differential signal) data interface. The module dimension is 160.0 x 109.0 mm and the AA size is 115.20 x 86.40 mm. This carrier board also has the POWER BOARD function as option. The users can choose FPC or cable connector for their applications.



DRAWING

SPECIFICATIONS



Interface

PinSymbolFunction
1 LED+ Power supply for Backlight +
2 LED- Power supply for Backlight -
3 RX3+ + LVDS differential data input
4 RX3- - LVDS differential data input
5 GND Ground
6 RXC+ + LVDS differential clock input
7 RXC- - LVDS differential clock input
8 GND Ground
9 RX2+ + LVDS differential data input
10 RX2- - LVDS differential data input
11 GND Ground
12 RX1+ + LVDS differential data input
13 RX1- - LVDS differential data input
14 GND Ground
15 RX0+ + LVDS differential data input
16 RX0- - LVDS differential data input
17 L/R Shift direction of device internal shift register control.
18 U/D Up/down selection
19 VCC Digital power: 3V~3.6V
20 VCC Digital power: 3V~3.6V
21 YU Top electrode
22 XR Right Electrode
23 YD Bottom Electrode
24 XL Left Electrode
25 NC No connection
26 NC No connection
27 NC No connection
28 NC No connection
29 NC No connection
30 RESET Hardware reset



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 320 × RGB × 240 (TFT) dots
Module dimension 160.0(W) × 109.0(H) × 15.0(D) mm
Active area 115.20 × 86.40 mm
Dot pitch 0.12 × 0.36 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Resistive touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP 0 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC － － 210 315 mA
Input High Volt. VIH － 0.7 VCC － VCC V
Input Low Volt. VIL － 0 － 0.3 VCC V


Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface LVDS
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) 0~70
Display Connection ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface LVDS
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) 0~70
Display Connection ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
