WF70GTIAGDNTY#

TFT 7" 800x480 LCD Panel, Interface RGB (50pin), 350cd/m², Resistive touch panel (LC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

7" TFT-LCD with RTP touch screen display module, made of resolution WVGA 800x480 dots. Low cost version. This 7" TFT touch screen LCD display module can be easily controlled by MCU such as 8051, PIC, AVR, ARDUINO and ARM. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

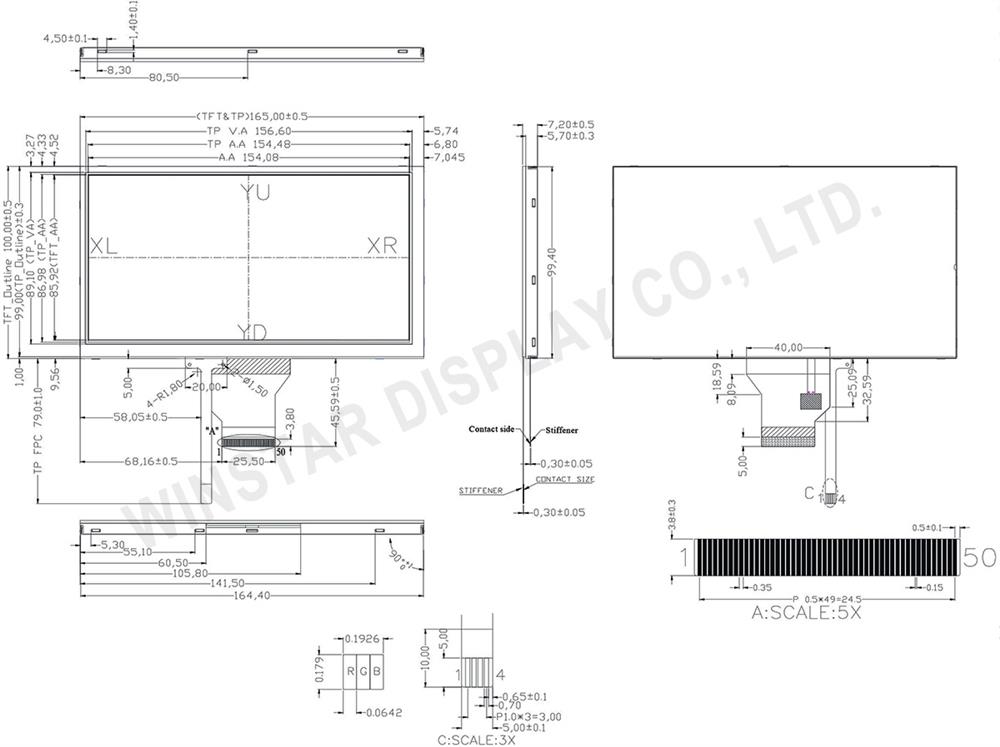

DRAWING

7 TFT Touch Screen LCD Display, Touch Screen Module, Touch Screen Display Module - WF70GTIAGDNT0

SPECIFICATIONS

Interface

LCM PIN Definition

Pin	Symbol	Function
1	A	Power supply for backlight
2	A	Power supply for backlight
3	K	Backlight ground
4	K	Backlight ground
5	GND	Power ground
6	VCOM	Common voltage
7	VCC	Power for Digital Circuit
8	MODE	DE/SYNC mode select
9	DE	Data Input Enable
10	VS	Vertical Sync Input
11	HS	Horizontal Sync Input
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data(LSB)
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data(LSB)
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Sample clock
38	GND	Power Ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin.
45	NC	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC	No connection
50	NC	No connection

I: input, O: output, P: Power

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	165.0(W) × 100(H) × 7.2(D)	mm
Active area	154.08 × 85.92	mm
Dot pitch	0.0642 × 0.179	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Touch Screen	Resistive Touch Screen
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

SKU: WF70-800480GD#Y01-FC

Brand: Winstar

Available: Yes
