WF70GTIFGDHN0#

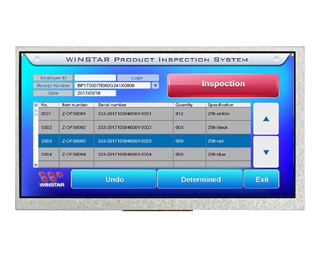

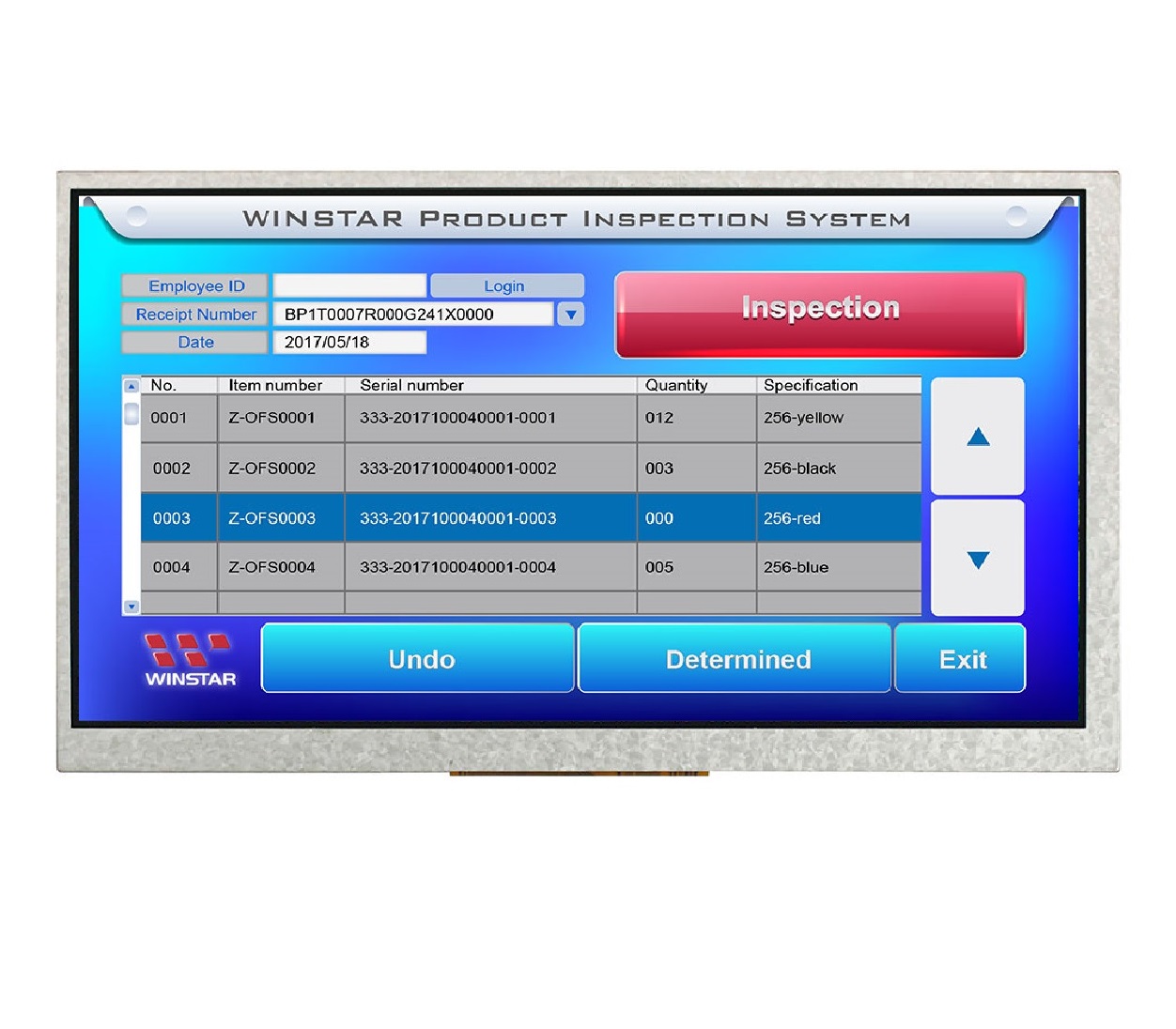

TFT 7" 800x480, HDMI Interface, IC TFP401, 460cd/m², No touch (no connectors)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



7 inch medium-sized for HDMI signal TFT-LCD display, made of resolution 800x480 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface.

You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT display is 800x480 resolutions, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk. Please note, this part no. does not include any HDMI connector or USB cable.

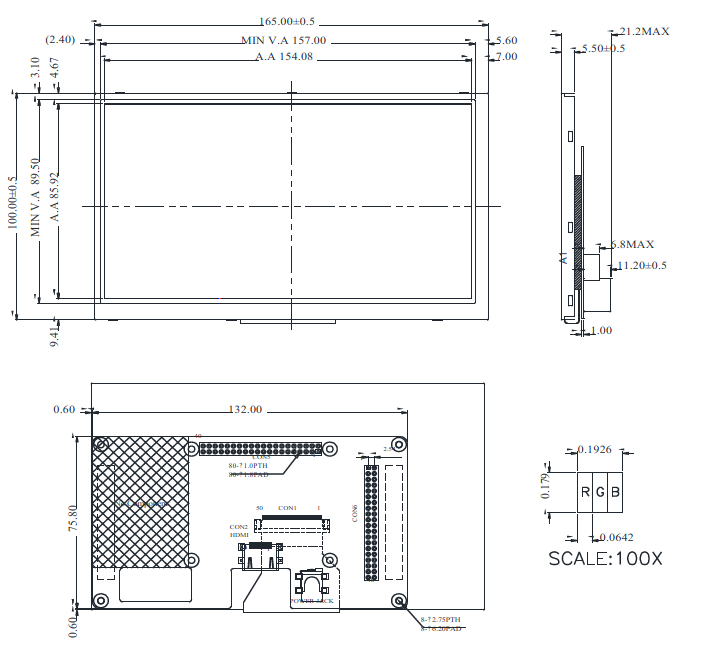

DRAWING



SPECIFICATIONS



Interface

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection


HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
Touchscreen No
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
SKU: WF70-800480GH#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€70.30
€63.30
€53.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€70.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



7 inch medium-sized for HDMI signal TFT-LCD display, made of resolution 800x480 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface.

You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT display is 800x480 resolutions, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk. Please note, this part no. does not include any HDMI connector or USB cable.




DRAWING



SPECIFICATIONS



Interface

POWER JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC   No connection


HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect
I: input, O: output, P: Power

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 100(H) mm
Active area 154.08 × 85.92 mm
Dot pitch 0.0642 × 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Controller IC TFP401 or equivalent
Backlight Type LED, Normally White
TFT Interface Support HDMI Connector (Only DVI Signal)
Touchscreen No
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 4.9 5 5.1 V
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface HDMI
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface HDMI
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Not Preferred
