WO12864-88IL#FC

Picture of WO12864-88IL#FC Picture of WO12864-88IL#FC
Graphic LCD 2.2'' 128x64, B/L white, DFSTN black neg, Transflective, COG, 3.3V, Interface SPI/I2C, 6 O'clock (peripheral circuit design optimization)

MOQ

After sample PO, MP MOQ 1Kpcs



DESCRIPTION

Monochrome COG graphic LCD module made of 128x64 dots matrix. This COG module is built in with ST7567A controller IC; it supports SPI and I2C interface. It has the same module dimension, AA and VA sizes as WO12864-xxxA1#FC, but with different controller IC and interface. The users can use PIN 2 (SI2) to select I2C or SPI interface directly. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO12864-xxxL#FC is available for FSTN Positive Transflective with white LED backlight, if customers require different LCD type and LED combination, please contact us.

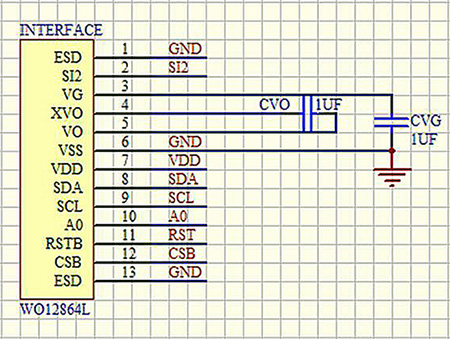

The advantage of this module is the peripheral circuit design optimization. Below is the comparison of circuit designs of WO12864-xxxL#FC and WO12864-xxxA1#FC. For new designs, WO12864-xxxL#FC is a better choice.

WO12864-xxxL#FC WO12864-xxxA1#FC
WO12864L-TFH Pin WO12864A1-TFH Pin

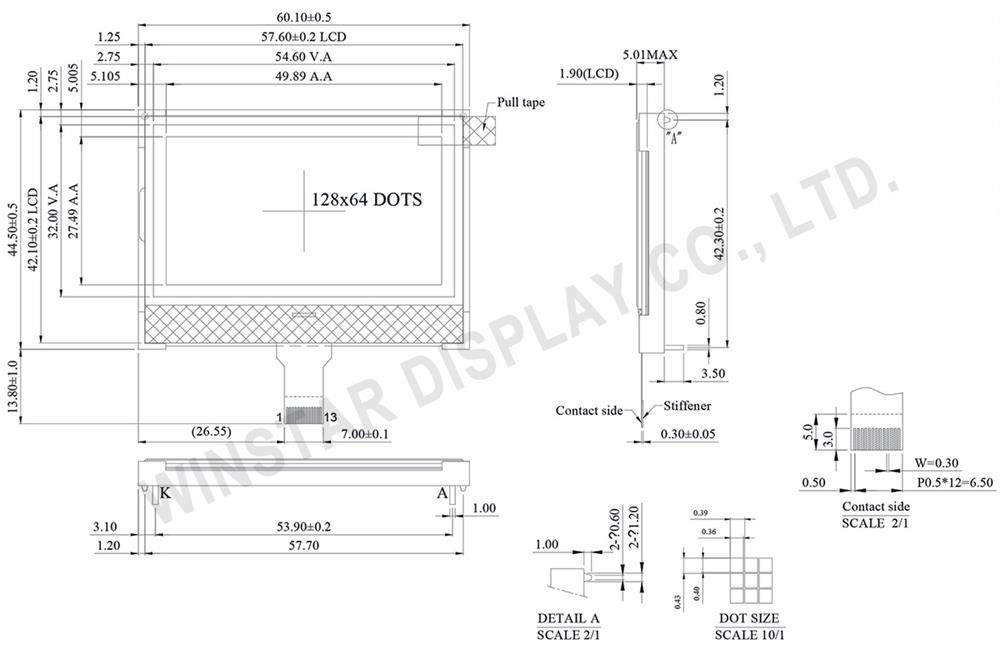

DRAWING

128x64 COG Graphic STN LCD Display (ST7567A IC) - WO12864L

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 ESD ESD
2 SI2 These pins select the displey duty and bias of ST7567A
SEL2 SEL1 Duty Bias
"L" "L" 1/65 1/9 or 1/7
"L" "H" 1/49 1/8 or 1/6
"H" "L" 1/33 1/6 or 1/5
"H" "H" 1/55 1/8 or 1/6
3 VG VG is the LCD driving voltage for segment circuits
4 XV0 XV0 is the LCD driving voltage for common circuits at positive frame.
5 V0 V0 is the LCD driving voltage for common circuits at negative frame.
6 VSS GROUND
7 VDD POWER
8 SDA D[1:3] must be connected together as SDA.
D[4:7]=(1,1,1,1): ID Pin. D[4:7] should fix to “H” or “L” by VDDH or
VSSL.
9 SCL
10 A0 It determines whether the access is related to data or command. A0=“H” : Indicates that signals on D[7:0] are display data.
A0=“L” : Indicates that signals on D[7:0] are command.
11 RSTB Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
12 CSB Chip select input pin. Interface access is enabled when CSB is “L”.
When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance.
13 ESD ESD



Mechanical Data

ItemDimensionUnit
Number of dots 128 x 64 —
Module dimension 60.10 x 44.50 x 5.01(Max) mm
View area 54.6 x 32.0 mm
Active area 49.89 x 27.49 mm
Dot size 0.36 x 0.40 mm
Dot pitch 0.39 x 0.43 mm
Drive Method 1/65 DUTY, 1/9BIAS
Backlight Type LED
IC ST7567A (SPI & I2C)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VI -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 4.0 V
LCD Power supply voltage V0-XV0 -0.3 － 18.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 2.9 3.0 3.1 V
Supply Voltage For LCD
*Note		 VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
9.3
－		 －
9.5
－		 －
9.7
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － VSS － 0.3VDD V
Supply Current IDD －     2.0 mA


SKU: WO12864-88IL#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
Price
€9.70
€7.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.70 excl tax

MOQ

After sample PO, MP MOQ 1Kpcs



DESCRIPTION

Monochrome COG graphic LCD module made of 128x64 dots matrix. This COG module is built in with ST7567A controller IC; it supports SPI and I2C interface. It has the same module dimension, AA and VA sizes as WO12864-xxxA1#FC, but with different controller IC and interface. The users can use PIN 2 (SI2) to select I2C or SPI interface directly. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO12864-xxxL#FC is available for FSTN Positive Transflective with white LED backlight, if customers require different LCD type and LED combination, please contact us.

The advantage of this module is the peripheral circuit design optimization. Below is the comparison of circuit designs of WO12864-xxxL#FC and WO12864-xxxA1#FC. For new designs, WO12864-xxxL#FC is a better choice.

WO12864-xxxL#FC WO12864-xxxA1#FC
WO12864L-TFH Pin WO12864A1-TFH Pin



DRAWING

128x64 COG Graphic STN LCD Display (ST7567A IC) - WO12864L

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 ESD ESD
2 SI2 These pins select the displey duty and bias of ST7567A
SEL2 SEL1 Duty Bias
"L" "L" 1/65 1/9 or 1/7
"L" "H" 1/49 1/8 or 1/6
"H" "L" 1/33 1/6 or 1/5
"H" "H" 1/55 1/8 or 1/6
3 VG VG is the LCD driving voltage for segment circuits
4 XV0 XV0 is the LCD driving voltage for common circuits at positive frame.
5 V0 V0 is the LCD driving voltage for common circuits at negative frame.
6 VSS GROUND
7 VDD POWER
8 SDA D[1:3] must be connected together as SDA.
D[4:7]=(1,1,1,1): ID Pin. D[4:7] should fix to “H” or “L” by VDDH or
VSSL.
9 SCL
10 A0 It determines whether the access is related to data or command. A0=“H” : Indicates that signals on D[7:0] are display data.
A0=“L” : Indicates that signals on D[7:0] are command.
11 RSTB Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
12 CSB Chip select input pin. Interface access is enabled when CSB is “L”.
When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance.
13 ESD ESD



Mechanical Data

ItemDimensionUnit
Number of dots 128 x 64 —
Module dimension 60.10 x 44.50 x 5.01(Max) mm
View area 54.6 x 32.0 mm
Active area 49.89 x 27.49 mm
Dot size 0.36 x 0.40 mm
Dot pitch 0.39 x 0.43 mm
Drive Method 1/65 DUTY, 1/9BIAS
Backlight Type LED
IC ST7567A (SPI & I2C)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VI -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 4.0 V
LCD Power supply voltage V0-XV0 -0.3 － 18.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 2.9 3.0 3.1 V
Supply Voltage For LCD
*Note		 VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
9.3
－		 －
9.5
－		 －
9.7
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － VSS － 0.3VDD V
Supply Current IDD －     2.0 mA


Products specifications
Brand Winstar
Size 2.2"
Resolution 128x65
Active Area (mm) 49.89x27.49
Dot Size 0.36x0.40
B/L color, LCD type B/L white, DFSTN black neg
Power supply 3.3V
Display Interface SPI/I2C
Display IC ST7567A
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 13
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.2"
Resolution 128x65
Active Area (mm) 49.89x27.49
Dot Size 0.36x0.40
B/L color, LCD type B/L white, DFSTN black neg
Power supply 3.3V
Display Interface SPI/I2C
Display IC ST7567A
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 13
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
