WO320240-85HE#V000-FC

Graphic LCD 3.7'' 320X240, B/L white, FSTN white pos, Transflective, COG, 3.3/5V, Interface 6800/8080, 6 O'clock, Frame, Resistive touch panel

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Monochrome graphic LCD module made of 320x240 dot matrix format with resistive touch panel. This STN COG module is built-in with RA8835 controller IC; it supports 6800 and 8080 parallel interface, 1/240 driving duty. Furthermore, it is also built-in with negative voltage generator and temperature compensation available as optional.

This model supports 3.3V and 5V power supply voltage. This module can be operated at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C. It is available in FSTN positive LCD and with White LED backlight; please contact us if you need different LCD type and LED combination.

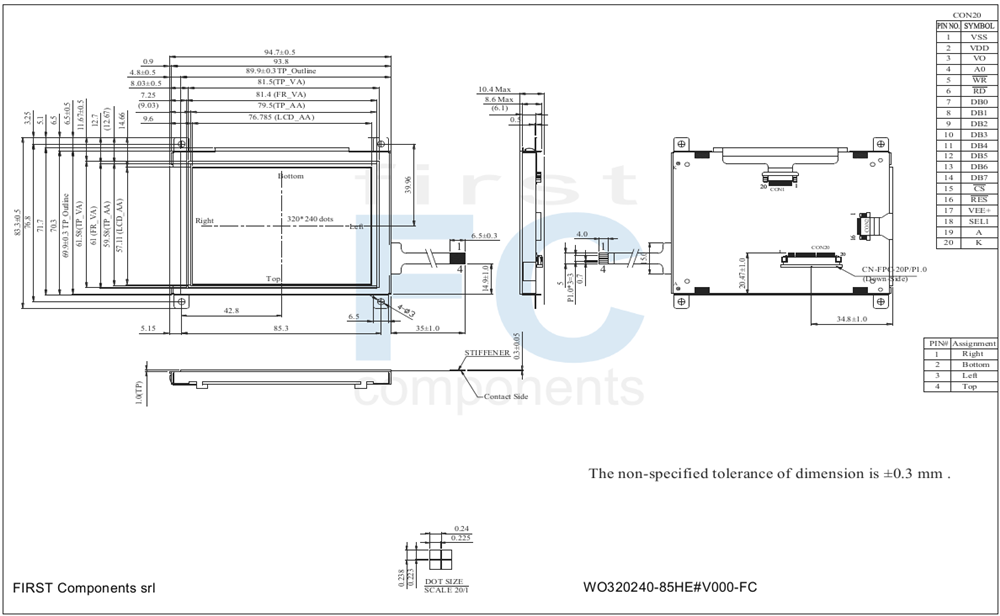

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS   Ground
2 VDD   Power supply for Logic
3 VO (Variable) Operation voltage LCD driving
4 A0 H/L H:Data  L:Instruction
5 /WR H 8080 family: Write signal, 6800 family: R/W signal
6 /RD L 8080 family: Read signal, 6800 family: Enable clock
7-14 DB0-DB7 H/L DB0 Data bus line
15 /CS H/L Chip Enable
16 /RES H/L Reset
17 VEE   Positive voltage output
18 SEL1 H/L 8080 OR 6800 Family Interface Select ; H:68xx , L:80xx
19 A   Power supply for B/L+
20 K   Power supply for B/L-



Mechanical Data

ItemStandard ValueUnit
Number of dots 320x240
Outline dimension 94.7 x 83.3 mm
View area 81.4 x 61.0 mm
Active area 76.785 x 57.11 mm
Dot size 0.223 x 0.225 mm
Dot pitch 0.238 x 0.24 mm
Duty 1/240
Backlight LED
IC RA8835
Interface 6800/8080 series



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Input Voltage VIN -0.3 VDD+0.3 V
Supply Voltage For Logic VDD-VSS -0.3 7.0 V
Supply Voltage For LCD VDD -V0 0 32 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 3.0 3.3 3.6 V
VDD-VSS 4.7 5.0 5.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃

22.7

23.0

23.3
V
V
V
Input High Volt. VIH 0.5VDD VDD V
Input Low Volt. VIL VSS 0.2VDD V
Output High Volt. VOH VDD-0.4 V
Output Low Volt. VOL VSS+0.4 V
Supply Current IDD VDD=3.3V 75 107.5 mA
IDD VDD=5.0V 36 68.5 mA
SKU: WO320240-85HE#V000-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€78.90
€69.70
€66.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€78.90 excl tax

MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Monochrome graphic LCD module made of 320x240 dot matrix format with resistive touch panel. This STN COG module is built-in with RA8835 controller IC; it supports 6800 and 8080 parallel interface, 1/240 driving duty. Furthermore, it is also built-in with negative voltage generator and temperature compensation available as optional.

This model supports 3.3V and 5V power supply voltage. This module can be operated at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C. It is available in FSTN positive LCD and with White LED backlight; please contact us if you need different LCD type and LED combination.

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS   Ground
2 VDD   Power supply for Logic
3 VO (Variable) Operation voltage LCD driving
4 A0 H/L H:Data  L:Instruction
5 /WR H 8080 family: Write signal, 6800 family: R/W signal
6 /RD L 8080 family: Read signal, 6800 family: Enable clock
7-14 DB0-DB7 H/L DB0 Data bus line
15 /CS H/L Chip Enable
16 /RES H/L Reset
17 VEE   Positive voltage output
18 SEL1 H/L 8080 OR 6800 Family Interface Select ; H:68xx , L:80xx
19 A   Power supply for B/L+
20 K   Power supply for B/L-



Mechanical Data

ItemStandard ValueUnit
Number of dots 320x240
Outline dimension 94.7 x 83.3 mm
View area 81.4 x 61.0 mm
Active area 76.785 x 57.11 mm
Dot size 0.223 x 0.225 mm
Dot pitch 0.238 x 0.24 mm
Duty 1/240
Backlight LED
IC RA8835
Interface 6800/8080 series



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Input Voltage VIN -0.3 VDD+0.3 V
Supply Voltage For Logic VDD-VSS -0.3 7.0 V
Supply Voltage For LCD VDD -V0 0 32 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 3.0 3.3 3.6 V
VDD-VSS 4.7 5.0 5.3 V
Supply Voltage For LCD VOP Ta=-20℃
Ta=25℃
Ta=70℃

22.7

23.0

23.3
V
V
V
Input High Volt. VIH 0.5VDD VDD V
Input Low Volt. VIL VSS 0.2VDD V
Output High Volt. VOH VDD-0.4 V
Output Low Volt. VOL VSS+0.4 V
Supply Current IDD VDD=3.3V 75 107.5 mA
IDD VDD=5.0V 36 68.5 mA
Products specifications
Brand Winstar
Size 3.7"
Resolution 320x240
Active Area (mm) 76.78x57.11
Dot Size 0.22x0.22
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V/5V
Display Interface 6800/8080
Display IC RA8835
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.7"
Resolution 320x240
Active Area (mm) 76.78x57.11
Dot Size 0.22x0.22
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V/5V
Display Interface 6800/8080
Display IC RA8835
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
