NE027-N001GD

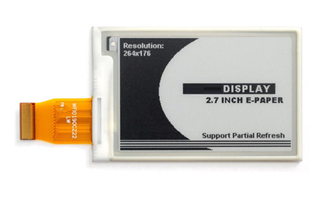

E-paper 2.7'' 264x176, Color Black on White, Interface SPI

DESCRIPTION



The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 2.7” active area contains 264×176 pixels, and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.



FEATURES

  •          High contrast
  •          High reflectance
  •          Ultra wide viewing angle
  •          Ultra low power consumption
  •          Pure reflective mode
  •          Bi-stable
  •          Commercial temperature range
  •          Landscape, portrait mode
  •          Antiglare hard-coated front-surface
  •          Low current deep sleep mode
  •          On chip display RAM
  •          Waveform stored in On-chip OTP
  •          Serial peripheral interface available
  •          On-chip oscillator
  •          On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
  •          I2C Signal Master Interface to read external temperature sensor
  •          Available in COG package IC thickness 280um
SKU: NE027-N001GD
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
Prezzo
€22,60
€20,80

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€22,60 IVA esclusa

DESCRIPTION



The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 2.7” active area contains 264×176 pixels, and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.



FEATURES

  •          High contrast
  •          High reflectance
  •          Ultra wide viewing angle
  •          Ultra low power consumption
  •          Pure reflective mode
  •          Bi-stable
  •          Commercial temperature range
  •          Landscape, portrait mode
  •          Antiglare hard-coated front-surface
  •          Low current deep sleep mode
  •          On chip display RAM
  •          Waveform stored in On-chip OTP
  •          Serial peripheral interface available
  •          On-chip oscillator
  •          On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
  •          I2C Signal Master Interface to read external temperature sensor
  •          Available in COG package IC thickness 280um
Specifiche di prodotto
Brand Next Vision Display
Size 2.7"
Risoluzione 264x176
Area Attiva (mm) 57.28x38.19
Dot Size 0.21x0.21
Colore Black on White
Interfaccia Display SPI
Display IC EK79652
Temperatura O. (°C) 0~50
Connessione Display FPC per ZIF Connector
Nr. Pin 24
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 2.7"
Risoluzione 264x176
Area Attiva (mm) 57.28x38.19
Dot Size 0.21x0.21
Colore Black on White
Interfaccia Display SPI
Display IC EK79652
Temperatura O. (°C) 0~50
Connessione Display FPC per ZIF Connector
Nr. Pin 24
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
