NT070-C001ML

TFT 7'' 1024x600, HDMI Interface, 200cd/m², Capacitive touch panel, Standard Temp., W/ Frame

DESCRIPTION

The NT070-C001ML model is a Color TFT LCD supplied by Next Vision Display. This main Module has a 7.0 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. The NT070-C001ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

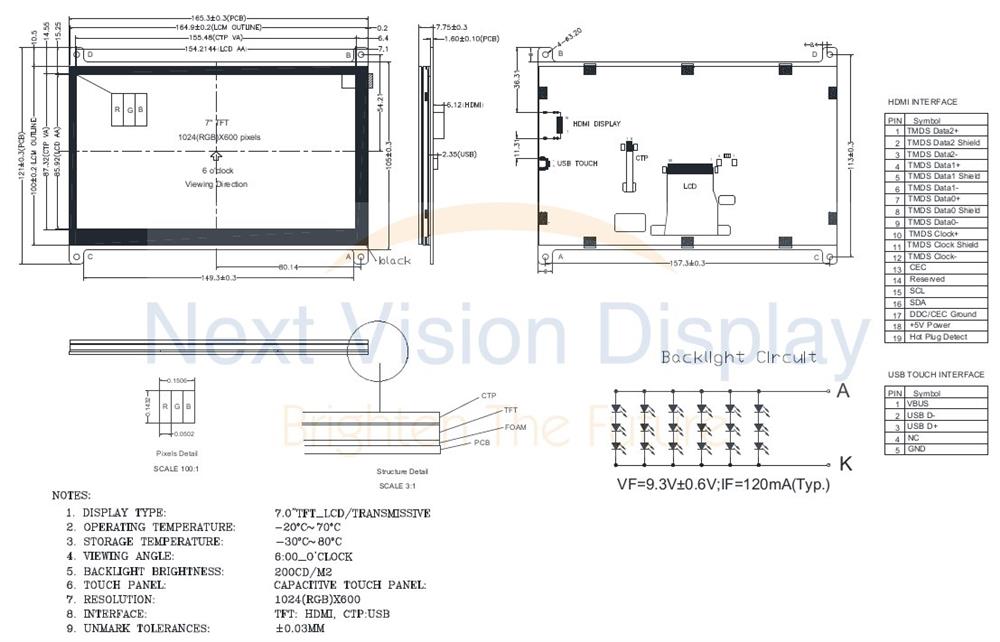

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Display Mode	Normally White, Transmissive LCD
Module Dimension	165.3(W)121.0(H)7.75(T)	mm
Resolution	1024(RGB)X 600	Pixels
Active Display Area	154.21(W)×85.92(H)	mm
Viewing Direction	12 O’clock	--
Gray inversion direction	6 O’clock
LED Backlight Color	White	--
Interface	LCD:HDMI, CTP:USB	--
Power supply	USB(5.0V)
Support system	Win/7/Win8/Win10(plug and play)
Support system	Android,Linux (configured in requests)
Power Consumption	485(Typ)	mA

Absolute Max Rating

Item	Min	Typ	Max	Unit	Remark
Operating temperature	-20	--	70	°C
Storage temperature	-30	--	80	°C
Humidity	--	--	80%	RH	@60°C

Optical Specification

Item	Symbol	Condition	Min	Max		Unit	Note
Brightness	Bp	e=0° F=0°	150	200	-	cd/m²
Uniformity	△Bp	e=0° F=0°	70	75	-	%
Viewing Angle	e1 (0=90° or270°)	12 o’clock	50	60	-	Deg	Cr≥10
	e1 (0=90° or270°)	6 o’clock	60	70	-
	e2 (0=0° or 180°)	9 o’clock	60	70	-
	e2 (0=0° or 180°)	3 o’clock	60	70	-
CIE	Wx	e=0° F=0°	0.26	0.30	0.36
CIE	Wy		0.28	0.33	0.38
Contrast Ratio	Cr		400	500		-
Response Time	ton		-	25	50	ms

SKU: NT070-C001ML

Brand: Next Vision Display

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Touch-Panel Connector
Added Board
Added Accessory 1

Prezzi per quantità

Quantità

10+

Prezzo

€98,30

€74,10

€69,20

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€98,30 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Display Mode	Normally White, Transmissive LCD
Module Dimension	165.3(W)121.0(H)7.75(T)	mm
Resolution	1024(RGB)X 600	Pixels
Active Display Area	154.21(W)×85.92(H)	mm
Viewing Direction	12 O’clock	--
Gray inversion direction	6 O’clock
LED Backlight Color	White	--
Interface	LCD:HDMI, CTP:USB	--
Power supply	USB(5.0V)
Support system	Win/7/Win8/Win10(plug and play)
Support system	Android,Linux (configured in requests)
Power Consumption	485(Typ)	mA

Absolute Max Rating

Item	Min	Typ	Max	Unit	Remark
Operating temperature	-20	--	70	°C
Storage temperature	-30	--	80	°C
Humidity	--	--	80%	RH	@60°C

Optical Specification

Item	Symbol	Condition	Min	Max		Unit	Note
Brightness	Bp	e=0° F=0°	150	200	-	cd/m²
Uniformity	△Bp	e=0° F=0°	70	75	-	%
Viewing Angle	e1 (0=90° or270°)	12 o’clock	50	60	-	Deg	Cr≥10
	e1 (0=90° or270°)	6 o’clock	60	70	-
	e2 (0=0° or 180°)	9 o’clock	60	70	-
	e2 (0=0° or 180°)	3 o’clock	60	70	-
CIE	Wx	e=0° F=0°	0.26	0.30	0.36
CIE	Wy		0.28	0.33	0.38
Contrast Ratio	Cr		400	500		-
Response Time	ton		-	25	50	ms
