TST0007R0G4111XXXX07

Capacitive (GG) Touch panel 7'', O.D. 164.40x99.45mm, I2C interface (ILI2130 IC), FPC per ZIF Connector (suitable for WF70G/A2/A7/A8/M/P/Q/Y families), Cover glass thickness 1.8mm

DESCRIPTION

Cover Lens Thickness Options for Winstar 7" TFT Displays

For industrial applications, thick cover lenses provide extra protection for TFT Displays. Putting hardened cover lens on the TFT module can protect it from mechanical damages. Winstar provides three kinds of thickness options for our 7 inch TFT-LCD modules which are including 0.7mm, 1.8mm and 3.0mm in thickness.

Below is a comparison chart for reference, the higher IK code which means for better impact protection. The IK Code, or impact rating, is an international numeric classification for the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. We recommend customers can choose proper thickness of cover lens for your applications. Winstar also can offer custom solutions for customers needing thick cover lens. Please note, the thickness of cover lens will affect the touch sensitivity; the thinner cover lens usually the touch sensitivity will be better than thicker ones.

Remark: Below information is reference only, welcome to contact our engineering team for different sizes of cover lens for applications.

TP Part No.Winstar 7"cover lensImpact protection Detect  pointsWaterproofTouch sensitivity
thicknessIK Code
TST0007R0G4111XXXX06 0.7 mm (standard) IK03 max 10 Good Great
TST0007R0G4111XXXX07 1.8 mm IK06 max 10 Normal Good
TST0007R0G4111XXXX08 3.0 mm IK07 max 10 Normal Normal


Support TFT series: WF70G, WF70A2, WF70A7, WF70A8, WF70M, WF70P, WF70Q, WF70Y

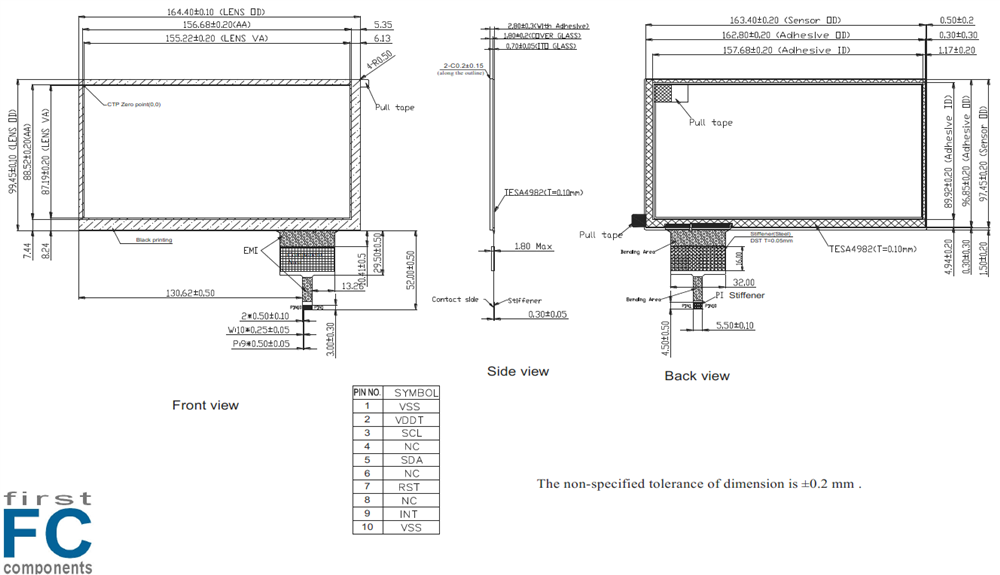

DRAWING

SPECIFICATIONS

Construction:

ConstructionMaterialsComment
COVER LENS GLASS Thickness:0.7mm
LOCA Adhesive Thickness:0.2mm
ITO Glass ITO glass Thickness:0.7mm



Mechanical characteristics:

ItemDescriptionUnit
Outline dimension 164.40±0.1 × 99.45±0.1 mm
View Area 155.22±0.2 × 87.19±0.2 mm
Active Area 156.68 × 88.52 mm
Thickness 1.7±0.15 (with AD) mm
Input Method Finger
Hardness Of Surface Hard Surface : ≥7H
Accuracy +/-1mm@10mm mm
Support Operation Finger 5 Finger
Channel 15 × 27
Interface I2C
Supported Operating Systems Android2.0-4.2Windows
IC ILI2130s



Interface Pin Function

PIN NoSymbolFunction
1 GND Ground for analog circuit
2 VDDT Power Supply
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 GND Ground for analog circuit
SKU: TST0007R0G4111XXXX07
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€36,90
€29,50
€25,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€36,90 IVA esclusa

DESCRIPTION

Cover Lens Thickness Options for Winstar 7" TFT Displays

For industrial applications, thick cover lenses provide extra protection for TFT Displays. Putting hardened cover lens on the TFT module can protect it from mechanical damages. Winstar provides three kinds of thickness options for our 7 inch TFT-LCD modules which are including 0.7mm, 1.8mm and 3.0mm in thickness.

Below is a comparison chart for reference, the higher IK code which means for better impact protection. The IK Code, or impact rating, is an international numeric classification for the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. We recommend customers can choose proper thickness of cover lens for your applications. Winstar also can offer custom solutions for customers needing thick cover lens. Please note, the thickness of cover lens will affect the touch sensitivity; the thinner cover lens usually the touch sensitivity will be better than thicker ones.

Remark: Below information is reference only, welcome to contact our engineering team for different sizes of cover lens for applications.

TP Part No.Winstar 7"cover lensImpact protection Detect  pointsWaterproofTouch sensitivity
thicknessIK Code
TST0007R0G4111XXXX06 0.7 mm (standard) IK03 max 10 Good Great
TST0007R0G4111XXXX07 1.8 mm IK06 max 10 Normal Good
TST0007R0G4111XXXX08 3.0 mm IK07 max 10 Normal Normal


Support TFT series: WF70G, WF70A2, WF70A7, WF70A8, WF70M, WF70P, WF70Q, WF70Y

DRAWING

SPECIFICATIONS

Construction:

ConstructionMaterialsComment
COVER LENS GLASS Thickness:0.7mm
LOCA Adhesive Thickness:0.2mm
ITO Glass ITO glass Thickness:0.7mm



Mechanical characteristics:

ItemDescriptionUnit
Outline dimension 164.40±0.1 × 99.45±0.1 mm
View Area 155.22±0.2 × 87.19±0.2 mm
Active Area 156.68 × 88.52 mm
Thickness 1.7±0.15 (with AD) mm
Input Method Finger
Hardness Of Surface Hard Surface : ≥7H
Accuracy +/-1mm@10mm mm
Support Operation Finger 5 Finger
Channel 15 × 27
Interface I2C
Supported Operating Systems Android2.0-4.2Windows
IC ILI2130s



Interface Pin Function

PIN NoSymbolFunction
1 GND Ground for analog circuit
2 VDDT Power Supply
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 GND Ground for analog circuit
Specifiche di prodotto
Brand Winstar
Size 7"
Area Attiva (mm) 156.68x88.52
Interfaccia Display I2C
Connessione Display FPC per ZIF Connector
Nr. Pin 10
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Area Attiva (mm) 156.68x88.52
Interfaccia Display I2C
Connessione Display FPC per ZIF Connector
Nr. Pin 10
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Preferred
