WF20-240320BD#0SP0-FC

TFT 2'' 240x320, Portrait, LCD + IC Controller, Interface MCU (Parallel/SPI) IC ST7789VI, High Brightness 950cd/m², Wide View Angle (O-Film), No touch

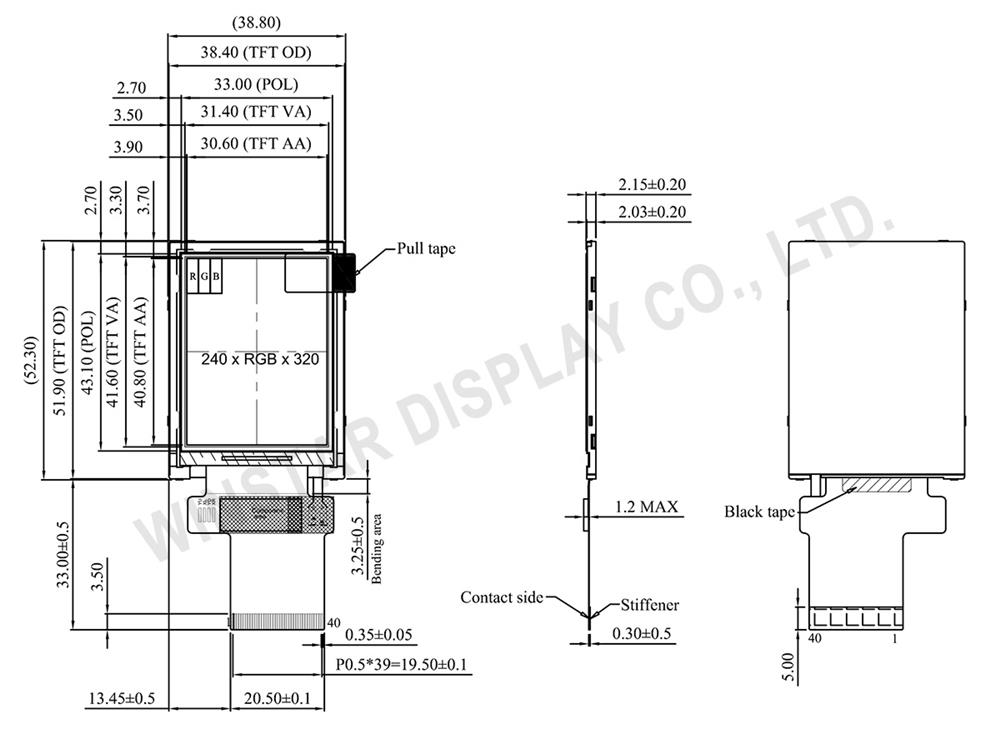

DRAWING



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 NC No connection
3 NC No connection
4 NC No connection
5 NC No connection
6 NC No connection
7 VDD Power supply
8 VDDI Power Supply for I/O System.
9 TE Tearing effect signal is used to synchronize MCU to frame memory
writing.
If not used, please let this pin open
10 CSX Chip selection pin
Low enable.
High disable.
11 DCX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
DCX=’1’: display data or parameter.
DCX=’0’: command data.
(SCL): When SPI mode,This pin is used to be serial interface clock.
12 WRX(D/CX) Display data/command selection
Second Data lane in 2 data lane serial interface.
(WRX): Write enable in MCU parallel interface.
(D/CX): When 4-SPI mode,This pin in 4-line serial interface
If not used, please fix this pin at VDDI or GND.
13 RDX -Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at VDDI or GND.
14~29 DB0~DB15 Data bus line
30 RESX System reset pin.
signal is active low
31 IM0 The MCU interface mode select.
IM2IM1IM0MPU Interface ModeData pin
0 0 0 80-8bit parallel I/F DB[7:0]
0 0 1 80-16bit parallel I/F DB[15:0]
0 1 0 80-9bit parallel I/F DB[8:0]
0 1 1 80-18bit parallel I/F DB[17:0]
1 0 1 3-line 9bit serial I/F SDA: in/out
1 1 0 4-line 8bit serial I/F SDA: in/out
32 IM1
33 IM2
34~35 DB16~DB17 Data bus line
36 VLED- Cathode of LED backlight.
37 VLED- Cathode of LED backlight.
38 VLED+ Anode of LED backlight.
39 NC(SDA) When SPI mode, This pin is SPI interface input/output pin.
The data is latched on the rising edge of the SCL signal.
If not used(NC), please fix this pin at VDDI or GND level.
40 NC No connection



General Specifications

ItemDimensionUnit
Size 2 inch
Dot Matrix 240 x RGB x 320(TFT) dots
Module dimension 38.8(W) x 52.3(H) x 2.15(D) mm
Active area 30.60 x 40.80 mm
Pixel Pitch 0.1275 x 0.1275 mm
LCD type TFT, Normally Black, Transmissive
TFT Interface MCU / SPI
TFT Driver IC ST7789VI or Equivalent
Viewing angle 80/80/80/80
Aspect Ratio 3:4
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VDD 2.4 3.3 3.6 V
Interface Operation Voltage VDDI 1.65 1.8 3.6 V
Supply Current For LCM IDD VDD = VDDI
= VCC=3.0V
6.0 9.0 mA


SKU: WF20-240320BD#0SP0-FC
Brand: Winstar
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€15,90
€11,60
€10,00
€9,70

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€15,90 IVA esclusa

DRAWING



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 NC No connection
3 NC No connection
4 NC No connection
5 NC No connection
6 NC No connection
7 VDD Power supply
8 VDDI Power Supply for I/O System.
9 TE Tearing effect signal is used to synchronize MCU to frame memory
writing.
If not used, please let this pin open
10 CSX Chip selection pin
Low enable.
High disable.
11 DCX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
DCX=’1’: display data or parameter.
DCX=’0’: command data.
(SCL): When SPI mode,This pin is used to be serial interface clock.
12 WRX(D/CX) Display data/command selection
Second Data lane in 2 data lane serial interface.
(WRX): Write enable in MCU parallel interface.
(D/CX): When 4-SPI mode,This pin in 4-line serial interface
If not used, please fix this pin at VDDI or GND.
13 RDX -Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at VDDI or GND.
14~29 DB0~DB15 Data bus line
30 RESX System reset pin.
signal is active low
31 IM0 The MCU interface mode select.
IM2IM1IM0MPU Interface ModeData pin
0 0 0 80-8bit parallel I/F DB[7:0]
0 0 1 80-16bit parallel I/F DB[15:0]
0 1 0 80-9bit parallel I/F DB[8:0]
0 1 1 80-18bit parallel I/F DB[17:0]
1 0 1 3-line 9bit serial I/F SDA: in/out
1 1 0 4-line 8bit serial I/F SDA: in/out
32 IM1
33 IM2
34~35 DB16~DB17 Data bus line
36 VLED- Cathode of LED backlight.
37 VLED- Cathode of LED backlight.
38 VLED+ Anode of LED backlight.
39 NC(SDA) When SPI mode, This pin is SPI interface input/output pin.
The data is latched on the rising edge of the SCL signal.
If not used(NC), please fix this pin at VDDI or GND level.
40 NC No connection



General Specifications

ItemDimensionUnit
Size 2 inch
Dot Matrix 240 x RGB x 320(TFT) dots
Module dimension 38.8(W) x 52.3(H) x 2.15(D) mm
Active area 30.60 x 40.80 mm
Pixel Pitch 0.1275 x 0.1275 mm
LCD type TFT, Normally Black, Transmissive
TFT Interface MCU / SPI
TFT Driver IC ST7789VI or Equivalent
Viewing angle 80/80/80/80
Aspect Ratio 3:4
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VDD 2.4 3.3 3.6 V
Interface Operation Voltage VDDI 1.65 1.8 3.6 V
Supply Current For LCM IDD VDD = VDDI
= VCC=3.0V
6.0 9.0 mA


Specifiche di prodotto
Brand Winstar
Size 2"
Risoluzione 240x320
Area Attiva (mm) 30.60x40.80
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ST7789VI
Angolo Visione IPS
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2"
Risoluzione 240x320
Area Attiva (mm) 30.60x40.80
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ST7789VI
Angolo Visione IPS
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
