WF24-240320LD#0SP0-FC

Immagine di WF24-240320LD#0SP0-FC Immagine di WF24-240320LD#0SP0-FC
TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ILI9341V, High Brightness 1000cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

The WF24-240320LD#0SP0-FC is a 2.4-inch portrait IPS TFT display module with a resolution of 240x320 pixels and high brightness of 1000 nits, ensuring excellent readability in strong ambient light. With 80° wide viewing angles in all directions and a contrast ratio of 800:1, it delivers vibrant and consistent image quality for compact vertical applications.

This model is driven by the widely adopted ILI9341V driver IC and supports both 80 MCU 8/16/9-bit parallel interfaces and 3-wire 9-bit / 4-wire 8-bit SPI serial interfaces. With a robust operating temperature range and an LED backlight lifetime of over 30,000 hours, the WF24-240320LD#0SP0-FC is ideal for handheld instruments, medical devices, and outdoor control panels that require reliable display performance in a portrait layout.

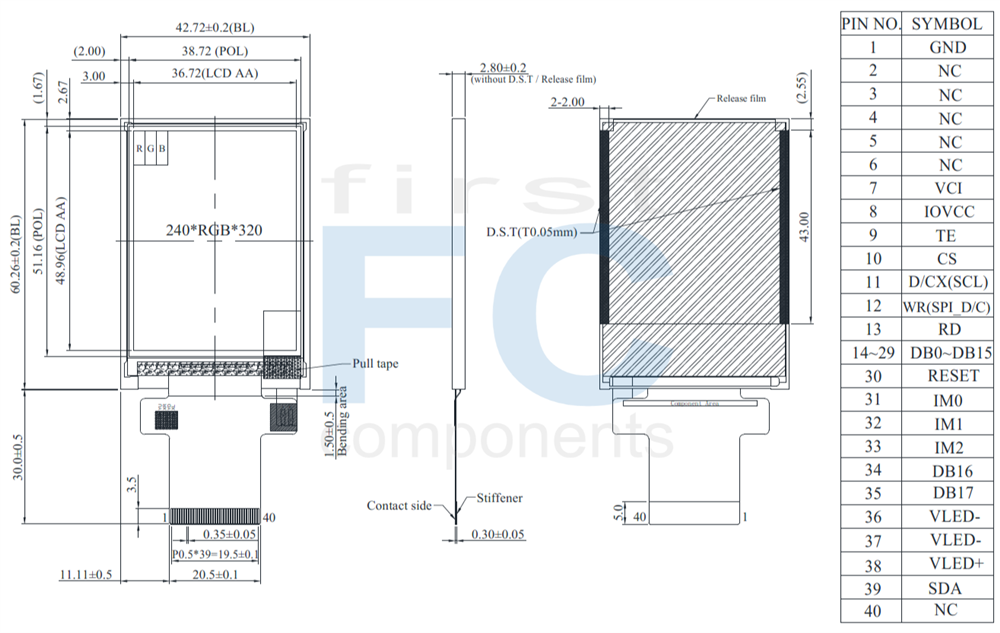

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.8(D) mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
Controller IC ILI9341V or equivalent
Viewing angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 — 3.3 V
Supply Voltage For Logic IOVCC 2.5 — 3.3 V
Supply Current For LCM ICC — 6 9 mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current — — 40 — mA
LED voltage VBL+ 10.8 11.6 12.4 V
LED Life Time — 30,000 — — Hr



Interface Pin Function

NOSymbolFunctionI/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)		 P
8 IOVCC Low voltage power supply for interface logic circuits
(2.5 ~ 3.3 V)		 P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.		 O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire
9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to IOVCC or GND.		 I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to IOVCC level when not in use.		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC level when not in use.		 I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.
Fix to GND level when not in use.		 I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.		 I
31 IM0 Select the MCU interface mode
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA: In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA: In/OUT
MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at IOVCC or GND.		 I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode
Fix to GND level when not in use.		 I/O
35 DB17
36 VLED- Cathode of LED backlight. P
37 VLED- Cathode of LED backlight. P
38 VLED+ Anode of LED backlight. P
39 SDA SDA : Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin N

SKU: WF24-240320LD#0SP0-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
Prezzo
€13,00
€9,50

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€13,00 IVA esclusa

DESCRIPTION

The WF24-240320LD#0SP0-FC is a 2.4-inch portrait IPS TFT display module with a resolution of 240x320 pixels and high brightness of 1000 nits, ensuring excellent readability in strong ambient light. With 80° wide viewing angles in all directions and a contrast ratio of 800:1, it delivers vibrant and consistent image quality for compact vertical applications.

This model is driven by the widely adopted ILI9341V driver IC and supports both 80 MCU 8/16/9-bit parallel interfaces and 3-wire 9-bit / 4-wire 8-bit SPI serial interfaces. With a robust operating temperature range and an LED backlight lifetime of over 30,000 hours, the WF24-240320LD#0SP0-FC is ideal for handheld instruments, medical devices, and outdoor control panels that require reliable display performance in a portrait layout.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 2.8(D) mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
Controller IC ILI9341V or equivalent
Viewing angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 — 3.3 V
Supply Voltage For Logic IOVCC 2.5 — 3.3 V
Supply Current For LCM ICC — 6 9 mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current — — 40 — mA
LED voltage VBL+ 10.8 11.6 12.4 V
LED Life Time — 30,000 — — Hr



Interface Pin Function

NOSymbolFunctionI/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)		 P
8 IOVCC Low voltage power supply for interface logic circuits
(2.5 ~ 3.3 V)		 P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.		 O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire
9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to IOVCC or GND.		 I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to IOVCC level when not in use.		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC level when not in use.		 I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.
Fix to GND level when not in use.		 I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.		 I
31 IM0 Select the MCU interface mode
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA: In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA: In/OUT
MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at IOVCC or GND.		 I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode
Fix to GND level when not in use.		 I/O
35 DB17
36 VLED- Cathode of LED backlight. P
37 VLED- Cathode of LED backlight. P
38 VLED+ Anode of LED backlight. P
39 SDA SDA : Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin N

Specifiche di prodotto
Brand Winstar
Size 2.4"
Risoluzione 240x320
Area Attiva (mm) 36.72x48.96
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ILI9341V
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.4"
Risoluzione 240x320
Area Attiva (mm) 36.72x48.96
Colore Full Color
Interfaccia Display MCU (Parallel/SPI)
Display IC ILI9341V
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
