WF35-320480UD#0P0-FC

Immagine di WF35-320480UD#0P0-FC Immagine di WF35-320480UD#0P0-FC
TFT 3.5" 320x480 Portrait LCD Panel, Interface MCU (Parallel/RGB/SPI) IC ILI9488, 600cd/m², Wide View Angle (IPS), No touch

DESCRIPTION

WF35-320480UD#0P0-FC is a 3.5-inch IPS panel with a 320x480 pixel resolution TFT LCD module. This module is built in with the ILI9488 IC; it supports MCU, 3-Line SPI interface / RGB interface+3-SPI and features a brightness of 600 nits (typical value).

This 3.5” TFT LCD module is in portrait mode with an IPS (In-Plane Switching) panel, which has the advantage of a wider viewing angle of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees (typical). The WF35-320480UD#0P0-FC module can operate at temperatures from -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃.



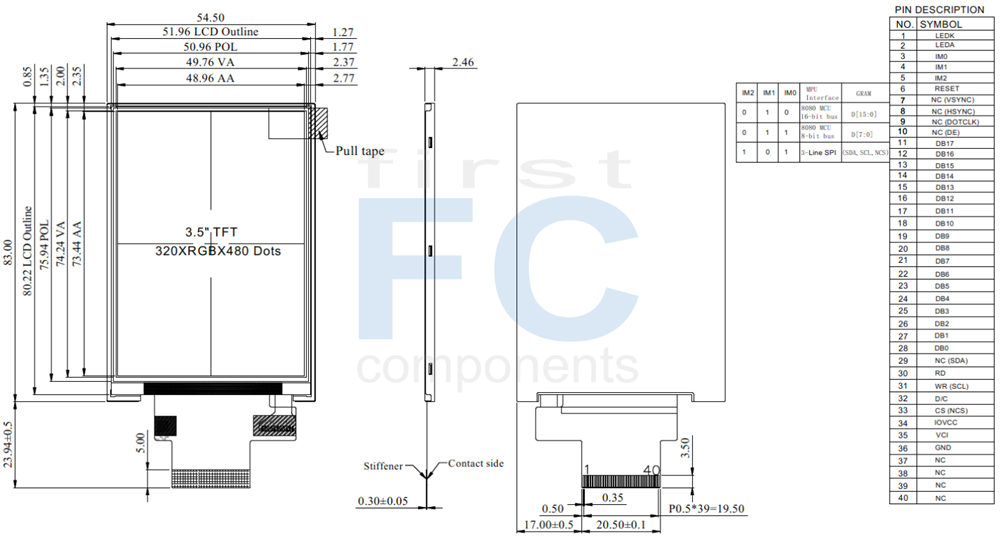

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 480(TFT) dots
Module dimension 54.5 (W) × 83.0 (H) × 2.46(D) mm
Active area 48.96 × 73.44 mm
Pixel pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio Portrait
Driver IC ILI9488
Interface MCU 8/16/18-bit, 3-SPI ,RGB interface+3-SPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC － 1.8 3.0 3.3 V
Supply Voltage for analog VCI － 2.8 3.0 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.3V		 － 13.5 20.5 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 160 － mA
LED voltage LEDA 2.7 3.2 3.4 V
LED Life Time － － 50000 － Hr



Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 LEDK Cathode of LED backlight P
2 LEDA Anode of LED backlight. P
3 IM0 Note 1 I
4 IM1 Note 1 I
5 IM2 Note 1 I
6 RESET System reset pin. I
7 NC(VS) No Connection (Vrtical Sync signal; Note 2) I
8 NC(HS) No Connection (Horizontal Sync signal ; Note 2) I
9 NC(DCLK) No Connection (Pixel clock signal; Note 2) I
10 NC(DE) No Connection (Data Enable; Note 2) I
11-16 DB17-12 Data bus (R5~R0; RGB-18bit Pixel; Note 2) I
17-22 DB11-6 Data bus (G5~G0; RGB-18bit Pixel; Note 2) I
23-28 DB5-0 Data bus (B5~B0; RGB-18bit Pixel; Note 2) I
29 NC (SDA) Connection (serial data input/output pin) I
30 RD Read strobe signal. Read out data when RDX is Low. I
31 WR (SCL) Write data when WRX is Low.(serial clock input pin) I
32 D/C register select I
33 CS (NCS) Chip select signal (serial chip select input pin) I
34 IOVCC Power supply (TYP:1.8V/2.8V). P
35 VCI Power supply(TYP:2.8V). P
36 GND Ground P
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection

Note 1:
IM2IM1IM0MPU  InterfaceGRAM
0 0 0 8080 MCU 18-bit bus D[17:0]
0 1 0 8080 MCU 16-bit bus D[15:0]
0 1 1 8080 MCU 8-bit bus D[7:0]
1 0 1 3-Line SPI SDA,SCL,NCS
1 0 1 RGB interface+3-SPI D[17:0] (RGB-18bit/Pixel)
D[15:0] (RGB-16bit/Pixel)
Note 2:
This module suggests function is for 8080 MCU mode, if this module wants change to use RGB Interface mode, please setting external pin IM [2:0] as 101 (3-SPI Initial code setting RGB-18bit/Pixel or RGB-16bit/Pixel),and reference the 7.5. RGB Interface Selection
SKU: WF35-320480UD#0P0-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€19,70
€15,70
€13,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€19,70 IVA esclusa

DESCRIPTION

WF35-320480UD#0P0-FC is a 3.5-inch IPS panel with a 320x480 pixel resolution TFT LCD module. This module is built in with the ILI9488 IC; it supports MCU, 3-Line SPI interface / RGB interface+3-SPI and features a brightness of 600 nits (typical value).

This 3.5” TFT LCD module is in portrait mode with an IPS (In-Plane Switching) panel, which has the advantage of a wider viewing angle of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees (typical). The WF35-320480UD#0P0-FC module can operate at temperatures from -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 320 × RGB × 480(TFT) dots
Module dimension 54.5 (W) × 83.0 (H) × 2.46(D) mm
Active area 48.96 × 73.44 mm
Pixel pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
View Direction  80/80/80/80
Aspect Ratio Portrait
Driver IC ILI9488
Interface MCU 8/16/18-bit, 3-SPI ,RGB interface+3-SPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － 70 ℃
Storage Temperature TST -30 － 80 ℃



Electronical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for digital IOVCC － 1.8 3.0 3.3 V
Supply Voltage for analog VCI － 2.8 3.0 3.3 V
Power Supply for Current ICC IOVCC=VCI
=VCC=3.3V		 － 13.5 20.5 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 160 － mA
LED voltage LEDA 2.7 3.2 3.4 V
LED Life Time － － 50000 － Hr



Interface

LCM PIN Definition

NOSymbolFunctionI/O
1 LEDK Cathode of LED backlight P
2 LEDA Anode of LED backlight. P
3 IM0 Note 1 I
4 IM1 Note 1 I
5 IM2 Note 1 I
6 RESET System reset pin. I
7 NC(VS) No Connection (Vrtical Sync signal; Note 2) I
8 NC(HS) No Connection (Horizontal Sync signal ; Note 2) I
9 NC(DCLK) No Connection (Pixel clock signal; Note 2) I
10 NC(DE) No Connection (Data Enable; Note 2) I
11-16 DB17-12 Data bus (R5~R0; RGB-18bit Pixel; Note 2) I
17-22 DB11-6 Data bus (G5~G0; RGB-18bit Pixel; Note 2) I
23-28 DB5-0 Data bus (B5~B0; RGB-18bit Pixel; Note 2) I
29 NC (SDA) Connection (serial data input/output pin) I
30 RD Read strobe signal. Read out data when RDX is Low. I
31 WR (SCL) Write data when WRX is Low.(serial clock input pin) I
32 D/C register select I
33 CS (NCS) Chip select signal (serial chip select input pin) I
34 IOVCC Power supply (TYP:1.8V/2.8V). P
35 VCI Power supply(TYP:2.8V). P
36 GND Ground P
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection

Note 1:
IM2IM1IM0MPU  InterfaceGRAM
0 0 0 8080 MCU 18-bit bus D[17:0]
0 1 0 8080 MCU 16-bit bus D[15:0]
0 1 1 8080 MCU 8-bit bus D[7:0]
1 0 1 3-Line SPI SDA,SCL,NCS
1 0 1 RGB interface+3-SPI D[17:0] (RGB-18bit/Pixel)
D[15:0] (RGB-16bit/Pixel)
Note 2:
This module suggests function is for 8080 MCU mode, if this module wants change to use RGB Interface mode, please setting external pin IM [2:0] as 101 (3-SPI Initial code setting RGB-18bit/Pixel or RGB-16bit/Pixel),and reference the 7.5. RGB Interface Selection
