TFT 8.8" 1920x480, Multi-Interface Edge AI Development System, MCU STM32N6 with NPU, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

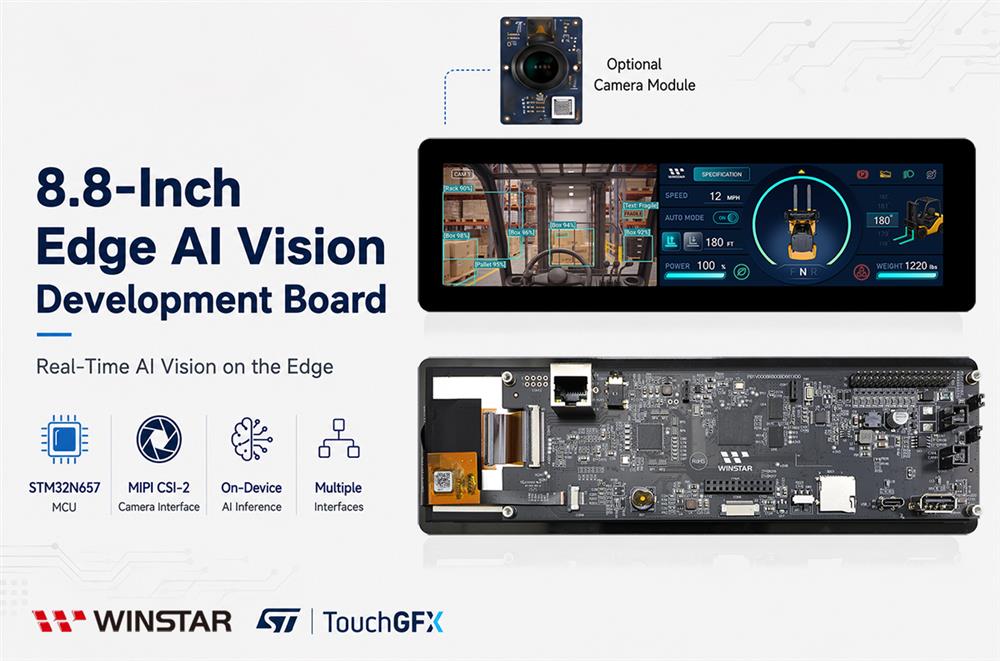

WINSTAR's WL0F00088000BGXAANA00-FC is the industry's first 8.8-inch bar-type AI development board based on the STM32N6 MCU. Designed for embedded AI and STM32 AI development, it integrates an ultra-wide IPS touch display, MIPI CSI-2 and parallel camera interfaces, and on-device AI processing into a validated MCU-based platform.


Edge AI Processing on an MCU Platform

For embedded AI applications that do not require a Linux operating system, the STM32N657 enables developers to implement vision AI and advanced graphical HMI on an MCU architecture, shortening boot time, and lowering overall system cost. Supporting both MIPI CSI-2 and parallel camera interfaces, it enables real-time image recognition, object detection, anomaly detection, while enhancing data privacy. Beyond camera vision, the platform also supports audio input, enabling offline wake-word detection and speech recognition on the HMI.


Optimized for AI Vision and Ultra-Wide HMI Applications

Unlike conventional displays sizes, the 8.8-inch IPS display with PCAP touch is specifically designed for space constraint 2U rack applications. Featuring a 1920 × 480 resolution and a 4:1 bar-type aspect ratio, it is optimized for AI vision on ultra-wide HMI applications where installation height is limited but wide information layouts are required. It enables live camera streaming with AI inference results, system status, controls, and alerts to be presented simultaneously on a single screen.

Typical applications include smart appliances, industrial control panels, off-highway vehicles dashboards, equipment monitoring systems, and embedded AI vision systems.

To accelerate AI vision development, WINSTAR offers a complete Demo Kit that combines the 8.8" HMI development board, validated camera module, and essential accessories into a ready-to-evaluate platform for embedded AI applications.

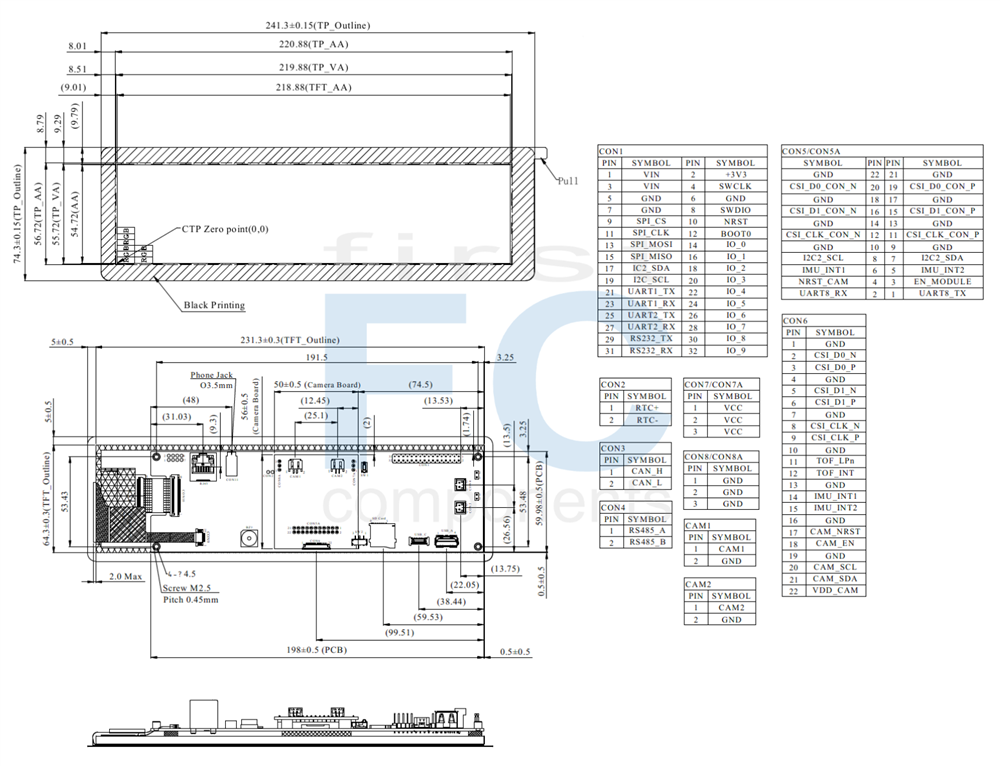

DRAWING

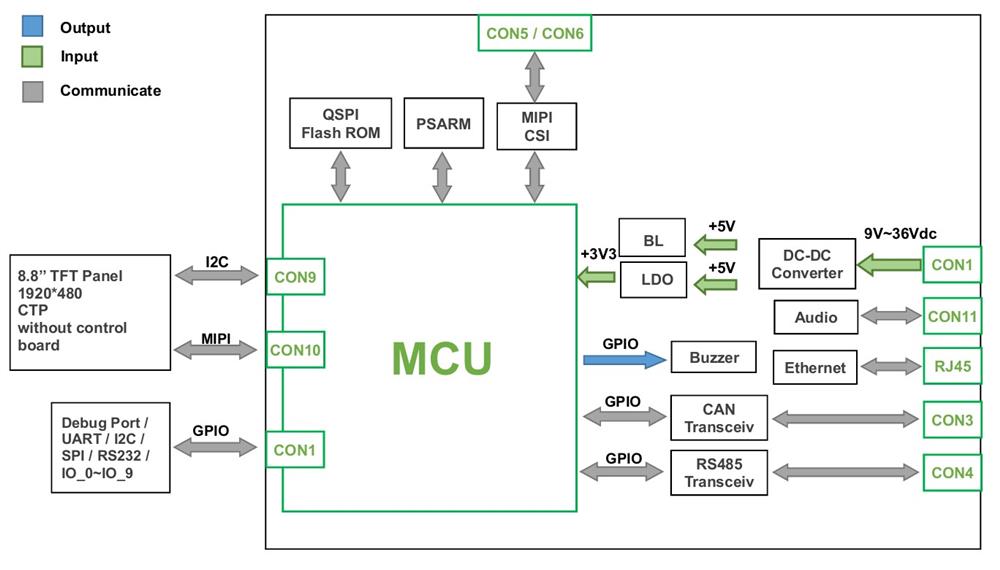

Block Diagram

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 9V~36V dynamic Vdc
Communication Interface  CANFD / RS485 / RS232 / UART / LAN / SPI / I2C / USB N/A
MCU  STM32N657 N/A
RAM 32 MB
Flash Memory 64 MB
LCD display size 8.8 inch
Dot Matrix 1920 x RGB x 480(TFT) dot
Module dimension 241.3(W) x 74.3(H) x 28.7(D) mm
Active area 218.88 (H) x 54.72(V) mm
Pixel pitch 0.114(W) x 0.114(H) mm
Brightness Min:350; Typ:450 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 1:4 (Bar Type)
Touch Panel With Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VIN － 9 12 36 V
Supply LCM Current I(mA) － 420 300 105 mA



BOM

ItemDescription
LCM WF88-4801920BM#0P15-FC
PCBA PB4V0008R800BD661X00



Interface Pin Function

CON1 definition:

PinSymbolFunctionRemark
1 VIN Power supply input V+ Input
2 +3V3 3.3V power for JTAG interface Output
3 VIN Power supply input V+ Input
4 SWCLK CLK pin for JTAG interface I/O
5 GND Power supply GND input GND
6 GND Power supply GND input GND
7 GND Power supply GND input GND
8 SWDIO Data pin for JTAG interface I/O
9 SPI_CS SPI Chip select interface Input
10 NRST Reset pin for JTAG interface Input
11 SPI_CLK SPI Clock interface I/O
12 BOOT0 Power supply GND input Input
13 SPI_MOSI SPI MOSI interface Output
14 IO_0 Timer, Event, I/O PB5
15 SPI_MISO SPI MISO interface Input
16 IO_1 ADC, Timer, Event, I/O PA9
17 I2C_SDA I2C SDA interface I/O
18 IO_2 ADC, Timer, Event, I/O PA10
19 I2C_SCL I2C SCL interface I/O
20 IO_3 ADC, Timer, Event, I/O PB10
21 UART1_TX UART TX interface Output
22 IO_4 DAC, Timer, Event, I/O PB3
23 UART1_RX UART RX interface Input
24 IO_5 PWM, Timer, Event, I/O PE7
25 UART2_TX UART TX interface Output
26 IO_6 PWM, Timer, Event, I/O PE8
27 UART2_RX UART RX interface Input
28 IO_7 PWM, Timer, Event, I/O PE9
29 RS232_TX RS232 TX interface Output
30 IO_8 PWM, Timer, Event, I/O PE10
31 RS232_RX RS232 RX interface Input
32 IO_9 PWM, Timer, Event, I/O PE12


CON3 definition:

PinSymbolFunctionRemark
1 CAN_H CAN BUS High interface I/O
2 CAN_L CAN BUS Low interface I/O


CON4 definition:

PinSymbolFunctionRemark
1 RS485_A RS485 A interface I/O
2 RS485_B RS485 B interface I/O


CON6 definition:

PinSymbolFunctionRemark
1 GND Power GND GND
2 CSI_D0_N MIPI CSI D0 negative signal I/O
3 CSI_D0_P MIPI CSI D0 positive signal I/O
4 GND Power GND GND
5 CSI_D1_N MIPI CSI D1 negative signal I/O
6 CSI_D1_P MIPI CSI D1 positive signal I/O
7 GND Power GND GND
8 CSI_CLK_N MIPI CSI clock negative signal I/O
9 CSI_CLK_P MIPI CSI clock positive signal I/O
10 GND Power GND GND
11 TOF_LPn TOF LPn interface I/O
12 TOF_INT TOF INT interface Input
13 GND Power GND GND
14 IMU_INT1 IMU INT1 interface Input
15 IMU_INT2 IMU INT2 interface Input
16 GND Power GND GND
17 CAM_NRST Camera Reset Input
18 CAM_EN Camera Enable Input
19 GND Power GND GND
20 CAM_SCL Camera SCL interface I/O
21 CAM_SDA Camera SDA interface I/O
22 VDD_CAM Power supply +3.3V Input
