WO1602AT-89LN#FC

Character LCD 2.25'' 16x2, B/L white, VATN, COG, 3.3V, Interface I2C, 12 O'clock, FFC Cable

DESCRIPTION

WO1602N model is a COG structure VATN LCD module made of 16-characters by 2-lines with VA Negative Transmissive LCD, available in white LED. WO1602N module is built-in with ST7028-1A IC; it communicates via I2C interface, viewing direction 6 o'clock, 1/17 duty, and 1/5 Bias.

This VATN WO1602N and our existing COG LCD WO1602G and COB LCD WH1602B models have the same VA and AA sizes but have a different pinout. WO1602G has a mental pinout, as WO1602N designed a FPC pinout for easy use to control the module by a ZIP connector. The supply voltage for logic of WO1602N is 3V to 3.6V, the typical value of 3.3V. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

This WO1602N VATN (Vertical Alignment Twisted Nematic) display offers superior performance to traditional STN/FSTN and DFSTN displays. This 16x2 VATN display features higher contrast and wider viewing angles than those currently provided by standard STN/FSTN/DFSTN displays. It is a negative mode display with a transmissive polarizer. In VATN LCD Display, liquid crystals naturally align vertically to the glass substrates. Welcome to contact us for samples to explore the advantage of VATN displays.

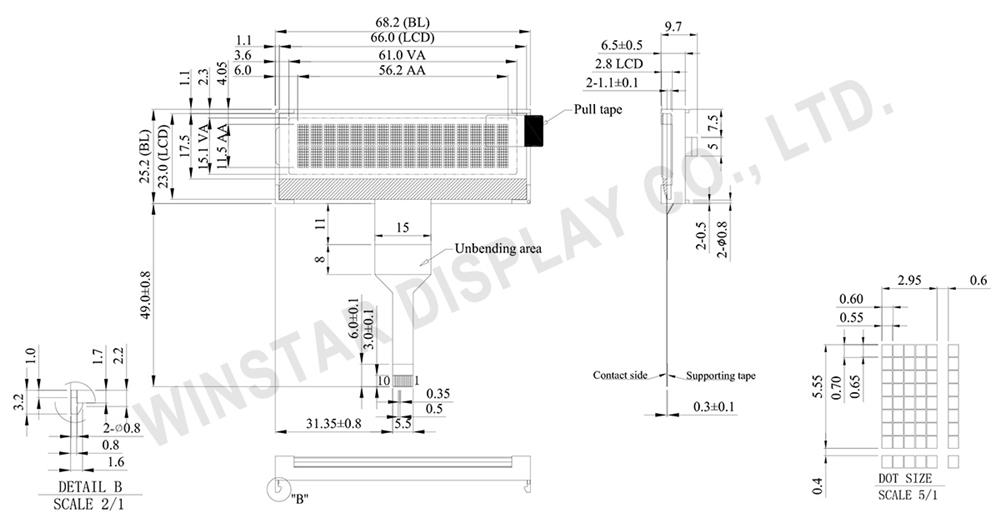

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin	Symbol	Function Description
1	RSTB	External reset pin
2	SCL	Serial clock input
3	SDA	Serial Data signal
4	VSS	Ground
5	VDD	Power supply
6	AVDD	AVDD is the source of VG regulator.
7	V0	V0 is the LCD driving voltage for common circuits at negative frame.
8	XV0	XV0 is the LCD driving voltage for common circuits at positive frame.
9	A	LED+
10	K	LED-

Mechanical Data

Item	Dimension	Unit
Number of Characters	16 Characters x 2 Lines	－
Module dimension	68.2 x 25.2 x 9.7	mm
View area	61.0 x 15.1	mm
Active area	56.2 x 11.5	mm
Dot size	0.55 x 0.65	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.95 x 5.55	mm
Character pitch	3.55 x 5.95	mm
Duty	1/17duty , 1/5 Bias
Backlight Type	LED
IC	ST7028-1A
Interface	I2C

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Power Supply Voltage	VDD	-0.3	－	4.0	V
Supply Voltage For LCD Drive	VOP=V0-VSS	-0.3	－	13.0	V
Input voltage range	VIN	-0.3	－	VDD+0.3	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	3	3.3	3.6	V
Supply Voltage For LCD	Vop	Ta=-20℃ Ta=25℃ Ta=70℃	－ 6.8 －	－ 7.0 －	－ 7.2 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	－	－	0.2 VDD	V
Output High Volt.	VOH	－	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	－	－	－	0.2VDD	V
Supply Current	IDD	－	－	－	1.5	mA

SKU: WO1602AT-89LN#FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Prezzi per quantità

Quantità

10+

25+

Prezzo

€8,00

€5,80

€5,60

€5,40

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€8,00 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin	Symbol	Function Description
1	RSTB	External reset pin
2	SCL	Serial clock input
3	SDA	Serial Data signal
4	VSS	Ground
5	VDD	Power supply
6	AVDD	AVDD is the source of VG regulator.
7	V0	V0 is the LCD driving voltage for common circuits at negative frame.
8	XV0	XV0 is the LCD driving voltage for common circuits at positive frame.
9	A	LED+
10	K	LED-

Mechanical Data

Item	Dimension	Unit
Number of Characters	16 Characters x 2 Lines	－
Module dimension	68.2 x 25.2 x 9.7	mm
View area	61.0 x 15.1	mm
Active area	56.2 x 11.5	mm
Dot size	0.55 x 0.65	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.95 x 5.55	mm
Character pitch	3.55 x 5.95	mm
Duty	1/17duty , 1/5 Bias
Backlight Type	LED
IC	ST7028-1A
Interface	I2C

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Power Supply Voltage	VDD	-0.3	－	4.0	V
Supply Voltage For LCD Drive	VOP=V0-VSS	-0.3	－	13.0	V
Input voltage range	VIN	-0.3	－	VDD+0.3	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	3	3.3	3.6	V
Supply Voltage For LCD	Vop	Ta=-20℃ Ta=25℃ Ta=70℃	－ 6.8 －	－ 7.0 －	－ 7.2 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	－	－	0.2 VDD	V
Output High Volt.	VOH	－	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	－	－	－	0.2VDD	V
Supply Current	IDD	－	－	－	1.5	mA

Specifiche di prodotto

Brand	Winstar
Size	2.25"
Risoluzione	16x2
Area Attiva (mm)	56.02x11.50
Dot Size	0.55x0.65
Colore B/L, Tipo LCD	B/L white, VATN
Alimentazione	3.3V
Interfaccia Display	I2C
Display IC	ST7028-1A
Struttura Costruttiva	COG
Angolo Visione	12H
Temperatura O. (°C)	-20~70
Connessione Display	FFC Cable
Nr. Pin	10
Passo Pin	0.5mm
Preferred - Not Preferred	Preferred
