WO256128-85HA2#FC

Immagine di WO256128-85HA2#FC Immagine di WO256128-85HA2#FC
Graphic LCD 2.9'' 256x128, B/L white, FSTN white pos, COG + PCB with screw holes, 3.3V, Interface 8080

DESCRIPTION

COG LCD display with a PCB board on module which is made of 256x128 dots, diagonal size 2.9 inch. It is built in with ST75256 controller IC, it supports 8080 8-bit parallel (default), 6800 8-bit and 4-wire serial SPI and I2C interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. Also have VDD 5V power supply voltage for optional.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. Available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

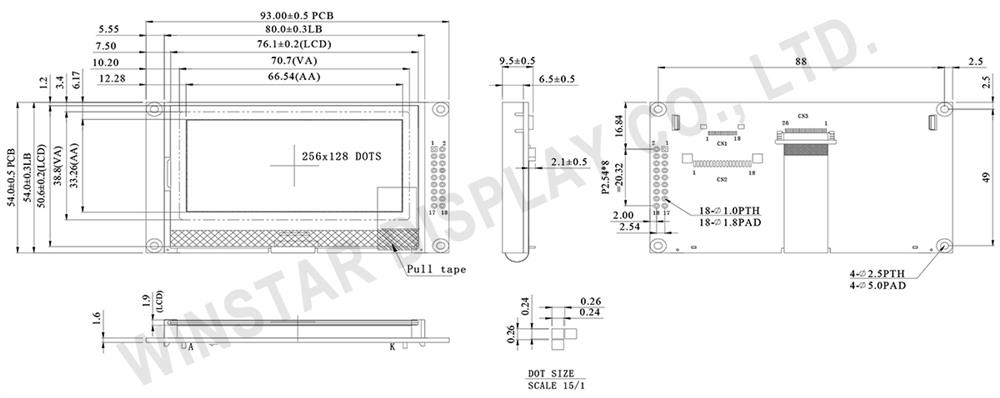

DRAWING

Chip on Glass LCD Modules 256x128 - WO256128A2



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD +3.3V
2 NC No connection
3 VSS ground
4 CSB Chip select input pin
5 A0 Whether the access is related to data or command
6 ERD Read or write enable terminal
7 RWR Read/Write execution control pin
8 RSTB Reset input pin
9~16 D0~D7 Data bus line
17 A LED+
18 K LED-



Mechanical Data

ItemDimensionUnit
Number of dots 256 × 128 －
Module dimension 93.0 × 54.0 × 9.5 mm
View area 70.7 × 38.8 mm
Active area 66.54 × 33.26 mm
Dot size 0.24 × 0.24 mm
Dot pitch 0.26 × 0.26 mm
Drive Method 1/128 Duty, 1/12 Bias
Backlight Type LED
IC ST75256



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
MPU Interface Input Voltage VIN -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-VSS -0.3 － 4.0 V
LCD Power supply voltage V0- XV0 -0.3 － 19.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
14.2
－		 －
14.5
－		 －
14.8
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － VSS － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － VSS － 0.2 VDD V
Supply Current IDD VDD=3.3V － 1.5 2.0 mA


SKU: WO256128-85HA2#FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€15,30
€11,20
€11,00
€10,60

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€15,30 IVA esclusa

DESCRIPTION

COG LCD display with a PCB board on module which is made of 256x128 dots, diagonal size 2.9 inch. It is built in with ST75256 controller IC, it supports 8080 8-bit parallel (default), 6800 8-bit and 4-wire serial SPI and I2C interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. Also have VDD 5V power supply voltage for optional.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. Available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.



DRAWING

Chip on Glass LCD Modules 256x128 - WO256128A2



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD +3.3V
2 NC No connection
3 VSS ground
4 CSB Chip select input pin
5 A0 Whether the access is related to data or command
6 ERD Read or write enable terminal
7 RWR Read/Write execution control pin
8 RSTB Reset input pin
9~16 D0~D7 Data bus line
17 A LED+
18 K LED-



Mechanical Data

ItemDimensionUnit
Number of dots 256 × 128 －
Module dimension 93.0 × 54.0 × 9.5 mm
View area 70.7 × 38.8 mm
Active area 66.54 × 33.26 mm
Dot size 0.24 × 0.24 mm
Dot pitch 0.26 × 0.26 mm
Drive Method 1/128 Duty, 1/12 Bias
Backlight Type LED
IC ST75256



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
MPU Interface Input Voltage VIN -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-VSS -0.3 － 4.0 V
LCD Power supply voltage V0- XV0 -0.3 － 19.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
14.2
－		 －
14.5
－		 －
14.8
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － VSS － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － VSS － 0.2 VDD V
Supply Current IDD VDD=3.3V － 1.5 2.0 mA


Specifiche di prodotto
Brand Winstar
Size 2.9"
Risoluzione 256x128
Area Attiva (mm) 66.54x33.26
Dot Size 0.26x0.26
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 3.3V
Interfaccia 8080
Controllore a Bordo ST75256
Struttura COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 18
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
