WO256128-88IA#FC

Graphic LCD 2.9'' 256x128, B/L white, DFSTN black neg, COG, 3.3V, Interface 6800/8080/SPI/I2C

DESCRIPTION

Monochrome graphic LCD module made of 256x128 pixels, diagonal size 2.9 inch. This LCD Module is built in with ST75256 controller IC, it supports 6800 8-bit, 8080 8-bit parallel and 4-wire serial SPI and I2C interface. It has the same outline dimension, and VA size and same power supply 3.3V as WO12864-XXXD3#FC, but it has a much higher resolution and performance: the customers don’t have to change the mechanical design for their applications.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. It is available for different LCD mode options, STN Negative, FSTN Negative (Double film) and FSTN positive and with LED backlight options, like white LED. Please contact with us if you need different LCD type and LED combination.

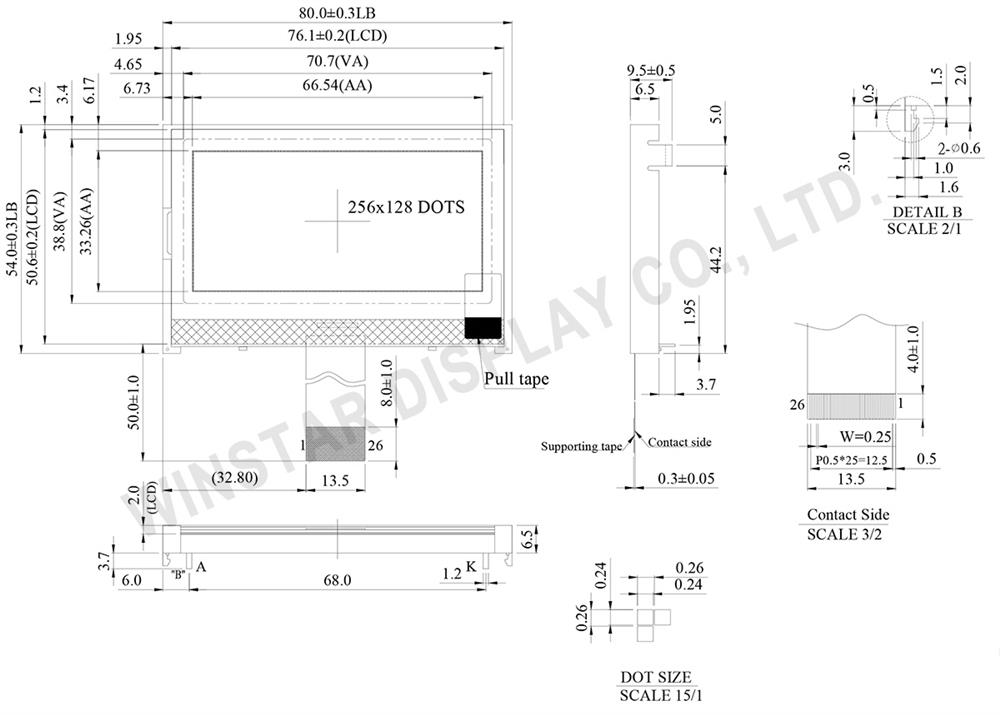

DRAWING

Graphic COG LCD 256x128, 256x128 LCD - WO256128A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 ITOGND ESD PIN
2 VG Power of SEG-drivers
3 V0 Positive operating voltage of COM-drivers
4 XV0 Negative operating voltage of COM-drivers
5  CA1P DC/DC Voltage converte pin
6 CA1N DC/DC Voltage converte pin
7 VDDA +3.3V
8 VDD +3.3V
9 VSS ground
10 COMSCN Set scan directing of COM
11 IF1 These pins select interface operation mode
IF1IF0MPU interface type
L L 4-line serial interface
L H IIC serial interface
H L 8-bit 6800 parallel interface
H H 8-bit 8080 parallel interface
Note: Refer to "Parallel / Serial Interface" for detailed information.
12 IF0
13 CSB Chip select input pin
14 A0 Whether the access is related to data or command
15 ERD Read or write enable terminal
16 RWR Read/Write execution control pin
17 RSTB Reset input pin
18~25 D0~D7 Data bus line
26 ITOGND ESD PIN



Mechanical Data

ItemDimensionUnit
Number of dots 256 × 128
Module dimension 80.0 × 54.0 × 9.5 mm
View area 70.7 × 38.8 mm
Active area 66.54 × 33.26 mm
Dot size 0.24 × 0.24 mm
Dot pitch 0.26 × 0.26 mm
Drive Method 1/128 DUTY,1/12 BIAS
Backlight Type LED
IC ST75256i
Interface 4-Line SPI/IIC/8-bit 6800/8-bit 8080



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 70
Storage Temperature TST -30 80
MPU Interface Input Voltage VIN -0.3 VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 4.0 V
LCD Power supply voltage V0- XV0 -0.3 19.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 3 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃

14.2

14.5

14.8
V
V
V
Input High Volt. VIH 0.7 VDD VDD V
Input Low Volt. VIL VSS 0.3 VDD V
Output High Volt. VOH 0.8 VDD VDD V
Output Low Volt. VOL VSS 0.2 VDD V
Supply Current IDD VDD=3.3V 1.5 mA


SKU: WO256128-88IA#FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€16,40
€12,00
€10,80
€10,40

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€16,40 IVA esclusa

DESCRIPTION

Monochrome graphic LCD module made of 256x128 pixels, diagonal size 2.9 inch. This LCD Module is built in with ST75256 controller IC, it supports 6800 8-bit, 8080 8-bit parallel and 4-wire serial SPI and I2C interface. It has the same outline dimension, and VA size and same power supply 3.3V as WO12864-XXXD3#FC, but it has a much higher resolution and performance: the customers don’t have to change the mechanical design for their applications.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. It is available for different LCD mode options, STN Negative, FSTN Negative (Double film) and FSTN positive and with LED backlight options, like white LED. Please contact with us if you need different LCD type and LED combination.



DRAWING

Graphic COG LCD 256x128, 256x128 LCD - WO256128A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 ITOGND ESD PIN
2 VG Power of SEG-drivers
3 V0 Positive operating voltage of COM-drivers
4 XV0 Negative operating voltage of COM-drivers
5  CA1P DC/DC Voltage converte pin
6 CA1N DC/DC Voltage converte pin
7 VDDA +3.3V
8 VDD +3.3V
9 VSS ground
10 COMSCN Set scan directing of COM
11 IF1 These pins select interface operation mode
IF1IF0MPU interface type
L L 4-line serial interface
L H IIC serial interface
H L 8-bit 6800 parallel interface
H H 8-bit 8080 parallel interface
Note: Refer to "Parallel / Serial Interface" for detailed information.
12 IF0
13 CSB Chip select input pin
14 A0 Whether the access is related to data or command
15 ERD Read or write enable terminal
16 RWR Read/Write execution control pin
17 RSTB Reset input pin
18~25 D0~D7 Data bus line
26 ITOGND ESD PIN



Mechanical Data

ItemDimensionUnit
Number of dots 256 × 128
Module dimension 80.0 × 54.0 × 9.5 mm
View area 70.7 × 38.8 mm
Active area 66.54 × 33.26 mm
Dot size 0.24 × 0.24 mm
Dot pitch 0.26 × 0.26 mm
Drive Method 1/128 DUTY,1/12 BIAS
Backlight Type LED
IC ST75256i
Interface 4-Line SPI/IIC/8-bit 6800/8-bit 8080



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 70
Storage Temperature TST -30 80
MPU Interface Input Voltage VIN -0.3 VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 4.0 V
LCD Power supply voltage V0- XV0 -0.3 19.0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 3 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=70℃

14.2

14.5

14.8
V
V
V
Input High Volt. VIH 0.7 VDD VDD V
Input Low Volt. VIL VSS 0.3 VDD V
Output High Volt. VOH 0.8 VDD VDD V
Output Low Volt. VOL VSS 0.2 VDD V
Supply Current IDD VDD=3.3V 1.5 mA


Specifiche di prodotto
Brand Winstar
Size 2.9"
Risoluzione 256x128
Area Attiva (mm) 66.54x33.26
Dot Size 0.26x0.26
Colore B/L, Tipo LCD B/L white, DFSTN black neg
Alimentazione 3.3V
Interfaccia 6800/8080/SPI/I2C
Controllore a Bordo ST75256
Struttura COG
Angolo Visione 6H
Frame No
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display FPC per ZIF Connector
Nr. Pin 26
