    TFT 3.4" 800x800, Round LCD Panel, Interface MIPI IC ILI9881C, Wide View Angle (IPS), 350 cd/m2, Standard Temp., Capacitive touch panel
    Manufacturer: Next Vision Display
    SKU: NT034RC001ML
    PRICE BREAKS
    Quantity
    1+
    5+
    Price
    €69.90
    €62.90

    For quantities above 9pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €69.90 excl tax
    i h

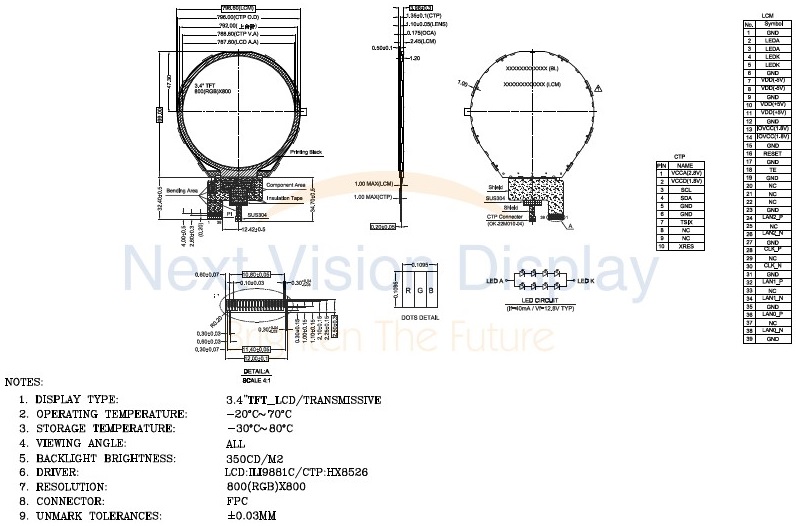

    DRAWING



    SPECIFICATIONS



    LCD Interface

    Input/Output Terminals

    Pin
    No.

    Symbol

    I/O

    Function

    Remark

    1

    GND

    GND

    Power Ground



    2

    LEDA

    P

    LED Anode



    3

    LEDA

    P



    4

    LEDK

    P

    LED Cathode



    5

    LEDK

    P



    6

    GND

    GND

    Power Ground



    7

    VDD(-5V)

    P

    -5V INPUT



    8

    VDD(-5V)

    P



    9

    GND

    GND

    Power Ground



    10

    VDD(+5V)

    P

    +5V INPUT



    11

    VDD(+5V)

    P



    12

    GND

    GND

    Power Ground



    13

    IOVCC

    P

    Power supply 1.8V



    14

    IOVCC

    P



    15

    GND

    GND

    Power Ground



    16

    RESET

    I

    Global Reset Pin



    17

    GND

    GND

    Power Ground



    18

    TE

    I

    tearing effect output



    19

    GND

    GND

    Power Ground



    20

    NC

    N

    No connect



    21

    NC

    N



    22

    NC

    N



    23

    GND

    GND

    Power Ground



    24

    LAN2_P

    I

    MIPI lane 2+



    25

    NC

    N

    No connect



    26

    LAN2_N

    I

    MIPI lane 2-



    27

    GND

    GND

    Power Ground



    28

    CLK_P

    I

    MIPI clock +



    29

    NC

    N

    No connect



    30

    CLK_N

    I

    IMIPI clock -



    31

    GND

    GND

    Power Ground



    32

    LAN1_P

    I

    MIPI lane 1+



    33

    NC

    N

    No connect



    34

    LAN1_N

    I

    MIPI lane 1-



    35

    GND

    GND

    Power Ground



    36

    LAN0_P

    I

    MIPI lane 0+



    37

    NC

    N

    No connect



    38

    LAN0_N

    I

    MIPI lane 0-



    39

    GND

    GND

    Power Ground





    CTP Interface

    Pin

    Name

    1

    VCCA(2.8V)

    2

    VCCD(1.8V)

    3

    SCL

    4

    SDA

    5

    GND

    6

    GND

    7

    TSIX

    8

    NC

    9

    NC

    10

    XRES



    General Specifications

    Feature

    Spec

    Display Spec.

    Size

    3.4 inch

    Resolution

    800(RGB) x 800

    Technology Type

    a-Si

    Pixel Configuration

    R.G.B. Vertical Stripe

    Pixel pitch(um)

    109.5*109.5

    Display Mode

    SFT

    Surface Treatment

    HC

    Viewing Direction

    FREE

    Mechanical
    Characteristics

    Module (W x H x D) (mm) with CTP

    99.0 x 96.6 x 3.98

    Active Area(mm)

    87.6*87.6

    With /Without TSP

    With CTP

    Matching Connection Type

    FPC

    LED Numbers

    8 LEDs

    CTP Surface hardness

    ≥7H

    Weight (g)

    TBD

    Electrical
    Characteristics

    Interface

    MIPI 3 lane

    Color Depth

    16.7M

    LCD Driver IC

    ILI9881C

    CTP Driver IC

    HX8526-E30

    CTP Interface

    IIC



    Absolute Maximum Ratings

    Item

    Symbol

    MIN

    MAX

    Unit

    Remark

    Power Supply Voltage

    IOVCC

    -0.3

    3.3

    V

    Note1

    Power Supply Voltage

    VDD(+5V)

    -0.3

    6.5



    Power Supply Voltage

    VDD(-5V)

    -6.5

    0.3



    Logic Supply Voltage

    VCCIO

    -0.3

    3.3

    V

    Operating Temperature

    Top

    -20

    70

    °C



    Storage Temperature

    Tst

    -30

    80

    ℃



    Relative Humidity
    Note2

    RH

    --

    ≤95

    %

    Ta≤40°C

    --

    ≤85

    %

    40°C<Ta≤50°C

    --

    ≤55

    %

    50°C<Ta≤60°C

    --

    ≤36

    %

    60°C<Ta≤70°C

    --

    ≤24

    %

    70°C<Ta≤80°C

    Absolute Humidity

    AH

    --

    ≤70

    g/m3

    Ta>70°C



    Electrical Characteristics

    Item

    Symbol

    MIN

    TYP

    MAX

    Unit

    Remark

    Power Supply Voltage

    IOVCC

    1.75

    1.8

    3.3

    V



    Power Supply Voltage

    VDD(+5V)

    4.5

    5.0

    6

    V



    Power Supply Voltage

    VDD(-5V)

    -6

    -5.0

    -4.5





    Input Signal Voltage

    High Level

    VIH

    0.7*IOVCC

    -

    IOVCC

    V





    Optical Characteristics

    Item

    Symbol

    Condition

    Min

    Typ

    Max

    Unit

    Remark

    View Angles

    θT

    CR≧10

    70

    80

    --

    Degree

    Note2

    θB

    70

    80

    --

    θL

    70

    80

    --

    θR

    70

    80

    --

    Contrast Ratio

    CR

    θ=0o

    600

    800

    --



    Note 3

    Response Time

    TON

    25℃

    --

    25

    35

    ms

    Note 4

    TOFF

    Chromaticity

    White

    x

    Backlight is on

    0.263

    0.313

    0.363



    Note 1,5

    y

    0.279

    0.329

    0.379

    Red

    x

    --

    TBD

    --



    Note 1,5

    y

    --

    TBD

    --

    Green

    x

    --

    TBD

    --



    Note 1,5

    y

    --

    TBD

    --

    Blue

    x

    --

    TBD

    --



    Note 1,5

    y

    --

    TBD

    --

    Uniformity

    U



    75

    80

    --

    %

    Note 6

    NTSC





    65

    70

    --

    %

    Note 5

    Luminance

    L



    280

    350

    --

    cd/m2

    Note 7

    Products specifications
    Brand Next Vision Display
    Size 3.4"
    Resolution 800x800
    Active Area (mm) 87.6x87.6
    Color Full Color
    Display Interface MIPI
    Display IC ILI9881C
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 39
    Pin Pitch 0.3mm
    Touch Panel IC Controller HX8526-E30
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
