NT040RN001ML

TFT 4" 720x720, Round, Full Color, Interface MIPI (Serial), Wide View Angle (IPS), 300 cd/m2, Standard Temp., No touch

DESCRIPTION

NT040RN001ML is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light. The 4.0" display area contains 720X(RGB)x720 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

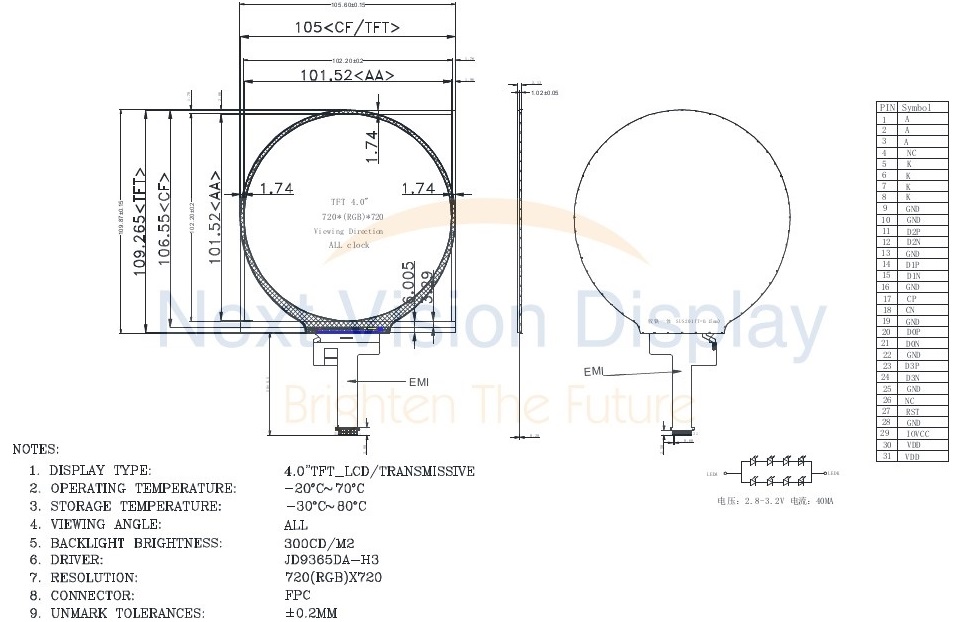

DRAWING

SPECIFICATIONS

Interface signals

Pin No.	Symbol	Function
1-3	LEDA	LED back light(Anode).
4	NC	NC
5-8	LEDK	LED back light( Cathode).
9-10	GND
11	D2P	MIPI-DSI DATE signal input
12	D2N	MIPI-DSI DATE signal input
13	GND
14	D1P	MIPI-DSI DATE signal input
15	D1N	MIPI-DSI DATE signal input
16	GND
17	CP	MIPI-DSI DATE signal input
18	CN	MIPI-DSI DATE signal input
19	GND
20	D0P	MIPI-DSI DATE signal input
21	D0N	MIPI-DSI DATE signal input
22	GND
23	D3P	MIPI-DSI DATE signal input
24	D3N	MIPI-DSI DATE signal input
25	GND
26	NC	NC
27	RST	Reset input pin
28	GND
29	IOVCC	Power supply for I/O block. 1.8V
30	VDD	Power supply for interface logic circuits(2.8V)
31	VDD	Power supply for interface logic circuits(2.8V)

General Specifications

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M	Color	1
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	105.6X109.87X2.13	mm	2
Active Area(W×H)	101.52X101.52	mm
Number of Dots	720×720	dots
IC Controller	JD9365DA-H3	-
Backlight	8-LEDs (white)	pcs
Weight	---	g
Interface	MIPI	-

Absolute Maximum Ratings(Ta=25°C)

Electrical Absolute Maximum Ratings.(Vss=0V ,Ta=25°C)

Item	Symbol			Unit	Note
Supply voltage	IOVCC	0.3	3.3	V	1,2
Supply voltage	VCI	0.3	6.5
TFT Gate On voltage	VGH	10.6	15.4
TFT Gate Off voltage	VGL	-14	-7.5
Backlight Forward Current	IF	-	40	mA
Humidity	RH	-	95%(Max60 °C)	RH

Environmental Absolute Maximum Ratings

Item	Storage		Operating		Note
Item					Note
Ambient Temperature	-30°C	80°C	-20°C	70°C	1,2
Humidity	-	-	-	-	3

Optical Characteristics

Item	Symbol		Condition				Unit	Note
Brightness	Bp		θ=0° F=0°	-	300	-	Cd/m²	1
Uniformity	⊿Bp		θ=0° F=0°	80	-	-	%	1,2
Viewing Angle	3:00		Cr≥10	80	85	-	Deg	3
	6:00			80	85	-
	9:00			80	85	-
	12:00			0	85	-
Contrast Ratio	Cr		θ=0° F=0°	200	300	-	-	4
Response Time	Tr+Tf		θ=0° F=0°	-	30	35	ms	5
Color of CIE Coordinate	W	x	θ=0° F=0°	-0.03	0.292	+0.03	-	1,6
	W	y			0.337		-
	R	x			0.650		-
	R	y			0.322		-
	G	x			0.280		-
	G	y			0.563		-
	B	x			0.135		-
	B	y			0.141		-
NTSC	S			65	70	-	%

SKU: NT040RN001ML

Brand: Next Vision Display

Available: No

Be the first to review this product

Price Breaks

Quantity

Price

€62.30

€56.10
