NT024RN001ML

TFT 2.4" 320x320, Round, Full Color, Interface MIPI, Wide View Angle (IPS), 550 cd/m2, Standard Temp., No touch

DESCRIPTION



The NT024RN001ML model is a Color TFT LCD supplied by Next Vision Display. This Module has a 2.4 inch diagonally measured active display area with 320(RGB)X320 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. It is octagon sizes that cut from 3.34 inch tft lcd. LCD color is determined with 16 M colors signal for each pixel. The NT024RN001ML has been designed to apply the MIPI interface method that enables low power, high speed, and high contrast.

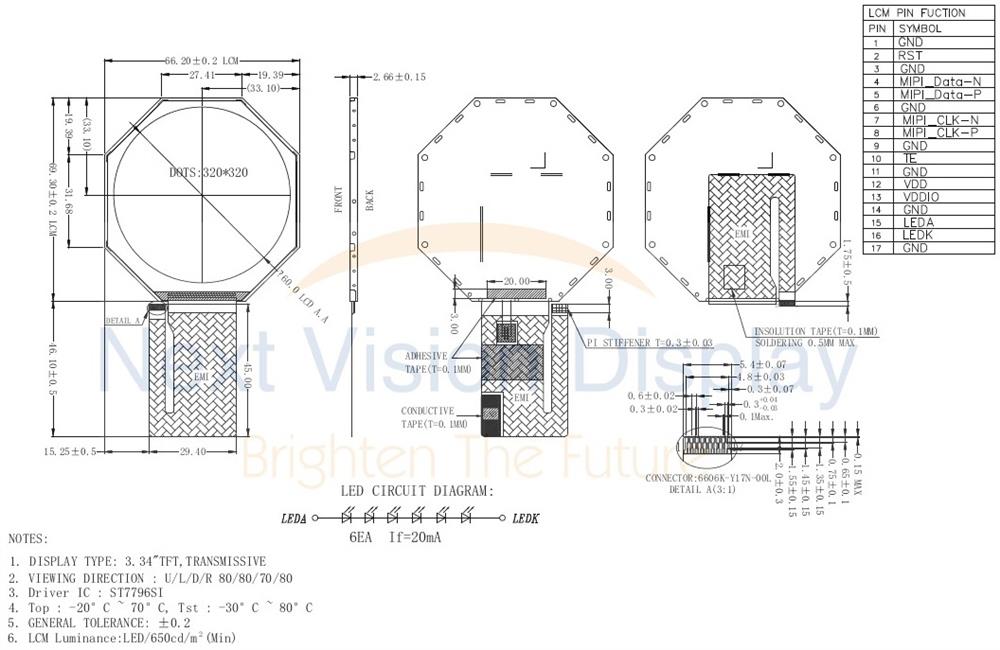

DRAWING



SPECIFICATIONS



Interface Pin Connections

Pin NO.

Symbol

I/O

Function

1

GND

P

Ground

2

RST

I

Global reset signal

3

GND

P

Ground

4

MIPI_Data-N

I

MIPI Data

5

MIPI Data-P

I

MIPI Data

6

GND

P

Ground

7

MIPI CLK-N

I

MIPI Clock

8

MIPI CLK-P

I

MIPI Clock

9

GND

P

Ground

10

TE

I

Tearing effect output

11

GND

P

Ground

12

VDD

P

Analog power supply

13

VDDIO

P

Digital power supply

14

GND

P

Ground

15

LEDA

P

LED Anode

16

LEDK

P

LED Cathode

17

GND

P

Ground



Mechanical Specification

ITEM

Standard Value

Unit

Display Size

2.4 inch

--

Display Mode

Normally White, Transmissive LCD

--

Module Dimension

66.20(W)*69.30(H)*2.66(T)

mm

Resolution

320(RGB)X 320

Pixels

Active Display Area

60.00(W)×60.00(H)

mm

Viewing Direction

12 O’clock

--

Gray Scale Inversion Direction

6 O’clock

--

LED Backlight Color

White

--

Interface

MIPI

--

LCD driver

ST7796SI

--

Touch panel

Without touch

--



Absolute Max Ratings & Electrical Specification

Item



Typ

Max

Unit

Remark

Power Supply Voltage

(VDD)

-0.3

--

4.0

V



Logic Signal Input /Output Voltage (VDDIO)

0.3

--

4.0

V



Operating Temperature

-20



70

℃



Storage temperature

-30



80

℃





Optical Specification

Item

Symbol

Condition



Unit

Note

Brightness

Bp

e=0°

F=0°

600

-

-

cd/m2



Uniformity

△Bp

70

-

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

-

80

-

Deg

Cr≥10

6 o’clock

-

70

-

e2

(0=0° or

180°)

9 o’clock

-

80

-

3 o’clock

-

80

-

Contrast Ratio

Cr

e=0°

F=0°

600

800



-



Response Time

ton

-

20

30

ms


SKU: NT024RN001ML
Brand: Next Vision Display
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
Price
€40.10
€32.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€40.10 excl tax

DESCRIPTION



The NT024RN001ML model is a Color TFT LCD supplied by Next Vision Display. This Module has a 2.4 inch diagonally measured active display area with 320(RGB)X320 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. It is octagon sizes that cut from 3.34 inch tft lcd. LCD color is determined with 16 M colors signal for each pixel. The NT024RN001ML has been designed to apply the MIPI interface method that enables low power, high speed, and high contrast.



DRAWING



SPECIFICATIONS



Interface Pin Connections

Pin NO.

Symbol

I/O

Function

1

GND

P

Ground

2

RST

I

Global reset signal

3

GND

P

Ground

4

MIPI_Data-N

I

MIPI Data

5

MIPI Data-P

I

MIPI Data

6

GND

P

Ground

7

MIPI CLK-N

I

MIPI Clock

8

MIPI CLK-P

I

MIPI Clock

9

GND

P

Ground

10

TE

I

Tearing effect output

11

GND

P

Ground

12

VDD

P

Analog power supply

13

VDDIO

P

Digital power supply

14

GND

P

Ground

15

LEDA

P

LED Anode

16

LEDK

P

LED Cathode

17

GND

P

Ground



Mechanical Specification

ITEM

Standard Value

Unit

Display Size

2.4 inch

--

Display Mode

Normally White, Transmissive LCD

--

Module Dimension

66.20(W)*69.30(H)*2.66(T)

mm

Resolution

320(RGB)X 320

Pixels

Active Display Area

60.00(W)×60.00(H)

mm

Viewing Direction

12 O’clock

--

Gray Scale Inversion Direction

6 O’clock

--

LED Backlight Color

White

--

Interface

MIPI

--

LCD driver

ST7796SI

--

Touch panel

Without touch

--



Absolute Max Ratings & Electrical Specification

Item



Typ

Max

Unit

Remark

Power Supply Voltage

(VDD)

-0.3

--

4.0

V



Logic Signal Input /Output Voltage (VDDIO)

0.3

--

4.0

V



Operating Temperature

-20



70

℃



Storage temperature

-30



80

℃





Optical Specification

Item

Symbol

Condition



Unit

Note

Brightness

Bp

e=0°

F=0°

600

-

-

cd/m2



Uniformity

△Bp

70

-

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

-

80

-

Deg

Cr≥10

6 o’clock

-

70

-

e2

(0=0° or

180°)

9 o’clock

-

80

-

3 o’clock

-

80

-

Contrast Ratio

Cr

e=0°

F=0°

600

800



-



Response Time

ton

-

20

30

ms


Products specifications
Brand Next Vision Display
Size 2.4"
Resolution 320x320
Active Area (mm) 60.00x60.00
Color Full Color
Display Interface MIPI (Serial)
Display IC ST7796SI
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 17
Pin Pitch 0.3mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 2.4"
Resolution 320x320
Active Area (mm) 60.00x60.00
Color Full Color
Display Interface MIPI (Serial)
Display IC ST7796SI
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 17
Pin Pitch 0.3mm
Preferred - Not Preferred Preferred
