NT021RN002ML

TFT 2.1" 480x480, Round, Full Color, Interface RGB/SPI, Wide View Angle (IPS), 500 cd/m2, Standard Temp., No touch

DESCRIPTION

NT021RN002ML is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 2.1" display area contains 480X(RGB)x480 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.

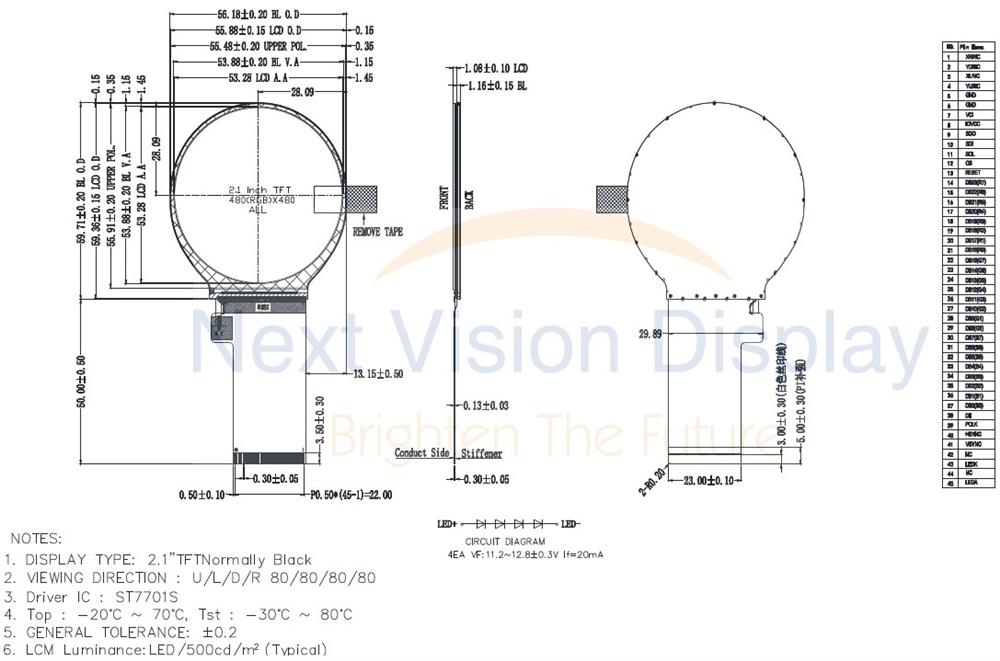

DRAWING

SPECIFICATIONS

Interface Pin Connection

Pin No.	Symbol	Function
1	XR(NC)	No connection
2	YD(NC)	No connection
3	XL(NC)	No connection
4	YU(NC)	No connection
5	GND
6	GND
7	VCI	Power supply
8	IOVCC	I/O power supply
9	SDO	SPI interface output
10	SDI	Serial Input data bus
11	SCL	Serial clock as serial interface.
12	CS	Chip select signal
13	RESET	Reset pin,active “L”
14-37	DB23-DB0	RGB data bus
38	DE	Data enable pin
39	PCLK	Data clock
40	HSYNC	Horizontal sync input in RGB mode
41	VSYNC	Vertical sync input in RGB mode
42	NC	No connection
43	LEDK	LED back light(Cathode)
44	NC	No connection
45	LEDA	LED back light(Anode)

Mechanical Specifications

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	262K	Color	1
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	56.18X59.71X2.24	mm	2
Active Area(W×H)	53.28X53.28	mm
Number of Dots	480×480	dots
Controller	ST7701S	-
Power Supply Voltage	2.8	V
Backlight	4P-LEDs (white)	pcs
Weight	---	g
Interface	RGB18bit+SPI	-

Absolute Maximum Ratings(Ta=25^°C)

Electrical Absolute Maximum Ratings.(Vss=0V ,Ta=25^°C)

Item	Symbol			Unit	Note
Power Supply Voltage	VCI	-0.3	3.6	V	1,2

Environmental Absolute Maximum Ratings.

Item	Storage		Operating		Note
Item					Note
Ambient Temperature	-30°C	80°C	-20°C	70°C	1,2
Humidity	-	-	-	-	3

Electrical Specifications

Electrical characteristics(Vss=0V ,Ta=25°C)

Parameter		Symbol	Conditio n	Min	Typ	Max	Unit	Note
Power voltage		VCI	Ta=25°C	2.5	2.8	3.6	V
Input voltage	‘H’	VIH	Ta=25°C	0.7*VCI	-	VCI	V
Input voltage	‘L’	VIL	Ta=25°C	0	-	0.3*VCI	V

LED backlight specification(VSS=0V ,Ta=25°C)

Item	Symbol	Condition	Min	Typ	Max	Unit	Note
Supply voltage	Vf	If=20mA	11.2	12.8	13.5	V
Uniformity	ΔBp	If=20mA	75	80	-	%
Life Time	time	If=20mA	-	20K	-	hours	1

Optical Characteristics

Item	Symbol		Condition				Unit	Note
Brightness	Bp		θ=0° F=0°	450	500	-	Cd/m²	1
Uniformity	⊿Bp		θ=0° F=0°	75	80	-	%	1,2
Viewing Angle	3:00		Cr≥10	-	80	-	Deg	3
	6:00			-	80	-
	9:00			-	80	-
	12:00			-	80	-
Contrast Ratio	Cr		θ=0° F=0°	800	1000	-	-	4
Response Time	Tr+Tf		θ=0° F=0°	-	30	35	ms	5
Color of CIE Coordinate	W	x	θ=0° F=0°	-0.05	TBD	+0.05	-	1,6
	W	y			TBD		-
	R	x			TBD		-
	R	y			TBD		-
	G	x			TBD		-
	G	y			TBD		-
	B	x			TBD		-
	B	y			TBD		-
NTSC Ratio	S			60	69	-	%

SKU: NT021RN002ML

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Price Breaks

Quantity

Price

€36.10

€28.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€36.10 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Connection

Pin No.	Symbol	Function
1	XR(NC)	No connection
2	YD(NC)	No connection
3	XL(NC)	No connection
4	YU(NC)	No connection
5	GND
6	GND
7	VCI	Power supply
8	IOVCC	I/O power supply
9	SDO	SPI interface output
10	SDI	Serial Input data bus
11	SCL	Serial clock as serial interface.
12	CS	Chip select signal
13	RESET	Reset pin,active “L”
14-37	DB23-DB0	RGB data bus
38	DE	Data enable pin
39	PCLK	Data clock
40	HSYNC	Horizontal sync input in RGB mode
41	VSYNC	Vertical sync input in RGB mode
42	NC	No connection
43	LEDK	LED back light(Cathode)
44	NC	No connection
45	LEDA	LED back light(Anode)

Mechanical Specifications

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	262K	Color	1
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	56.18X59.71X2.24	mm	2
Active Area(W×H)	53.28X53.28	mm
Number of Dots	480×480	dots
Controller	ST7701S	-
Power Supply Voltage	2.8	V
Backlight	4P-LEDs (white)	pcs
Weight	---	g
Interface	RGB18bit+SPI	-

Absolute Maximum Ratings(Ta=25^°C)

Electrical Absolute Maximum Ratings.(Vss=0V ,Ta=25^°C)

Item	Symbol			Unit	Note
Power Supply Voltage	VCI	-0.3	3.6	V	1,2

Environmental Absolute Maximum Ratings.

Item	Storage		Operating		Note
Item					Note
Ambient Temperature	-30°C	80°C	-20°C	70°C	1,2
Humidity	-	-	-	-	3

Electrical Specifications

Electrical characteristics(Vss=0V ,Ta=25°C)

Parameter		Symbol	Conditio n	Min	Typ	Max	Unit	Note
Power voltage		VCI	Ta=25°C	2.5	2.8	3.6	V
Input voltage	‘H’	VIH	Ta=25°C	0.7*VCI	-	VCI	V
Input voltage	‘L’	VIL	Ta=25°C	0	-	0.3*VCI	V

LED backlight specification(VSS=0V ,Ta=25°C)

Item	Symbol	Condition	Min	Typ	Max	Unit	Note
Supply voltage	Vf	If=20mA	11.2	12.8	13.5	V
Uniformity	ΔBp	If=20mA	75	80	-	%
Life Time	time	If=20mA	-	20K	-	hours	1

Optical Characteristics

Item	Symbol		Condition				Unit	Note
Brightness	Bp		θ=0° F=0°	450	500	-	Cd/m²	1
Uniformity	⊿Bp		θ=0° F=0°	75	80	-	%	1,2
Viewing Angle	3:00		Cr≥10	-	80	-	Deg	3
	6:00			-	80	-
	9:00			-	80	-
	12:00			-	80	-
Contrast Ratio	Cr		θ=0° F=0°	800	1000	-	-	4
Response Time	Tr+Tf		θ=0° F=0°	-	30	35	ms	5
Color of CIE Coordinate	W	x	θ=0° F=0°	-0.05	TBD	+0.05	-	1,6
	W	y			TBD		-
	R	x			TBD		-
	R	y			TBD		-
	G	x			TBD		-
	G	y			TBD		-
	B	x			TBD		-
	B	y			TBD		-
NTSC Ratio	S			60	69	-	%

Products specifications

Brand	Next Vision Display
Size	2.1"
Resolution	480x480
Active Area (mm)	39.84x39.84
Color	Full Color
Display Interface	MCU (RGB/SPI)
Display IC	ST7701S
View Angle	IPS
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC per ZIF Connector
Pin Nr.	40
Pin Pitch	0.3mm
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	2.1"
Resolution	480x480
Active Area (mm)	39.84x39.84
Color	Full Color
Display Interface	MCU (RGB/SPI)
Display IC	ST7701S
View Angle	IPS
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	FPC per ZIF Connector
Pin Nr.	40
Pin Pitch	0.3mm
Preferred - Not Preferred	Preferred
