WEA64128W#AP3N0Y000-FC

PMOLED 0.96'' Graphic 64x128, White color, COG + PCB, 3V, Interface I2C, Glare

DESCRIPTION

Consumer-grade COG OLED display, diagonal size 0.96 inch, made of resolution 64x128 dots. It is the extension item of WEO064128A which has a PCB board on the module. This PCB board with two mounting holes and metal pins is easy for customers to fix modules on their applications. It is built-in with SH1107 IC; it supports I2C interface, driving duty 1/64, the supply voltage is 3.0V (typical value), and the current with 50% checkerboard displayis 25mA @3.0VDD (for white color). The booster circuit has been designed on the PCB version, and the customer only needs to provide a set of VDD voltage to use.

This COG with PCB OLED module is suitable for smart home applications, medical devices, industrial control, meters, etc. WEA064128A module operating temperatures range is from -30℃ to +70℃; its storage temperatures range from -30℃ to +70℃.

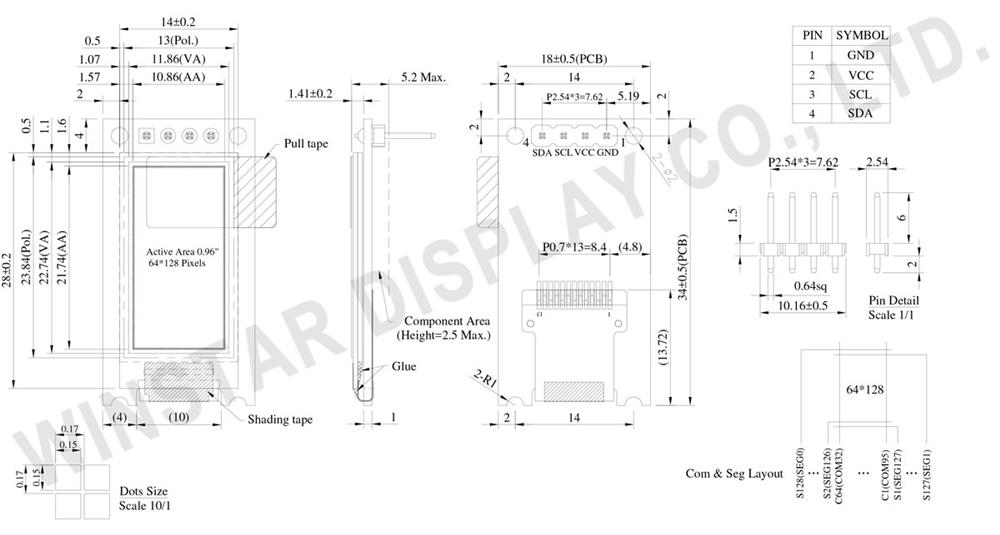

DRAWING

0.96 inch 64×128 COG OLED Graphic with PCB - WEA064128A



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC Power supply input.
3 SCL The serial clock input.
4 SDA The serial data input/output.



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 × 128 -
Module dimension 34.0 × 18.0 × 1.41 mm
Active Area 10.86 × 21.74 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1107
Interface I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Display VCC -0.3 3.6 V
Operating Temperature TOP -30 +70 °C
Storage Temperature TSTG -30 +70 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 1.65 3.0 3.3 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.8×VCC VCC V
Output Low Volt. VOL 0 0.2×VCC V
50% Checkerboard operating Current ICC VCC =3V 25 50 mA



SKU: WEA64128W#AP3N0Y000-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€9.90
€7.30
€7.00
€6.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€9.90 excl tax

DESCRIPTION

Consumer-grade COG OLED display, diagonal size 0.96 inch, made of resolution 64x128 dots. It is the extension item of WEO064128A which has a PCB board on the module. This PCB board with two mounting holes and metal pins is easy for customers to fix modules on their applications. It is built-in with SH1107 IC; it supports I2C interface, driving duty 1/64, the supply voltage is 3.0V (typical value), and the current with 50% checkerboard displayis 25mA @3.0VDD (for white color). The booster circuit has been designed on the PCB version, and the customer only needs to provide a set of VDD voltage to use.

This COG with PCB OLED module is suitable for smart home applications, medical devices, industrial control, meters, etc. WEA064128A module operating temperatures range is from -30℃ to +70℃; its storage temperatures range from -30℃ to +70℃.



DRAWING

0.96 inch 64×128 COG OLED Graphic with PCB - WEA064128A



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 GND Ground
2 VCC Power supply input.
3 SCL The serial clock input.
4 SDA The serial data input/output.



Mechanical Data

ItemDimensionUnit
Dot Matrix 64 × 128 -
Module dimension 34.0 × 18.0 × 1.41 mm
Active Area 10.86 × 21.74 mm
Pixel Size 0.15 × 0.15 mm
Pixel Pitch 0.17 × 0.17 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1107
Interface I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Display VCC -0.3 3.6 V
Operating Temperature TOP -30 +70 °C
Storage Temperature TSTG -30 +70 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VCC 1.65 3.0 3.3 V
Input High Volt. VIH 0.8×VCC VCC V
Input Low Volt. VIL 0 0.2×VCC V
Output High Volt. VOH 0.8×VCC VCC V
Output Low Volt. VOL 0 0.2×VCC V
50% Checkerboard operating Current ICC VCC =3V 25 50 mA



Products specifications
Brand Winstar
Size 0.96"
Resolution 64x128
Active Area (mm) 10.86x21.74
Dot Size 0.15x0.15
Polarizer Glare
Color White
Power supply 3V
Display Interface I2C
Display IC SH1107
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Strip Connector
Pin Nr. 4
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
