WF101FSYAPLNN0#

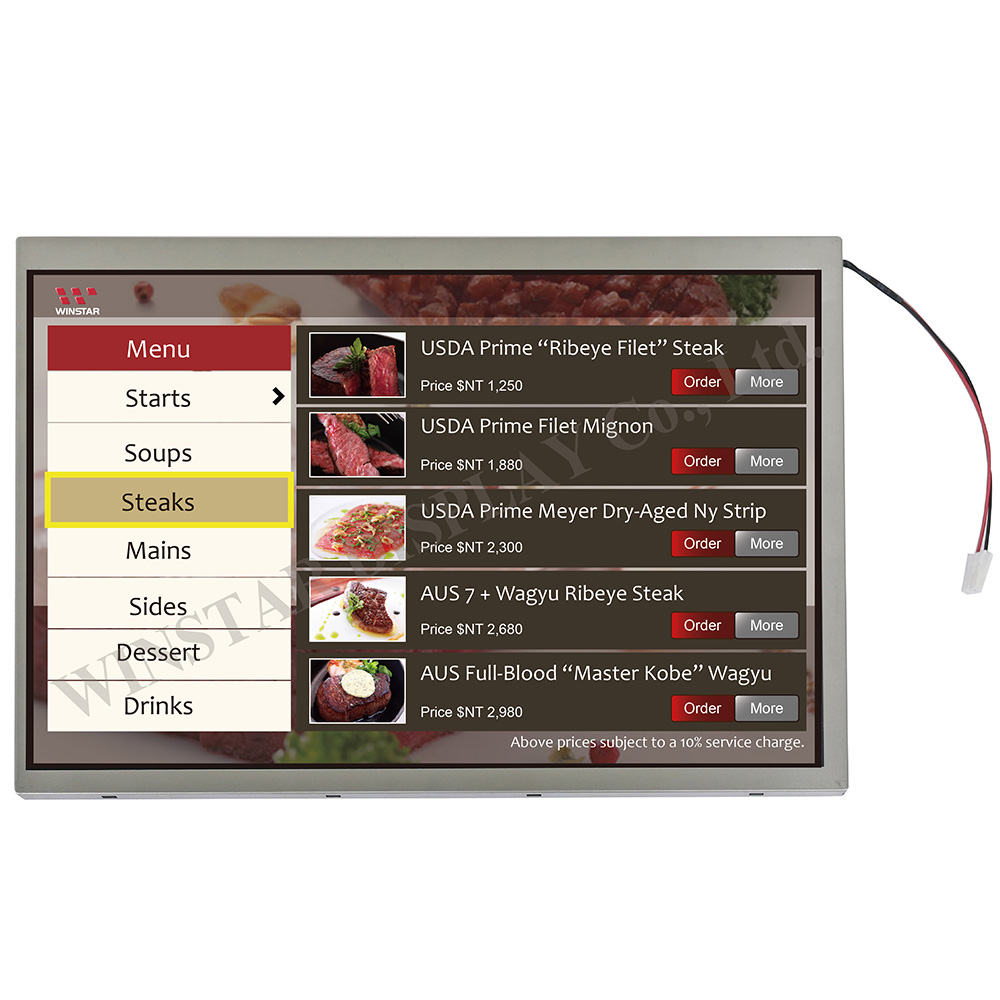

TFT 10.1" 1280x800 LCD Panel, Interface LVDS, High Brightness 1100cd/m², Wide View Angle (IPS), No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

10.1 inch TFT LCD display with High Brightness and wider viewing angle of IPS panel technology on module. This display is having the module dimension of 230.56 x 155.01 x 8.4 mm and AA size of 216.96 x 135.6 mm; resolution 1280 x 800 pixels, it supports LVDS interface, 40-pins FPC pinout.

DRAWING

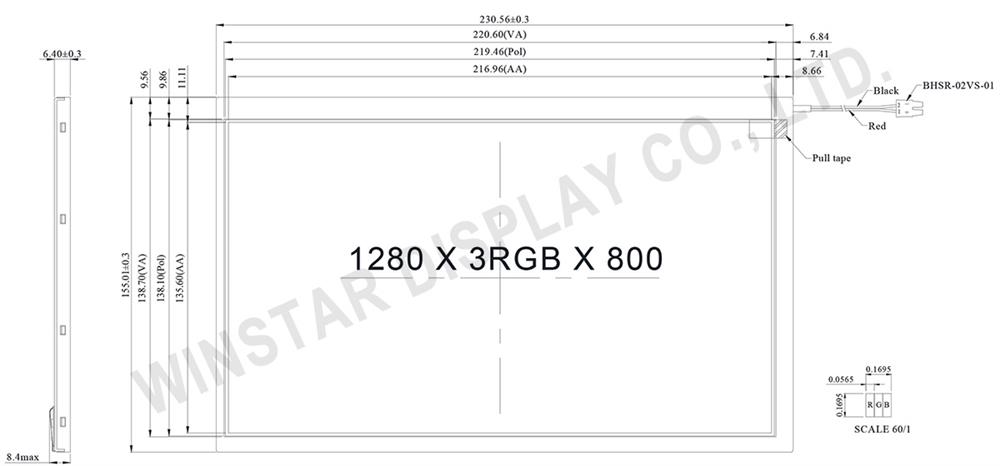

10.1 High Brightness LVDS TFT LCD, LVDS Display - WF101FSYAPLNN0

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	VCOM	P	Common Voltage
2~3	VDD	P	Power Supply
4~6	NC	-	No connection
7	GND	P	Ground
8	Rxin0-	I	-LVDS Differential Data Input
9	Rxin0+	I	+LVDS Differential Data Input
10	GND	P	Ground
11	Rxin1-	I	-LVDS Differential Data Input
12	Rxin1+	I	+LVDS Differential Data Input
13	GND	P	Ground
14	Rxin2-	I	-LVDS Differential Data Input
15	Rxin2+	I	+LVDS Differential Data Input
16	GND	P	Ground
17	RxCLK-	I	-LVDS Differential Clock Input
18	RxCLK+	I	+LVDS Differential Clock Input
19	GND	P	Ground
20	Rxin3-	I	-LVDS Differential Data Input
21	Rxin3+	I	+LVDS Differential Data Input
22	GND	P	Ground
23~24	NC	-	No connection
25	GND	P	Ground
26~28	NC	-	No connection
29	AVDD	P	Power for Analog Circuit
30	GND	P	Ground
31~34	NC	-	No connection
35	VGL	P	Gate OFF Voltage
36~37	NC	-	No connection
38	VGH	P	Gate ON Voltage
39~40	NC	-	No connection

I: input, O: output, P: Power

General Specifications

Item	Dimension	Unit
Screen Diagonal	10.1	inch
Number of Pixels	1280 × 3(RGB) × 800	dots
Module dimension	230.56 × 155.01 × 8.4	mm
Active area	216.96 (H) × 135.6(V)	mm
Pixel pitch	0.1695 × 0.1695	mm
Display Mode	Normally Black
Pixel Arrangement	R.G.B. Vertical Stripe
Backlight Type	LED, Normally White
Aspect Ratio	16:9
Electrical Interface (Logic)	LVDS
Touch Panel	Without Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-20	－	+70	℃

Electrical Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min	Typ	Max	Unit
Power voltage	VDD	2.3	2.5	2.7	V
	AVDD	8.0	8.2	8.4	V
	VGH	21.7	22	22.3	V
	VGL	-7.3	-7	-6.7	V
Input signal voltage	VCOM	2.7	3.0	3.3	V
