WF52-480128AH#VSF3-FC

Picture of WF52-480128AH#VSF3-FC Picture of WF52-480128AH#VSF3-FC
TFT 5.2" 480x128, Bar Type, Interface HDMI (only DVI signal), High Brightness 700cd/m², View angle (TN), Capacitive touch panel USB interface (GG)

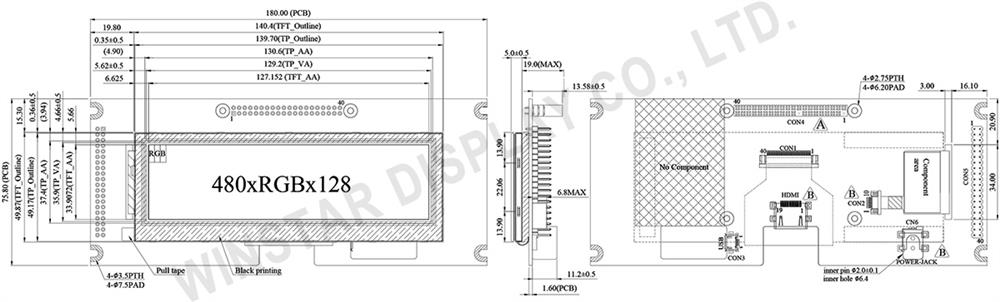

DRAWING





SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 ×3(RGB) × 128 dots
Module dimension 180.0 × 75.8 × 23.94 (Max) mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Controller IC TFP401
Interface Support HDMI Connector (Only DVI Signal)
Touch Panel Projected capacitive touch panel (PCAP)
PCAP IC GT911 or equivalent
PCAP Interface USB
PCAP FW Version 0x99
Surface Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － - 5 - V
Supply Current For LCM IDD － － 1200 1800 mA
LED life time － － － 50,000 － Hr

Interface

LCM PIN Definition(CON4)

PinSymbolFunction
1 NC No connector
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL_E (GPIO18) Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connector
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


LCM PIN Definition(CON5)

PinSymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL_E (GPIO18) Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 NC - No connection
16 NC - No connection
17 GND P Ground
18 5V P Power Supply
19 NC - No connection
I: input, O: output, P: Power


PCAP USB PIN Definition (CON3)

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground


POWER-JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply
2 GND P Ground
3 NC - No connection
SKU: WF52-480128AH#VSF3-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€94.70
€85.20
€70.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€94.70 excl tax



DRAWING





SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 ×3(RGB) × 128 dots
Module dimension 180.0 × 75.8 × 23.94 (Max) mm
Active area 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Controller IC TFP401
Interface Support HDMI Connector (Only DVI Signal)
Touch Panel Projected capacitive touch panel (PCAP)
PCAP IC GT911 or equivalent
PCAP Interface USB
PCAP FW Version 0x99
Surface Glare

Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃

Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － - 5 - V
Supply Current For LCM IDD － － 1200 1800 mA
LED life time － － － 50,000 － Hr

Interface

LCM PIN Definition(CON4)

PinSymbolFunction
1 NC No connector
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL_E (GPIO18) Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connector
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


LCM PIN Definition(CON5)

PinSymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL_E (GPIO18) Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 NC - No connection
16 NC - No connection
17 GND P Ground
18 5V P Power Supply
19 NC - No connection
I: input, O: output, P: Power


PCAP USB PIN Definition (CON3)

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground


POWER-JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply
2 GND P Ground
3 NC - No connection
Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface HDMI (only DVI)
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface HDMI (only DVI)
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Touch Panel IC Controller GT911
Preferred - Not Preferred Preferred
Related products
Picture of WF39-480128DH#004-FC

WF39-480128DH#004-FC

TFT 3.9" 480x128, Bar Type + board, Interface HDMI (only DVI signal), 500cd/m², View direction 12H, No touch
From €41.30 excl tax
Picture of NT068-C001ML

NT068-C001ML

TFT 6.8" 480×1280, Bar Type, Interface HDMI, Wide view angle (IPS), 400cd/m², Capacitive touch panel, Standard Temp. (HDMI and micro-usb cables included)
From €84.10 excl tax
Picture of WWTFTDEMO52A-03#

WWTFTDEMO52A-03#

Evaluation kit for TFT WF52A panel high brightness with CTP. The kit includes: CPU PIC24 + Graphic Controller SSD1963 + FFC cable 36pins + Power adapter 5V 1A (LCD module NOT included)
€57.50 excl tax
Picture of CABLE_USB-MICROUSB

CABLE_USB-MICROUSB

USB Male - MicroUSB Male Cable, Length 180cm
€16.40 excl tax
Picture of CABLE_USB90-MICROUSB_79

CABLE_USB90-MICROUSB_79

USB Male (RA) - MicroUSB Male Cable, Length 79mm
From €2.80 excl tax
Picture of WWHDMI-00#

WWHDMI-00#

HDMI Connector for TFT module and Raspberry Pi 3B+ Version or below Version
From €2.60 excl tax
Picture of CABLE_HDMI

CABLE_HDMI

HDMI Cable V1.4 High speed, with Ethernet, Male-male connectors, 1.5 meters
€18.10 excl tax
Categories
Recently viewed
Contacts
  • +39 0332 1888005
  • +39 0332 320856
  • Via 2 Giugno, 20 – 21022 Azzate (VA) Italy
  • VAT number IT02764420127
    REA Varese 285686
    Social capital fully paid 100.000€
Information
Featured Products
Copyright © 2025 FIRST Components. All rights reserved.
Powered by nopCommerce
Developed by Weblink
FIRST Components s.r.l.
Via 2 Giugno, 20 – 21022 Azzate (VA) Italy
