POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.
This Embedded Kit consits of:

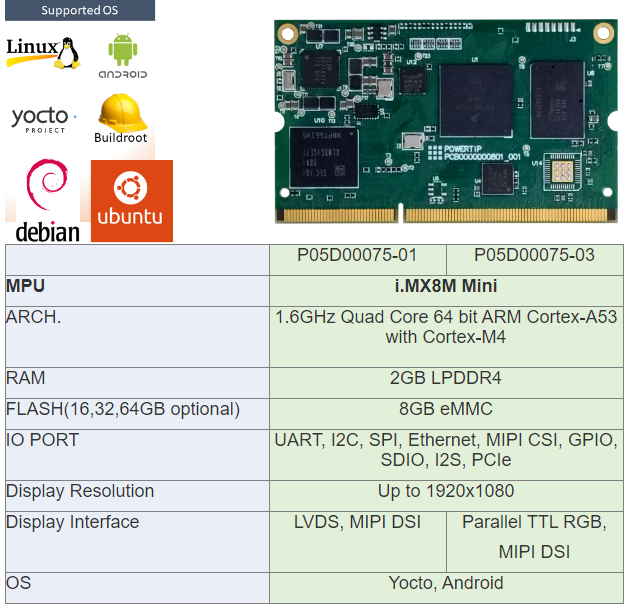

1) System on Module (SoM)

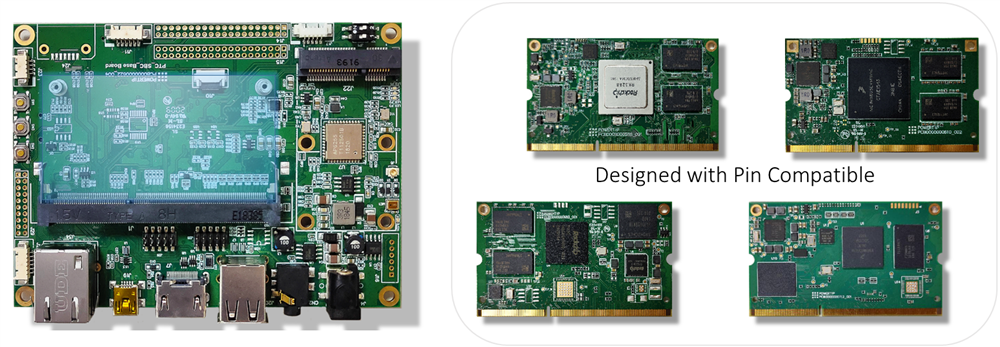

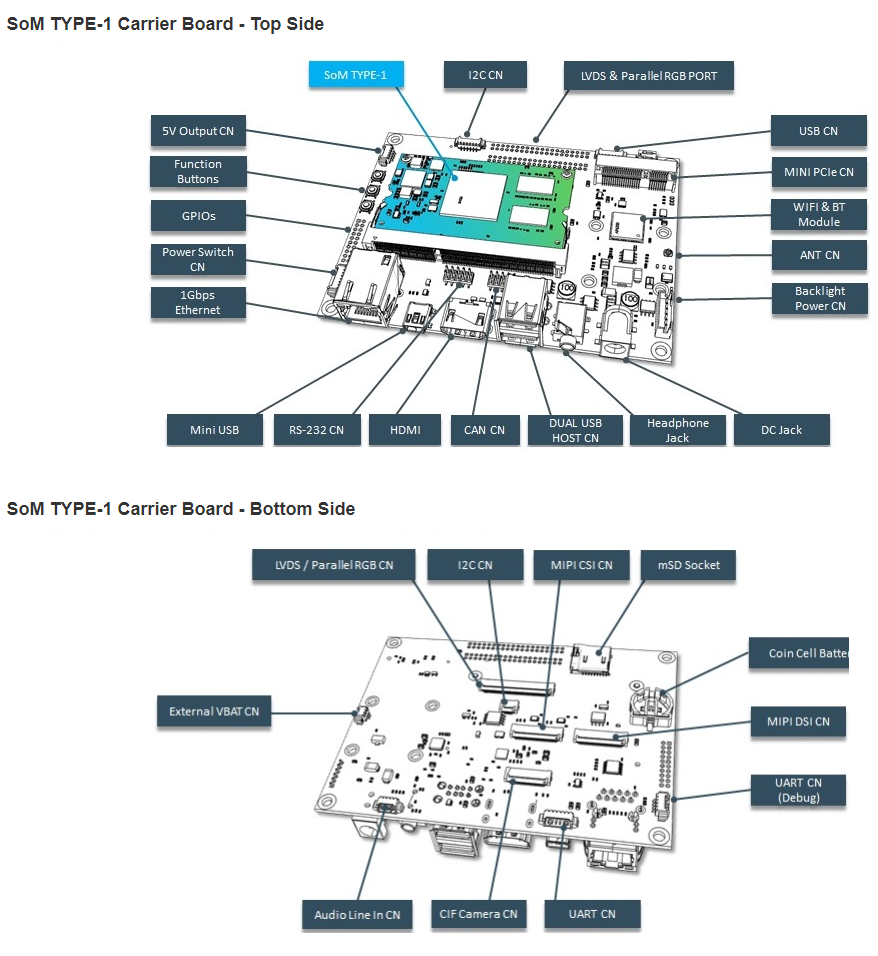

2) Multi-interface CARRIER BOARD

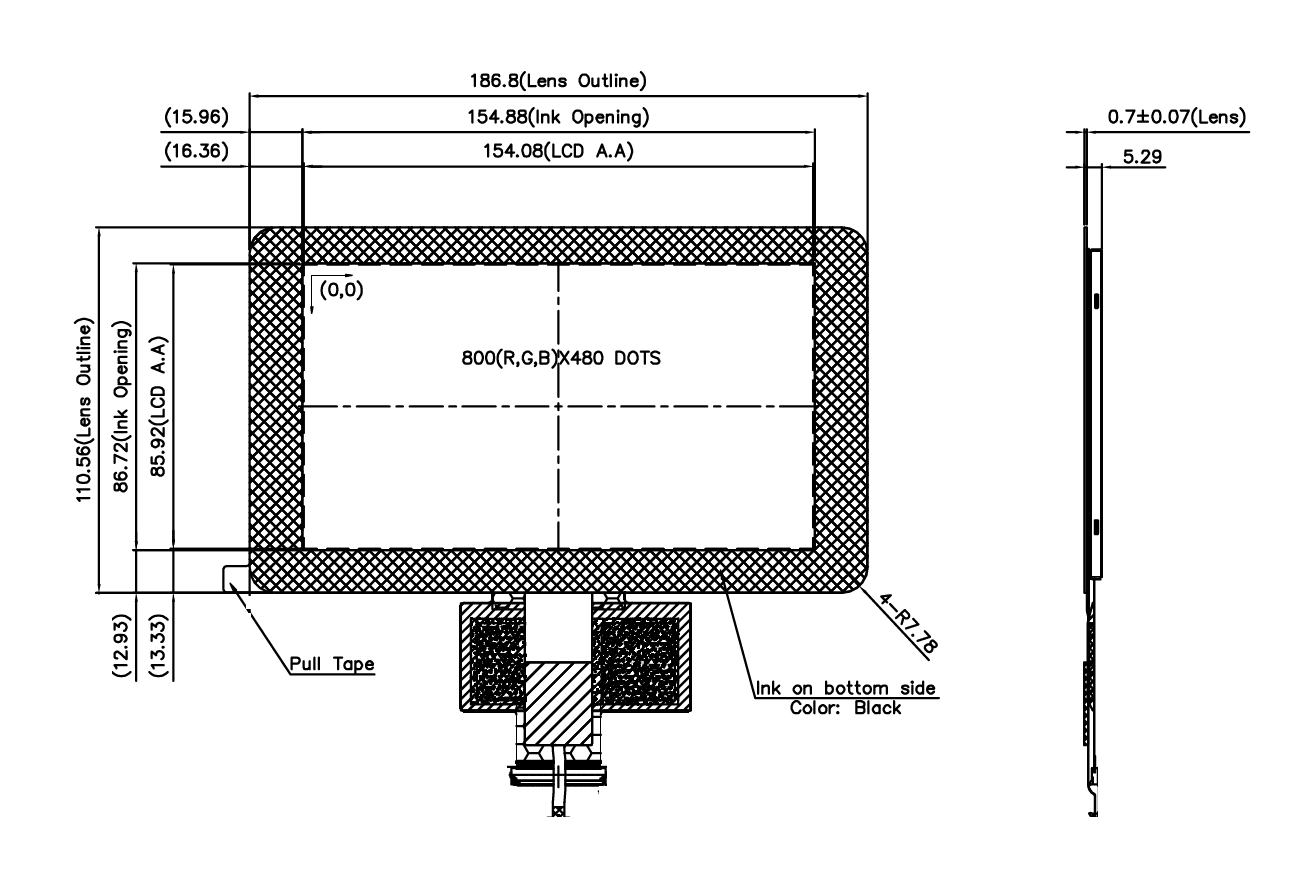

3) 7" Industrial grade TFT-LCD High Brightness panel
4) Connection accessories
Contact us at firstname.lastname@example.org to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
