NG19264BN001ER

Graphic LCD 3.3" 192x64, B/L white, STN blue neg, 6800, COB/SMT, NEG, 12H, Standard Temp., W/ Frame

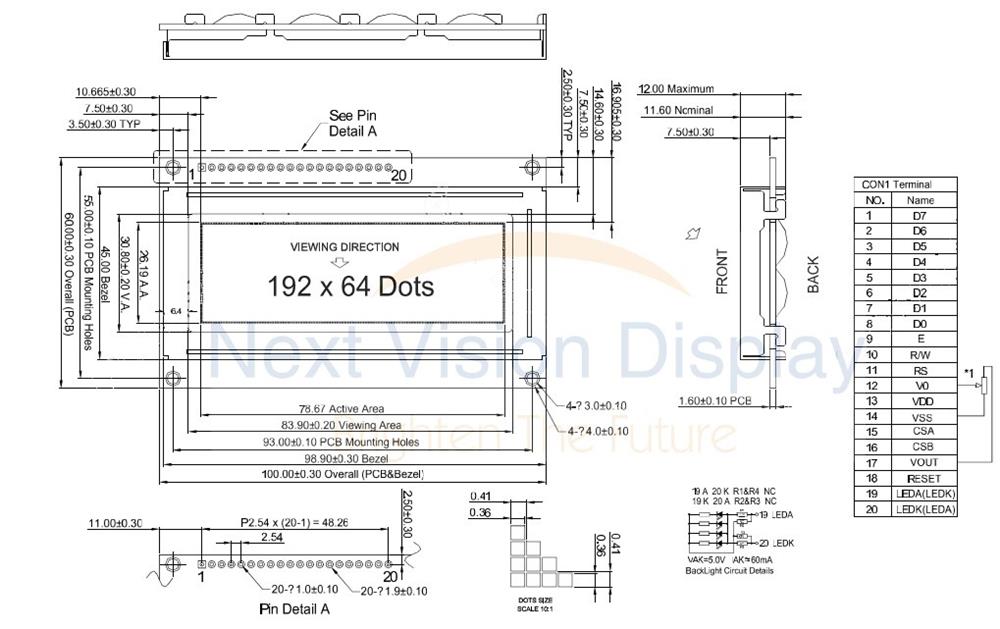

DRAWING

SPECIFICATIONS

General Specifications

ITEM	STANDARD VALUE	UNIT
Dot Matrix	192 x 64 Dots	--
Display Connector	Pin Header, 20 pins	--
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Touch Panel Optional	N/A	--
Font Chip Optional	N/A	--

Mechanical Specification

ITEM	STANDARD VALUE	UNIT
Outline Dimension	100.0(W) × 60.0(H) × 12.0(T) (MAX)	mm
Visual Area	83.9(W) × 30.8(H)	mm
Active Area	78.67(W) × 26.19(H)	mm
(Dot Size	0.36x0.36	mm
Dot Pitch	0.41x0.41	mm
Net Weight	74.0 ± 15% grams (typical)	g

Electrical Specification

ITEM	STANDARD VALUE	UNIT
IC Package	COB	--
Controller	S6A0107 or Equivalent	--
Interface	6800 8-bit Parallel	--

Optical Specification

ITEM	STANDARD VALUE	UNIT
LCD Type	STN NEGATIVE, BLUE	--
Backlight Color	LED WHITE	--
Viewing Direction	12:00	Clock
LCD Duty	1/64	Duty
LCD Bias	1/9	Bias

SKU: NG19264BN001ER

Brand: Next Vision Display

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

Price

€24.20

€19.40

€18.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€24.20 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

General Specifications

ITEM	STANDARD VALUE	UNIT
Dot Matrix	192 x 64 Dots	--
Display Connector	Pin Header, 20 pins	--
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Touch Panel Optional	N/A	--
Font Chip Optional	N/A	--

Mechanical Specification

ITEM	STANDARD VALUE	UNIT
Outline Dimension	100.0(W) × 60.0(H) × 12.0(T) (MAX)	mm
Visual Area	83.9(W) × 30.8(H)	mm
Active Area	78.67(W) × 26.19(H)	mm
(Dot Size	0.36x0.36	mm
Dot Pitch	0.41x0.41	mm
Net Weight	74.0 ± 15% grams (typical)	g

Electrical Specification

ITEM	STANDARD VALUE	UNIT
IC Package	COB	--
Controller	S6A0107 or Equivalent	--
Interface	6800 8-bit Parallel	--

Optical Specification

ITEM	STANDARD VALUE	UNIT
LCD Type	STN NEGATIVE, BLUE	--
Backlight Color	LED WHITE	--
Viewing Direction	12:00	Clock
LCD Duty	1/64	Duty
LCD Bias	1/9	Bias

Products specifications

Brand	Next Vision Display
Size	3.3"
Resolution	192x32
Active Area (mm)	78.67x26.19
Dot Size	0.36x0.36
B/L color, LCD type	B/L white, STN blue neg
Power supply	5V
Display Interface	6800
Display IC	S6A0107
Constructive Structure	COB
View Angle	12H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
