NT101-R001DW

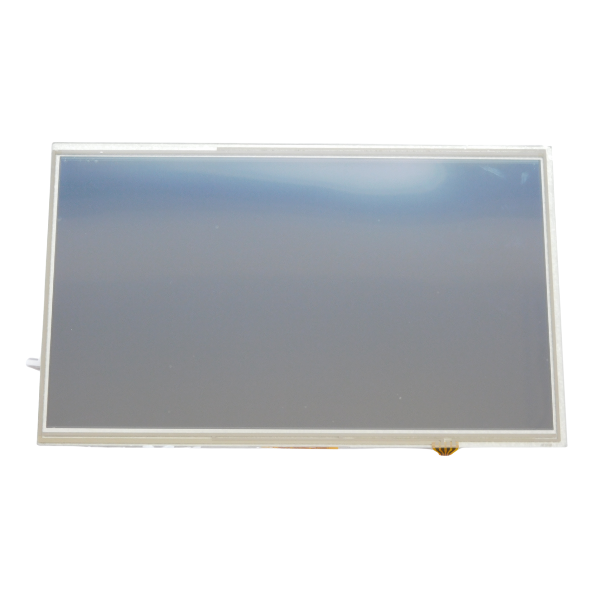

Picture of NT101-R001DW Picture of NT101-R001DW
TFT 10.1" 1024x600 LCD Panel, Interface RGB, 150cd/m², Wide View Angle (IPS), Resistive Touch Panel

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 222.72(W)*125.28(H)
Driver IC ILI6150&ILI5120
Luminance 150cd/m²
LED Numbers 42 LEDS
Interface RGB_24bit 50PIN_0.5mm



Electrical Characteristics

Digital Supply Voltage 3.3V(Typ.)
Voltage for LED Backlight 9.9V(Typ.)
Current for LED Backlight 280mA
LED Life-Time 30000 Hr



Optical Characteristics

Contrast Ratio 800:1
Color Gamut 53%
Color Temperature 10300K
Uniformity(with L/G) 80%



Touch Parameters Specification

Feature Description
Type RTP (Resistive touch panel)
Structure ITO Film + ITO Glass + FPR
Outline Size (mm) 235.0(L)*143.0(W)*1.5(T)
Active Area (mm) 223.1(L)*125.7(W)
Life Dot>1,000,000; Stroke>100,00
Surface Hardness 3H
Light Transmittance 78%±3
Operating Temperature -20~70°C
Storage Temperature -30~80°C

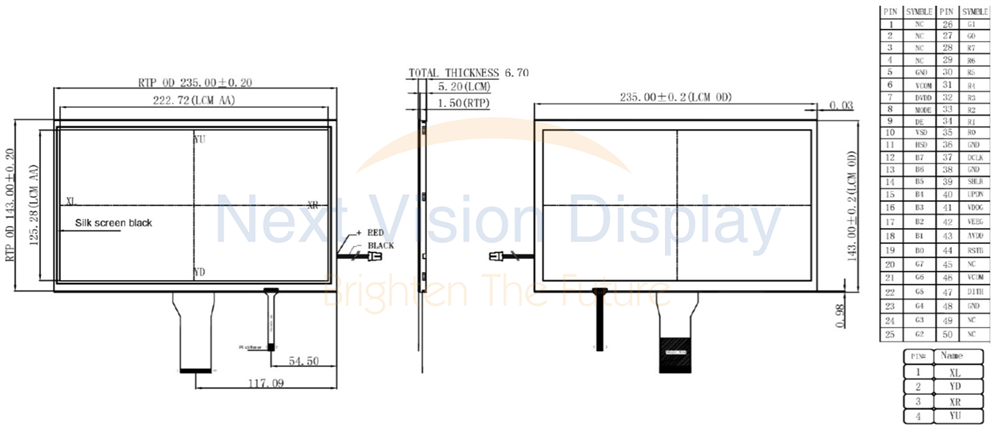

DRAWING

SKU: NT101-R001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€54.30
€48.40
€44.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€54.30 excl tax

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 222.72(W)*125.28(H)
Driver IC ILI6150&ILI5120
Luminance 150cd/m²
LED Numbers 42 LEDS
Interface RGB_24bit 50PIN_0.5mm



Electrical Characteristics

Digital Supply Voltage 3.3V(Typ.)
Voltage for LED Backlight 9.9V(Typ.)
Current for LED Backlight 280mA
LED Life-Time 30000 Hr



Optical Characteristics

Contrast Ratio 800:1
Color Gamut 53%
Color Temperature 10300K
Uniformity(with L/G) 80%



Touch Parameters Specification

Feature Description
Type RTP (Resistive touch panel)
Structure ITO Film + ITO Glass + FPR
Outline Size (mm) 235.0(L)*143.0(W)*1.5(T)
Active Area (mm) 223.1(L)*125.7(W)
Life Dot>1,000,000; Stroke>100,00
Surface Hardness 3H
Light Transmittance 78%±3
Operating Temperature -20~70°C
Storage Temperature -30~80°C





DRAWING

Products specifications
Brand Next Vision Display
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
