RYBG210

2.4GHz Bluetooth 5.1 module, High power long range, 11*8.3*2.2mm
  • Bluetooth V5.1 with Bluetooth Low Energy
  • SILABS EFR32BG21A020F512IM32-B 32-bit ARM® Cortex®-M33 core industry-standard chip
  • Can connect 8 Host-Client RYBG21x modules at the same time.
  • Metal cover against EMI interference
  • Control easily by AT commands
  • Standard Generic Attribute Profile (GATT)

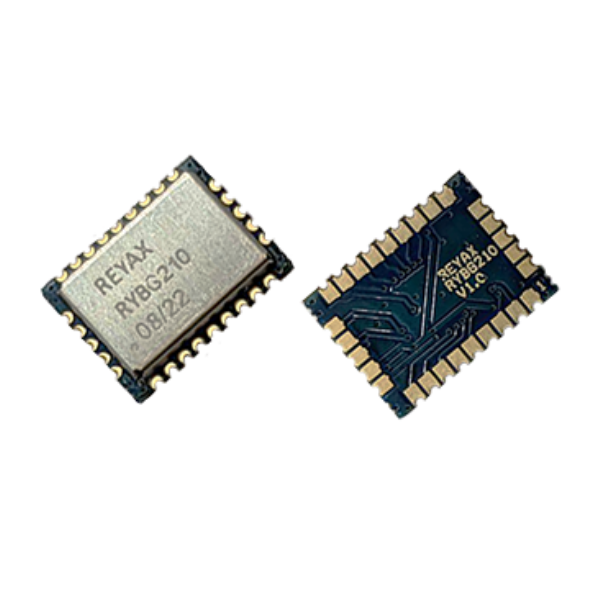

The RYBG210 is a Bluetooth V5.1 Low Energy Module.

By using the AT command which is developed by REYAX, your products could be fast and easily connected with the smartphones and all kinds of Bluetooth devices.



Item Min. Typical Max. Unit Condition
Operation Voltage 1.71 3.3 3.8 V VDD
RF Output Power   18.5 20 dBm
Active Current   TBD 200 mA
Advertising Average Current   TBD   mA
Standby Current   TBD   uA
Wake Up Time   TBD   ms
UART Baud Rate   9600 115200 bps
RF Frequency Range 2400   2483.5 MHz
Flash erase cycles   10   K Cycles
Operating Temperature -40 25 +85 ˚C
Antenna         External Antenna
Weight   0.8   g

SKU: RYBG210
Brand: Reyax
Available: No
Price Breaks
Quantity
1+
5+
Price
€10.40
€10.05

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.40 excl tax
