TST0005R7E4111XXXX01

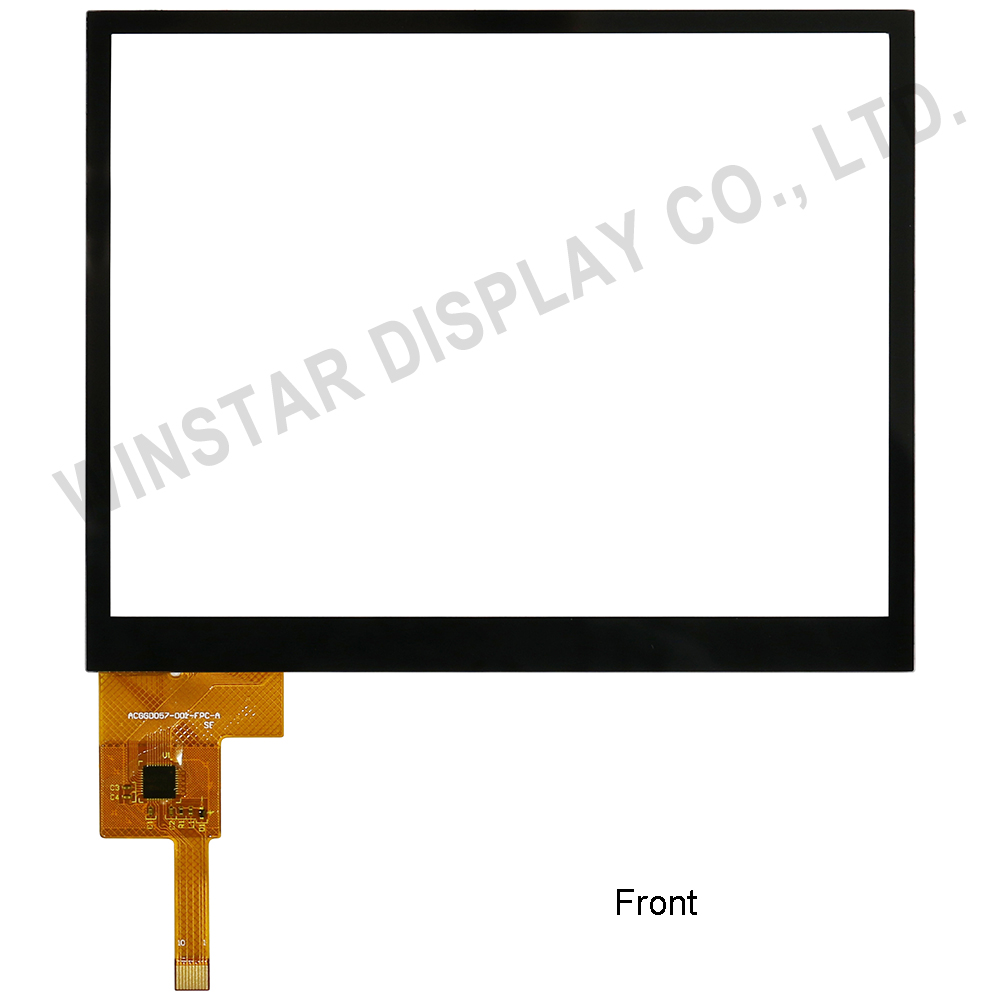

Picture of TST0005R7E4111XXXX01 Picture of TST0005R7E4111XXXX01
Capacitive (GG) Touch panel 5.7", O.D. 125.70x101.25mm, I2C interface (FT5426 IC), Glass-Glass structure, FPC per ZIF Connector (suitable for B/C/D/E/F/M/P/Q families)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

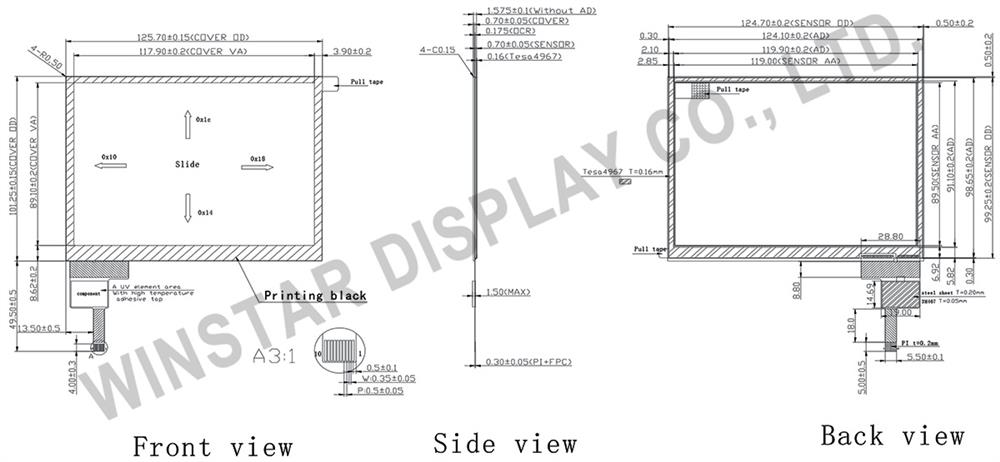

DRAWING

5.7 inch Touch Screen, 5.7" Touch Panel - Winstar Display



SPECIFICATIONS



General Specification

NO.ItemSpecificationsUnit
1 Touch Panel Size 5.7(Diagonal) inch
2 Structure G+G
3 View Area 117.90(H)x89.10(V) mm
4 Outer Dimension 125.70(H)x101.25(V)x1.575(D) mm



Feature

NO.ItemSpecifications
1 Type Projected Capacitive Touch Panel (PCAP)
2 Input Mode Finger
3 Connector COF-FPC



Interface Pin Function

NO.SymbolI/ODescription
1 VSS --- Ground
2 VDD --- Power supply
3 SCL I/O I2C clock signal
4 NC --- No Connection
5 SDA I/O I2C data signal
6 NC --- No Connection
7 RST I External reset signal, active low
8 NC --- No Connection
9 INT O Interrupt signal, active low, asserted to request
Host start a new transcation
10 VSS --- Ground



IC Specification

NO.SymbolDescription
1 Driver IC FT5426
2 Detect Points 5
3 Interface I2C
4 Power Supply 2.8V
SKU: TST0005R7E4111XXXX01
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€27.50
€22.00
€20.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€27.50 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DRAWING

5.7 inch Touch Screen, 5.7" Touch Panel - Winstar Display



SPECIFICATIONS



General Specification

NO.ItemSpecificationsUnit
1 Touch Panel Size 5.7(Diagonal) inch
2 Structure G+G
3 View Area 117.90(H)x89.10(V) mm
4 Outer Dimension 125.70(H)x101.25(V)x1.575(D) mm



Feature

NO.ItemSpecifications
1 Type Projected Capacitive Touch Panel (PCAP)
2 Input Mode Finger
3 Connector COF-FPC



Interface Pin Function

NO.SymbolI/ODescription
1 VSS --- Ground
2 VDD --- Power supply
3 SCL I/O I2C clock signal
4 NC --- No Connection
5 SDA I/O I2C data signal
6 NC --- No Connection
7 RST I External reset signal, active low
8 NC --- No Connection
9 INT O Interrupt signal, active low, asserted to request
Host start a new transcation
10 VSS --- Ground



IC Specification

NO.SymbolDescription
1 Driver IC FT5426
2 Detect Points 5
3 Interface I2C
4 Power Supply 2.8V
Products specifications
Brand Winstar
Size 5.7"
Active Area (mm) 119.00x89.50
Display Interface I2C
Constructive Structure GG
Display Connection FPC for ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Active Area (mm) 119.00x89.50
Display Interface I2C
Constructive Structure GG
Display Connection FPC for ZIF Connector
Pin Nr. 10
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
