WEG010016CBPP5N00000

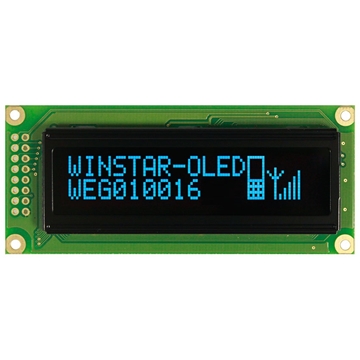

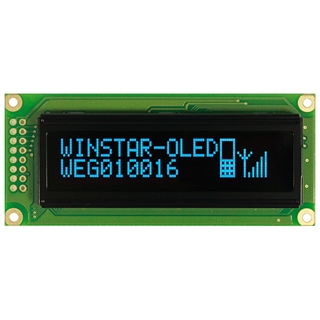

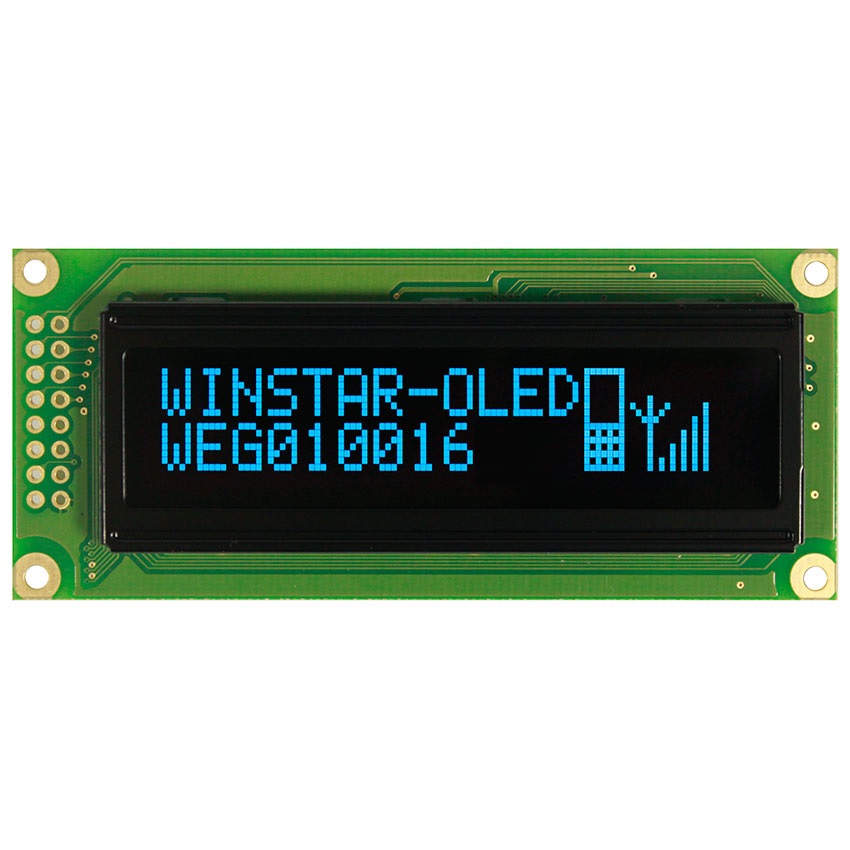

PMOLED 2.4" Graphic 100x16, Blue color, COB, 5V, Interface 6800, WS0010 IC, Frame, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

Winstar OLED module which is made of 100 x 16 dots individual mono color. These 100x16 OLED display modules are having diagonal size 2.4” which are lightweight, low power consumption and have very fast response time. There are different interfaces optional; it is default 6800, available options 8080 and SPI. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.

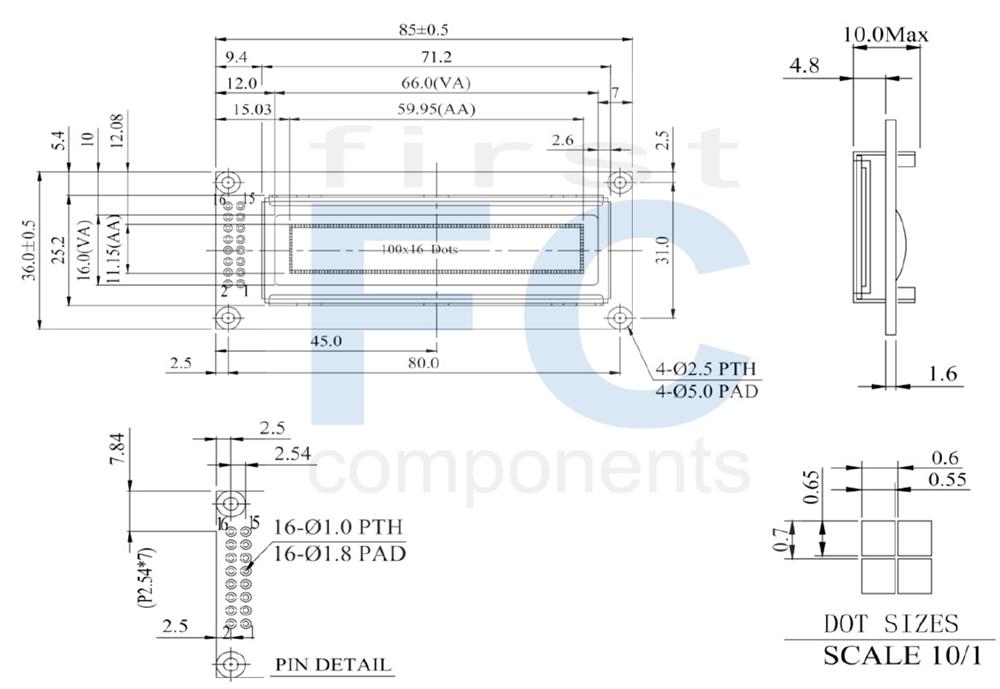

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	85.0 × 36.0	mm
Viewing area	66.0 × 16.0	mm
Active area	59.95 × 11.15	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEG10016B#C00-FC

Brand: Winstar

Available: Yes
