WEG20016L#AP5N00100-FC

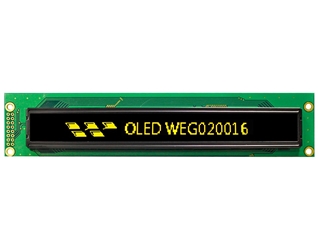

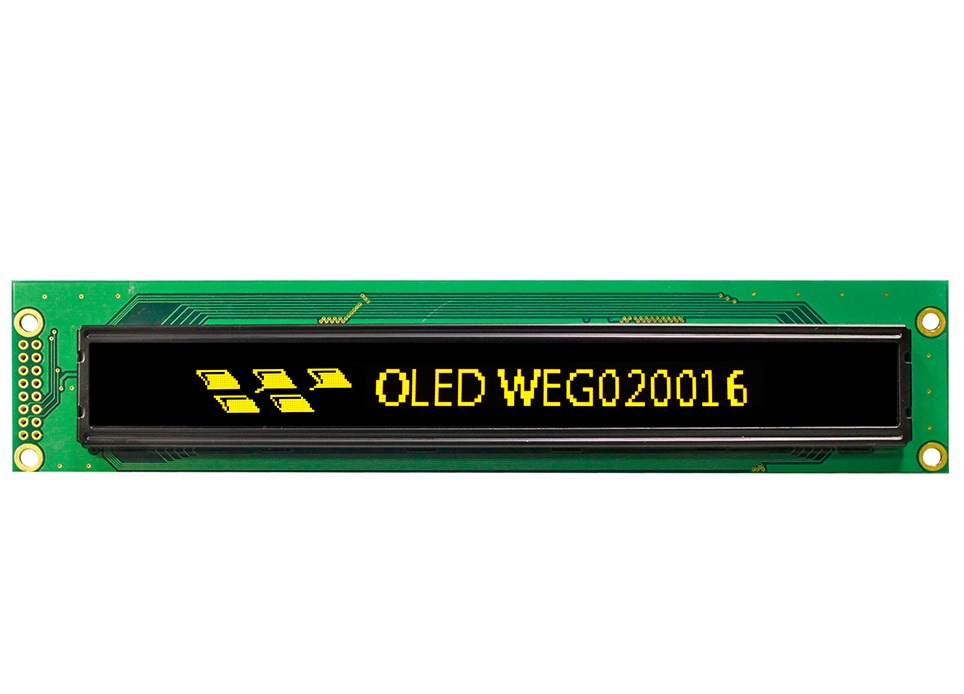

PMOLED 4.9'' Graphic 200x16, Yellow color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG20016L#A00-FC in 'Related Product' section on the bottom page

Winstar OLED standard items with the same outline size, VA size and pin out as Winstar STN LCD standard item of WH4002A. It is easy for the customers to upgrade your applications from LCD modules to OLED modules. It is the equivalent Graphic type of WEH4002x#A00-FC. If your applications need Graphic mode to display the contents, you can choose it which featured with display format of 200x16 dots.



DRAWING

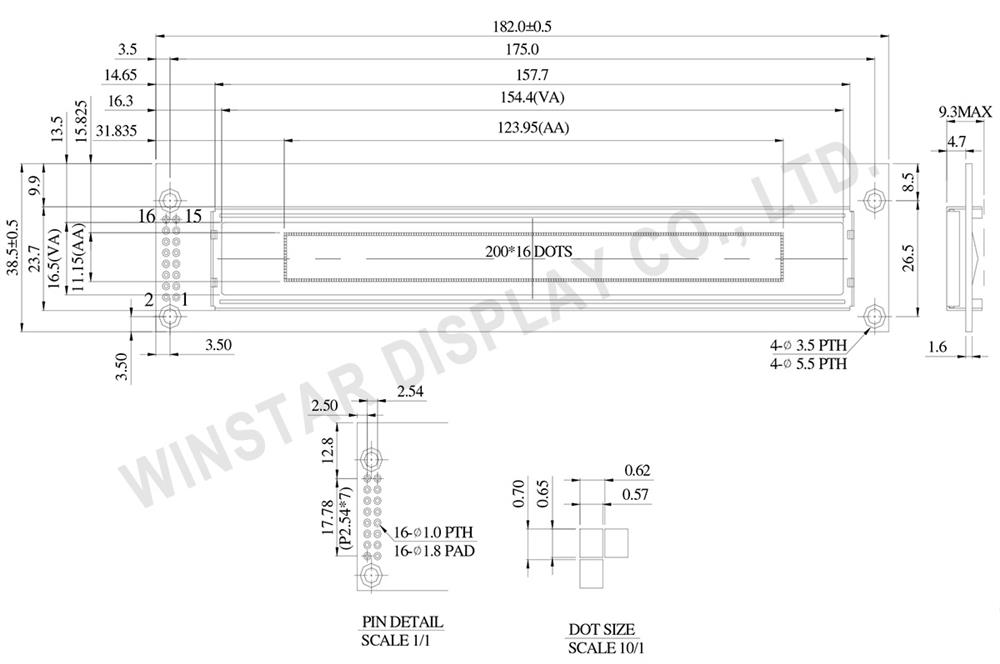

WEG020016A - 4.9 inch OLED Graphic Display 20x16 Drawing

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 CS1~CS2 Chip select pin



Mechanical Data

ItemDimensionUnit
Module dimension 182.0 × 38.5 mm
Viewing area 154.4 × 16.5 mm
Active area 123.95 × 11.15 mm
Dot pitch 0.62 × 0.70 mm
Dot size 0.57 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 4.8 5.0 5.3 V



SKU: WEG20016L#AP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€35.40
€28.30
€27.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€35.40 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG20016L#A00-FC in 'Related Product' section on the bottom page

Winstar OLED standard items with the same outline size, VA size and pin out as Winstar STN LCD standard item of WH4002A. It is easy for the customers to upgrade your applications from LCD modules to OLED modules. It is the equivalent Graphic type of WEH4002x#A00-FC. If your applications need Graphic mode to display the contents, you can choose it which featured with display format of 200x16 dots.



DRAWING

WEG020016A - 4.9 inch OLED Graphic Display 20x16 Drawing

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 CS1~CS2 Chip select pin



Mechanical Data

ItemDimensionUnit
Module dimension 182.0 × 38.5 mm
Viewing area 154.4 × 16.5 mm
Active area 123.95 × 11.15 mm
Dot pitch 0.62 × 0.70 mm
Dot size 0.57 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 4.8 5.0 5.3 V



Products specifications
Brand Winstar
Size 4.9"
Resolution 200x16
Active Area (mm) 123.95x11.15
Dot Size 0.57x0.65
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.9"
Resolution 200x16
Active Area (mm) 123.95x11.15
Dot Size 0.57x0.65
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
;
