WF096-80160FD#0P2-FC

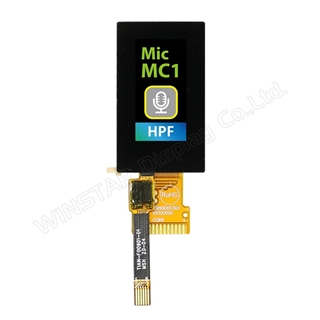

TFT 0.96'' 80x160, Portrait, LCD + IC Controller, Interface MCU (SPI) IC ST7735S, 400cd/m², Capacitive touch panel I2C interface (GF with optical bonding)

DESCRIPTION

0.96 inch IPS TFT-LCD display featured with Optical bonding (OCA) capacitive touch screen on module, made of resolution 80x160 pixels. This 0.96 inch Mini TFT LCD Display is portrait mode with IPS (In-Plane Switching) Panel which having the feature of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and the capacitive touch screen is adopted optical bonding technology which is a silicone Optical Clear Adhesive (OCA) process that fills air gaps between components in LCD displays, that having the advantage of increases the ruggedness of the display and improving durability to having better able to resist scratches, fluids, stains and dirt. This TFT model is built in with FT3267 touch panel IC on module, that supports I2C interface, and one detect point for capacitive touch screen.

This 0.96" TFT module is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 3.0V to 3.6V, with brightness 400 nits (typical value), contrast ratio 800:1.This module is ideal for wearable devices, medical devices, etc. Operating temperature from -20℃ to +70℃; storage temperature range from -30℃ to +80℃.

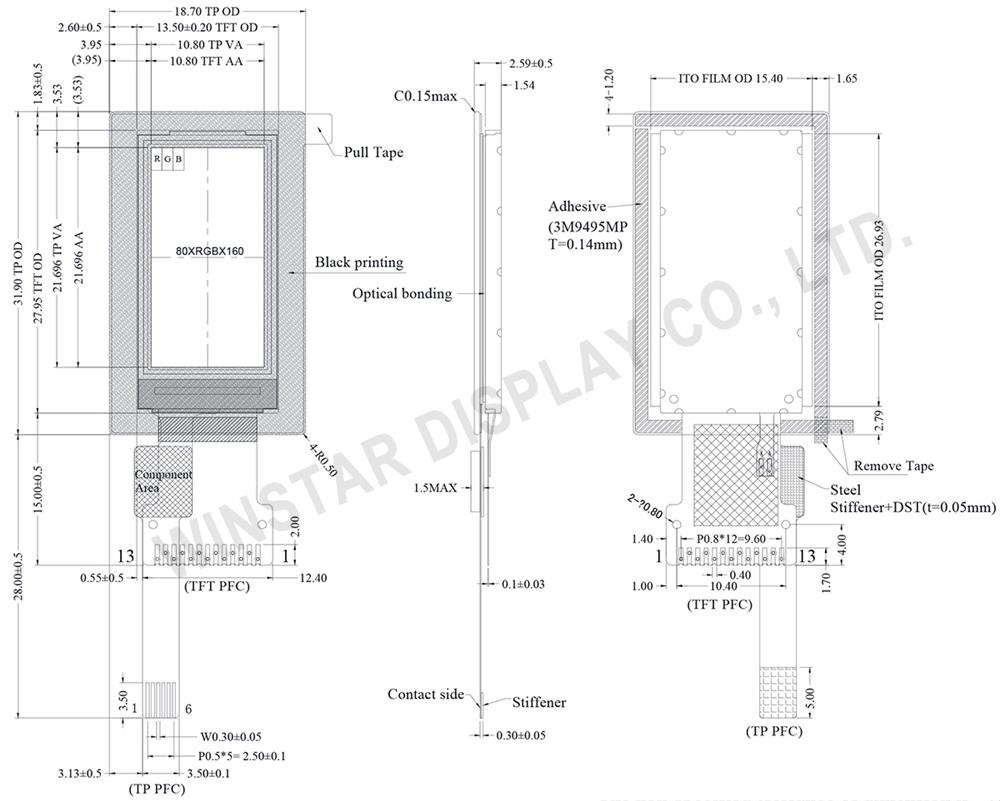

DRAWING

0.96 inch 80x160 TFT LCD Display with Projected Capacitive Touch Panel - WF0096ATYAA3DNF10



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 SPI4W SPI4W='0' , 3-wire SPI.
SPI4W='1' , 4-wire SPI.
2 NC No connection
3 SDA Serial interface data
4 SCL Serial interface clock
5 RS Data/command selection pin (4-wire SPI use)
6 RES Reset pin (low active)
7 CS Chip selection pin (low active)
8 GND Ground
9 NC No connection
10 VCC Power supply
11 LEDK Back light cathode
12 LEDA Back light anode
13 GND Ground



PCAP PIN Definition

PinSymbolFunction
1 VDDT Power supply
2 SCL IIC clock signal. Must be pulled high
3 SDA IIC data signal. Must be pulled high.
4 INT External interrupt to the host
5 RESET External Reset. Low is active
6 VSS Power ground.



General Specifications

ItemDimensionUnit
Size 0.96 inch
Dot Matrix 80 × RGB × 160(TFT) dots
Module dimension 18.7(W) × 31.9(H) × 2.59(D) mm
Active area 10.8 × 21.696 mm
Dot pitch 0.135 × 0.1356 mm
LCD type TFT, Normally black, Transmissive
Viewing Angle 80/80/80/80(IPS)
Aspect Ratio 1:2
IC ST7735S or equivalent
TFT Interface SPI
Backlight Type LED, Normally White
PCAP Interface I2C
PCAP IC FT3267 or equivalent
PCAP FW Version V06
Touch Panel Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

Operating conditions
ItemSymbolMinTypMaxUnit
Supply Voltage VCC 3.0 3.3 3.6 V
Supply LCM current ICC 2 3 mA
Supply PCAP VDDT 2.8 3.3 V
I VDDT 2 3 mA

LED driving conditions
ParameterSymbolMin.Typ.Max.Unit
LED current ILED 20 mA
LED voltage VLED 2.8 3.0 3.3 V
LED Life Time   50000 Hr


SKU: WF096-80160FD#0P2-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€17.90
€14.40
€12.70
€12.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€17.90 excl tax
