WF101FSYFPLHT0#000

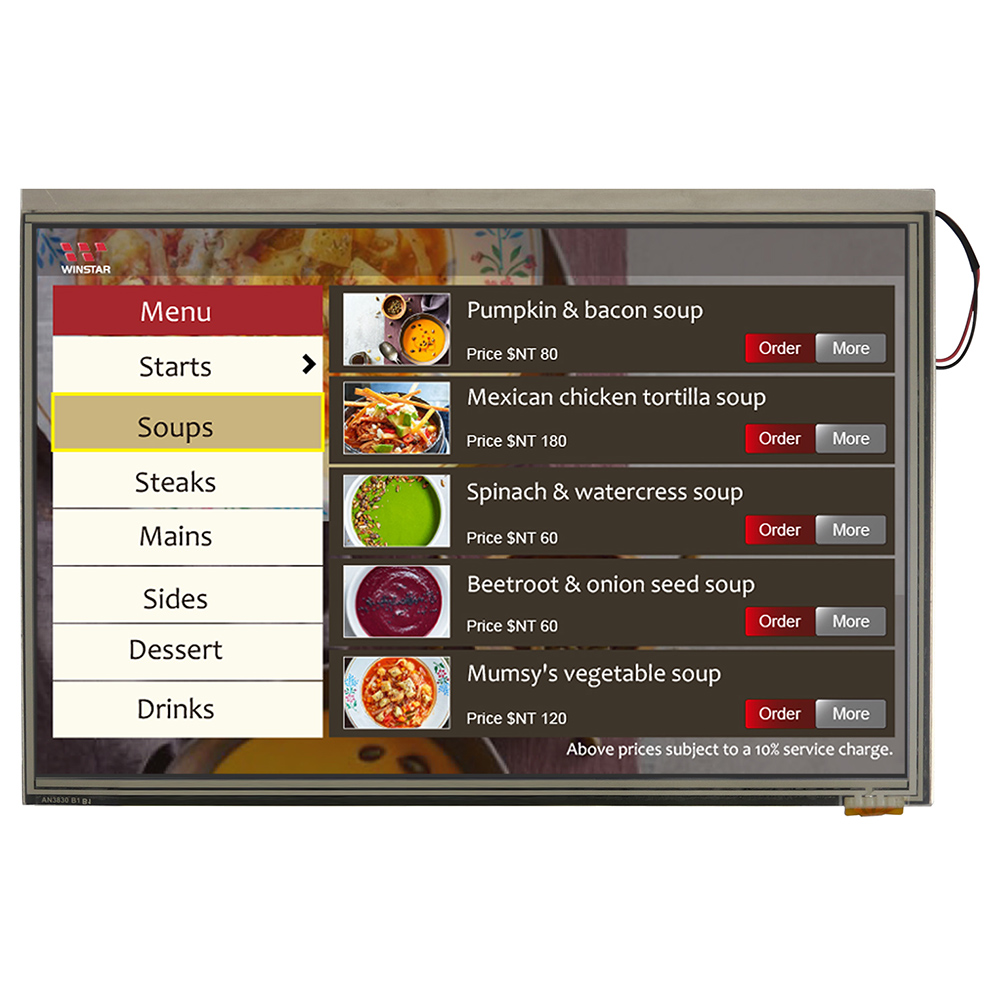

Picture of WF101FSYFPLHT0#000 Picture of WF101FSYFPLHT0#000
TFT 10.1" 1280x800, HDMI Interface, IC TFP401, High Brightness 750cd/m², Wide View Angle (IPS), Resistive touch panel, Jack 12V (remov. res)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



10.1 inch high brightness version TFT display with incredibly high resolution and great angle-visibility. This 10.1” TFT display is having IPS TFT panel which supports HDMI signal interface output, it's made of high resolution WXGA 1280x800. This 10.1" TFT comes with a control board which supports HDMI signal interface signal input. It has a USB interface Resistive Touch screen overlay on TFT panel. Also Capacitive Touch Panel is available. Winstar has  a connector part no. WWHDMI-00# for option, the customers can use it to connect the module with your Raspberry Pi directly.

You can simply use this TFT display with your Raspberry Pi, or also you can use is as computer display with any device which supports HDMI signal output. This 10.1" TFT model comes in 1280x800 resolutions that would be good for embedded computing usage. Please note, this part no. does not include an HDMI connector or USB cable.

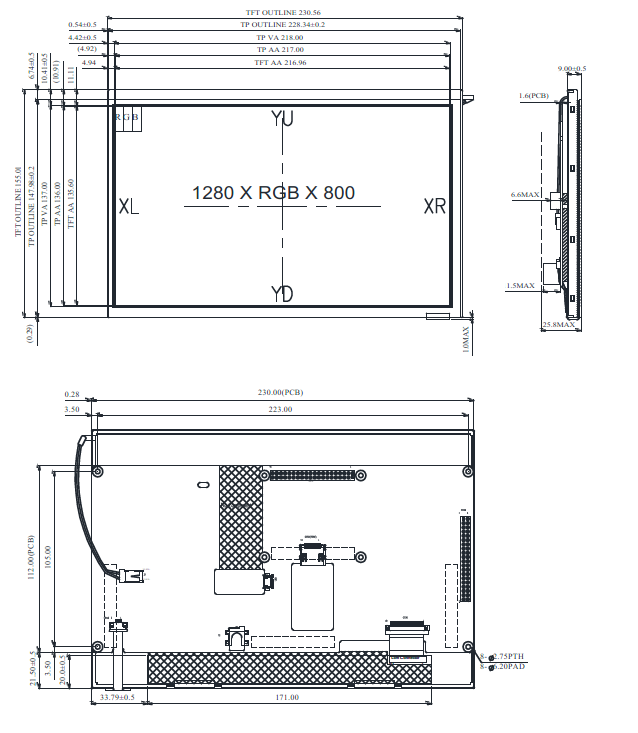

DRAWING

SPECIFICATIONS


Interface

HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect


3. USB

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground

4. POWER-JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC - No connection



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 230.56 × 155.01 × 25.8 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED, Normally White
Aspect Ratio 16:9
Electrical Interface (Logic) Support HDMI Connector (Only DVI Signal)
RTP Interface USB
Touch Panel Resistive touch panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +70 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 11.5 12 12.5 V
Supply Current For LCM IDD － － 1 2 A
SKU: WF101-1280800FH#0SP1C-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€156.20
€148.50
€135.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€156.20 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



10.1 inch high brightness version TFT display with incredibly high resolution and great angle-visibility. This 10.1” TFT display is having IPS TFT panel which supports HDMI signal interface output, it's made of high resolution WXGA 1280x800. This 10.1" TFT comes with a control board which supports HDMI signal interface signal input. It has a USB interface Resistive Touch screen overlay on TFT panel. Also Capacitive Touch Panel is available. Winstar has  a connector part no. WWHDMI-00# for option, the customers can use it to connect the module with your Raspberry Pi directly.

You can simply use this TFT display with your Raspberry Pi, or also you can use is as computer display with any device which supports HDMI signal output. This 10.1" TFT model comes in 1280x800 resolutions that would be good for embedded computing usage. Please note, this part no. does not include an HDMI connector or USB cable.



DRAWING

SPECIFICATIONS


Interface

HDMI

Pin No.SymbolI/OFunction
1 Rx2+ I +LVDS Differential Data Input
2 GND P Ground
3 Rx2- I -LVDS Differential Data Input
4 Rx1+ I +LVDS Differential Data Input
5 GND P Ground
6 Rx1- I -LVDS Differential Data Input
7 Rx0+ I +LVDS Differential Data Input
8 GND P Ground
9 Rx0- I -LVDS Differential Data Input
10 RxC+ I +LVDS Differential Clock Input
11 GND P Ground
12 RxC- I -LVDS Differential Clock Input
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 5V P Power Supply
19 Detect I/O Hot plug detect


3. USB

PinSymbolFunction
1 5V Power Supply (5V)
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground

4. POWER-JACK

Pin No.SymbolI/OFunction
1 5V P Power Supply (5V)
2 GND P Ground
3 NC - No connection



General Specifications

ItemDimensionUnit
Screen Diagonal 10.1 inch
Number of Pixels 1280 × 3(RGB) × 800 dots
Module dimension 230.56 × 155.01 × 25.8 mm
Active area 216.96 (H) × 135.6(V) mm
Pixel pitch 0.1695 × 0.1695 mm
Display Mode Normally Black
Pixel Arrangement R.G.B. Vertical Stripe
Backlight Type LED, Normally White
Aspect Ratio 16:9
Electrical Interface (Logic) Support HDMI Connector (Only DVI Signal)
RTP Interface USB
Touch Panel Resistive touch panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -20 － +70 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 11.5 12 12.5 V
Supply Current For LCM IDD － － 1 2 A
Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface HDMI
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1280x800
Active Area (mm) 216.96x135.60
Color Full Color
Display Interface HDMI
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Not Preferred
