WF150-1024768AL#0P0-FC

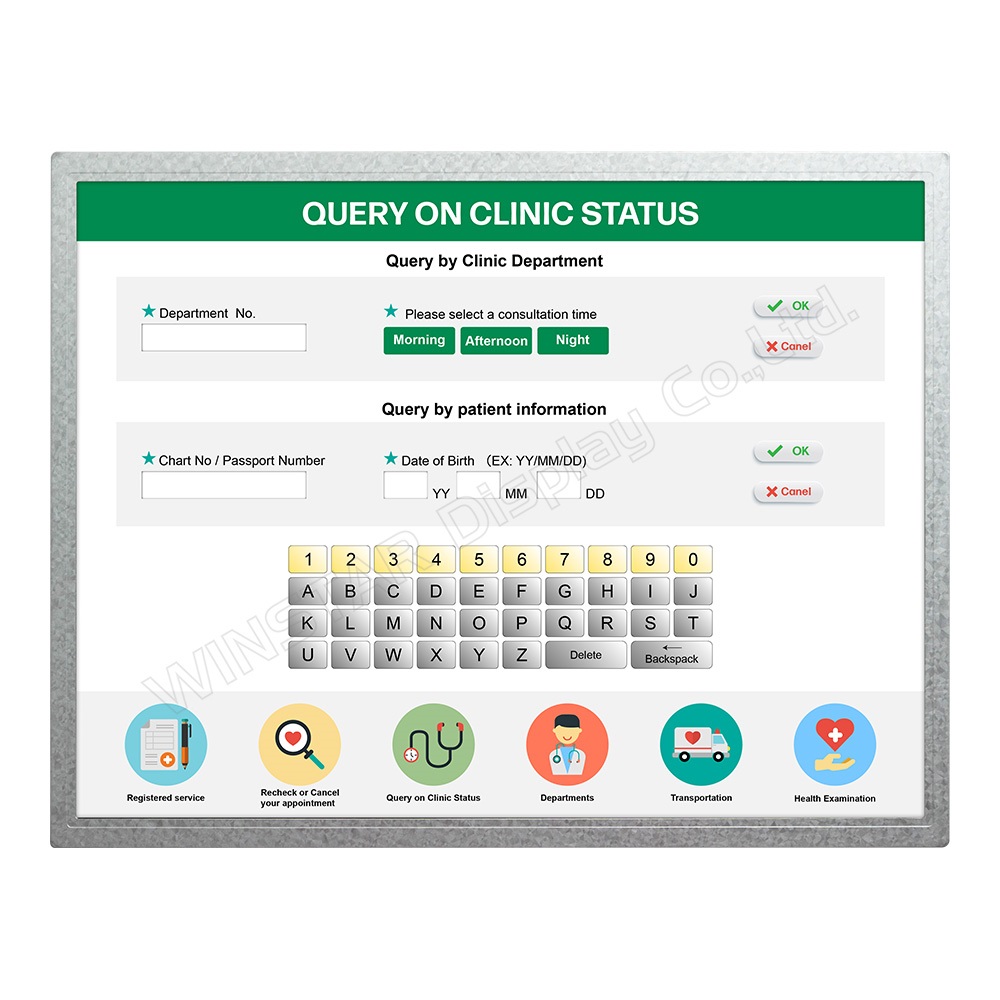

TFT 15" 1024x768 LCD Panel, Interface LVDS, 300cd/m², Wide view angle (IPS), No touch

DESCRIPTION

WF150-1024768AL#0P0-FC is a 15"" IPS TFT LCD Display made of resolution 1024x768 (XGA) pixels. This TFT module adopted IPS technology which has the advantage of a wider viewing angle of Left:88 / Right:88 / Up:88 / Down:88 degrees. it supports LVDS interface, with brightness of 300 nits (typical value), contrast ratio of 2000:1 (typical value), anti-glare surface glass panel.

The power supply voltage for LCM (VCC) of WF150-1024768AL#0P0-FC is from 3.0V to 3.6V (typical 3.3V). It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +70℃.

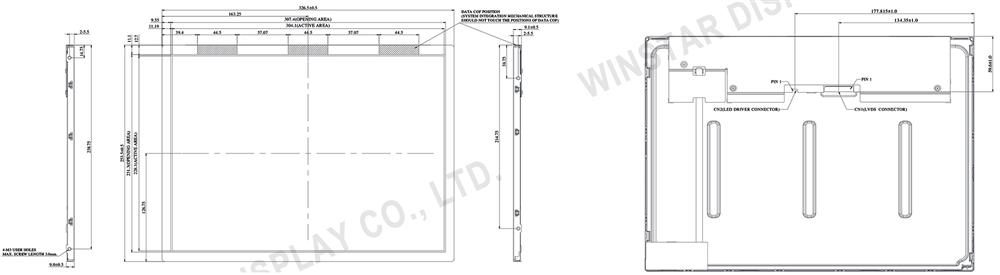

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.	Symbol	Function	Polarity
1	VCC	Power Supply +3.3V(typical)
2	VCC	Power Supply +3.3V(typical)
3	NC	No Conncetion (Reserve for INX test)
4	LR/UD	Reverse Scan Control H or NC = Normal Mode. L = Horizonta/ Vertical Reverse Scan.
5	RX0-	LVDS Differential Data Input	Negative
6	RX0+	LVDS Differential Data Input	Positive
7	GND	Ground
8	RX1-	LVDS Differential Data Input	Negative
9	RX1+	LVDS Differential Data Input	Positive
10	NC	No Conncetion (Reserve for INX test)
11	RX2-	LVDS Differential Data Input	Negative
12	RX2+	LVDS Differential Data Input	Positive
13	GND	Ground
14	RXCLK-	LVDS Differential Data Input	Negative
15	RXCLK+	LVDS Differential Data Input	Positive
16	GND	Ground
17	RX3-	LVDS Differential Data Input	Negative
18	RX3+	LVDS Differential Data Input	Positive
19	NC	No Conncetion (Reserve for INX test)
20	SEL68	LVDS 6/8 bit select function control, High → 6bit Input Mode Low or NC→ 8bit Input Mode

General Specifications

Item	Dimension	Unit
Size	15	inch
Dot Matrix	1024 × RGB × 768 (TFT)	dots
Module dimension	326.5 × 253.5 × 9.1	mm
Active Area	304.1 × 228.1	mm
Dot pitch	0.297 × 0.297	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	88/88/88/88
Backlight Type	LED, Normally White
Interface	LVDS
Touch Panel	Without Touch Panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+70	℃

Electrical Characteristics

Parameter		Symbol	Value			Unit
Parameter		Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage		VCC	3.0	3.3	3.6	V
Ripple Voltage		VRP	-	-	100	mVp-p
Rush Current		IRUSH	-	-	(2.0)	A
Power Supply Current	White	lcc	-	(800)	(960)	mA
Power Supply Current	Black	lcc	-	(670)	(800)	mA
LVDS differential input voltage		Vid	200	-	600	mV
LVDS common input voltage		Vic	1.0	1.2	1.4	V
Differential Input Voltage for LVDS Receiver Threshold	“H” Level	VIH	-	-	100	mV
Differential Input Voltage for LVDS Receiver Threshold	“L” Level	VIL	-100	-	-	mV
Terminating Resistor		RT	-	100	-	Ohm
